Angled Circular M12 Connector 5 Pin IP67 Male
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Guangdong, China
Brand Name:
KRONZ
Certification:
CE
Model Number:
H1205MA-7 /H1205MA-9
Minimum Order Quantity:
50 pieces
Price:
Negotiable
Packaging Details:
Polybag packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
Product Specification
Description:
Field-wireable Assembly Connector
Standard:
IEC 61076-2-101
Coding:
A
Voltage:
250V
Cable Outlet:
Angled
External Cable Diameter:
4-6mm(PG7),6-8mm(PG9)
Ambient Temperature:
-25~+85℃
Rated Current:
4A
Highlight:
Angled M12 Connector 5 Pin
,Circular M12 Connector 5 Pin
,IP67 M12 Male Connector
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description
M12 Connector 5 Pin Angled Circular Connectors A Code Waterproof IP67 Male
Product Description
The M12 connector is a circular connector widely used in industrial automation, machinery, and robotics for connecting sensors, actuators, and fieldbus devices. Its design ensures reliable and robust connections in harsh environments, making it an essential component in many industrial applications.
Technical Data
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | PBT/PA, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

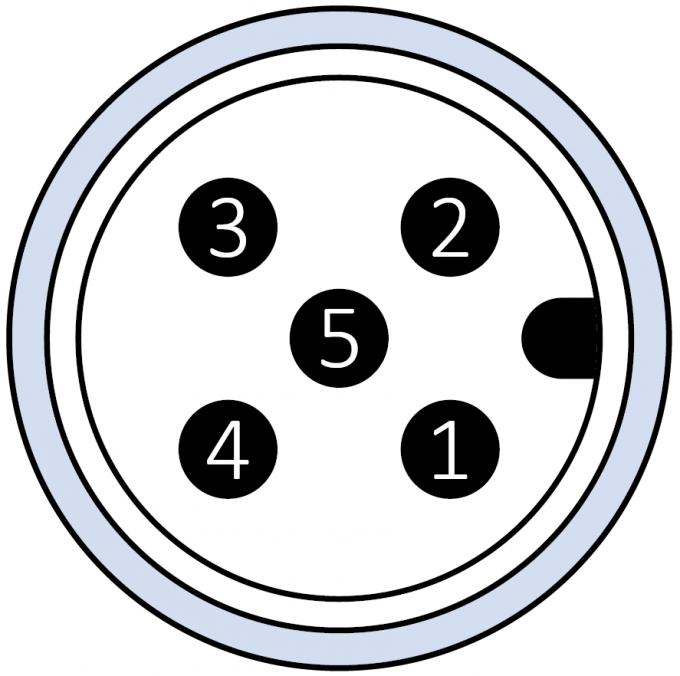

| Pin assignment | Connection method | Coding | Rated current | Voltage | Cable outlet | External cable diameter | Model No. |
 |
Screw connection
|
A | 4A | 60V | Angled | 4-6mm(PG7) | M1205MA-7 |
| 6-8mm(PG9) | M1205MA-9 |
