Field Wireable M8 Female Connector 4 Pin Straight

Brand Name:	KRONZ
Model Number:	H0804FV-0
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Product Name:

M8 Male Connector

Type:

Field-wireable Assembly Connectors

Material:

Brass,gold-plated

IP Rate:

IP67

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Connection Method:

Screw Connection

Pin:

Supply Ability:

100000 pieces per month

Highlight:

Straight M8 Female Connector

4 Pin M8 Female Connector

Straight M8 Field Wireable Connector

Product Description

M8 Metal Connector Female Field-wireable Assembly Straight 4 Pin Connectors

Product Description

M8 connectors are ypically made from high-strength materials such as nickel-plated brass, stainless steel, or robust plastics like polyamide.The threaded locking mechanism of M8 connectors ensures a secure connection that is easy to install and remove, reducing installation time and ensuring reliable performance.

Field Wireable M8 Female Connector 4 Pin Straight 0

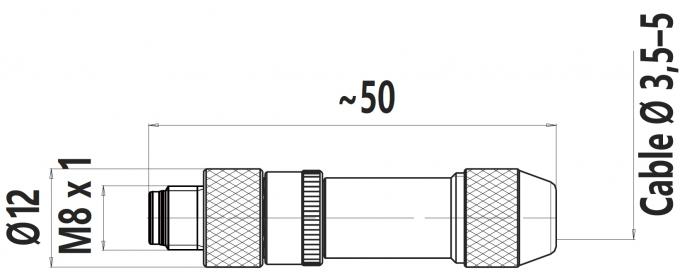

Technical Data

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Brass, nickle-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

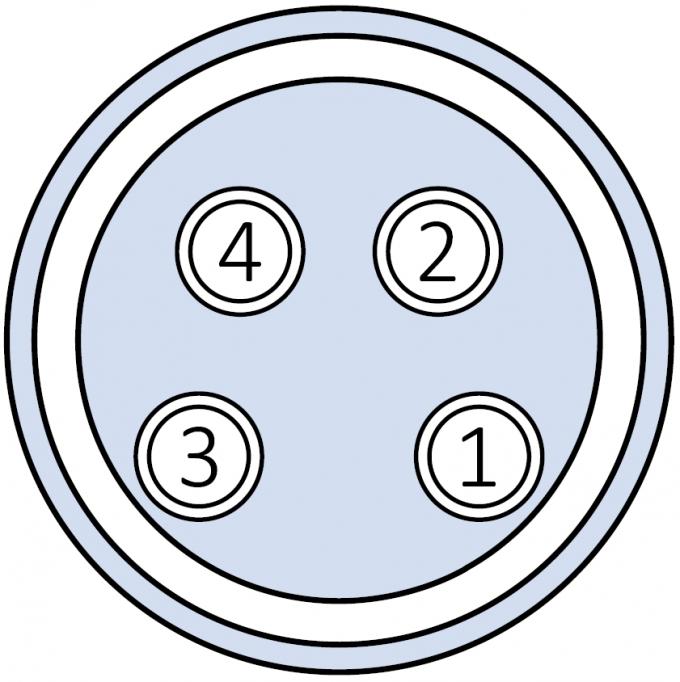

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	3A	60V	Straight	3.5-5mm	H0804FV-0
