Ethernet IP RJ45 Connector Pre Assembled Cable
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Guangdong, China
Brand Name:
KRONZ
Certification:
CE
Model Number:
RJ45S-2/E621
Minimum Order Quantity:
50 pieces
Price:
Negotiable
Packaging Details:
Polybag packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
Product Specification
Type:
RJ45
Description:
Pre-assembled Cable With RJ45 Connector
Pin:
8
Cable Color:
Green
Material:
PVC
Degree Of Protection:
IP20
Mating Cycles:
>100
Ambient Temperature:
-25~+85℃
Highlight:
RJ45 Connector Pre Assembled Cable
,Ethernet IP RJ45 Connector
,RJ45 Ethernet IP Connector
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description
RJ45 Connector Pre-assembled Cable IE Connector Straight Ethernet IP
Product Description
The RJ45 connector is a common network connection method used to interconnect network devices. By using twisted pairs, many devices can be connected to a device called a switch to form a large network. At the same time, the RJ45 interface can also be used to connect a Modem (modem) to achieve remote transmission of data.

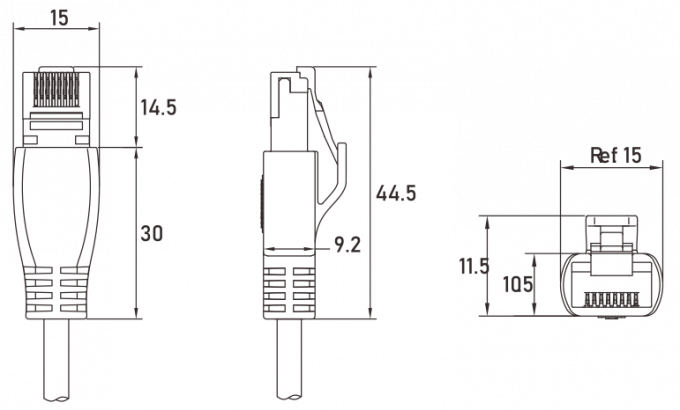

Technical Data
| Standard | IEC 61076-2-104 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

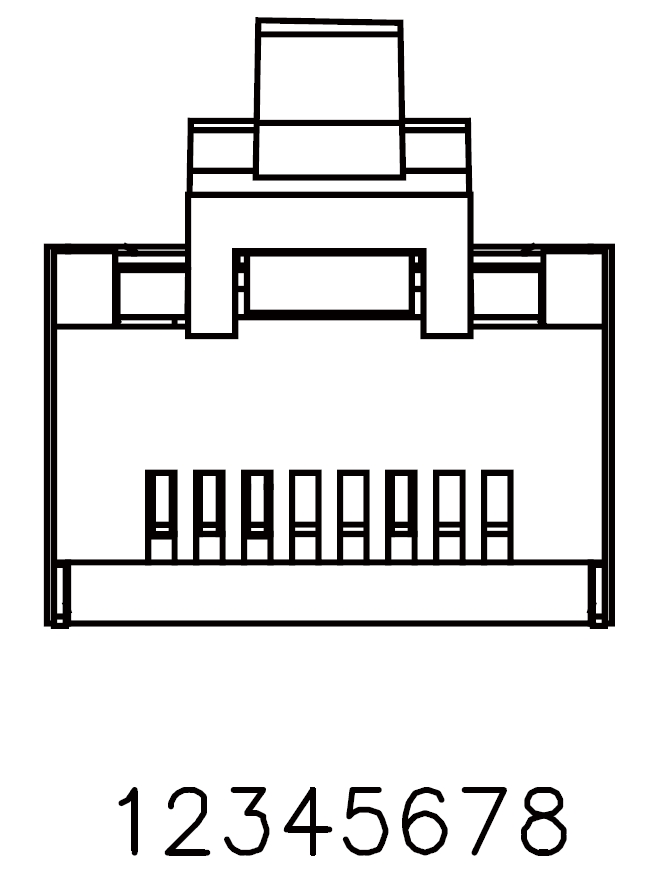

| Pin assignment | Wire color | PIN | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
 |
1 = WH/OR 2 = OR 3 = WH/GN 4 = BU 5 = WH/BU 6 = GN 7 = WH/BN 8 = BN |
8PIN | 1.5A | 48V | 4×2×0.25,shielded (4×2×24AWG) yellowish green, PVC,drag chain, OD=8.0 |
Straight | 2M | RJ45S-2/E621 |
| 5M | RJ45S-5/E621 | |||||||
| 10M | RJ45S-10/E621 |
