Field Wireable RJ45 Connector Angled 4 Pin
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Chiina
Brand Name:
KRONZ
Certification:
CE
Model Number:
RJ45S/C41
Minimum Order Quantity:
50 pieces
Price:
Negotiable
Packaging Details:
Polybag packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
Product Specification
Type:
RJ45 Connectors
Color:
Siliver
Contact Method:
IDC
IP Rate:
IP20
Pin Assignment:
8 PIN
Transmission Characteristics:
Cat5
Data Rate:
≥ 10/100 Mbit/s
Ambient Temperature:
-25~+85℃
Highlight:
Field Wireable RJ45 Connector
,Angled Field Wireable RJ45 Connector
,Field Wireable RJ45 Connector 4 Pin
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description
RJ45 Field-wireable Assembly Connector Angled 4 Pin Metal Housing
Product Description
- Special tools can be used to connect 4-core twisted pair cables satisfactorily
- Industrial compatible design (supported metal shell, small accessories are not easily damaged)
- Ideal for field installation of RJ45 connectors
- The compact, ruggedized RJ45 plug connector can be used in industrial and office environments and allows for quick and easy cable connection
Technical Data

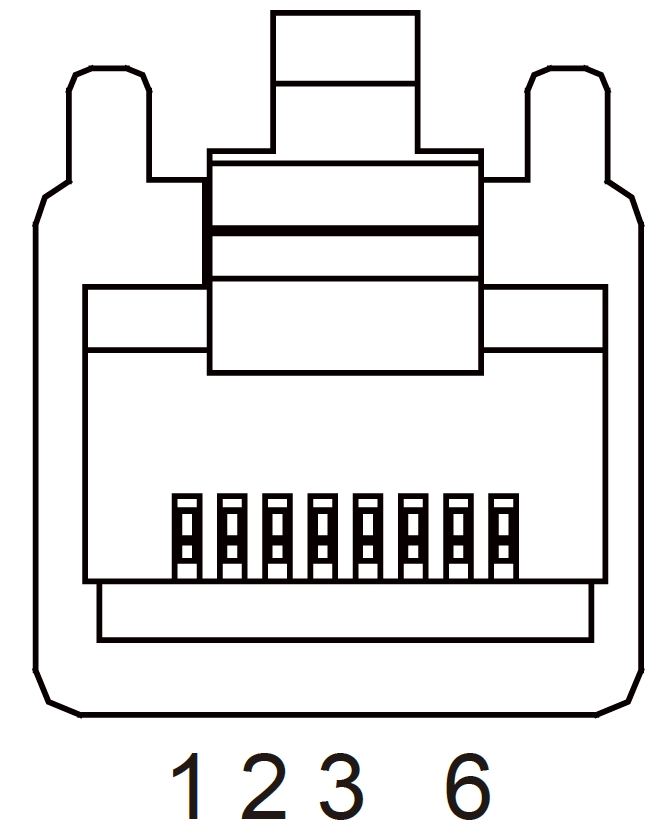

| Pin assignment | 4 PIN |
| Contact nut material | Zinc alloy, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | Zinc alloy, nickle-plated |
| Contact method | IDC |
| Degree of protection | IP20 |
| Transmission characteristics | Cat5 |
| Data rate | ≥ 10/100 Mbit/s |
| Power transmission | POE,POE+ |
| Ambient temperature | -25~+85℃ |
| Mating cycles | ≥10 |
| Pin assignment | Type | Rated current | Voltage | Wire gauge | Cable outlet | Model No. |
 |
RJ45 | 1.5A | 45V | 0.14~0.34 mm² 26~22 AWG cable diameter: 6.5mm |
Straight | RJ45S/C41 |
