7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Guangdong, China
Brand Name:
KRONZ
Certification:
CE
Model Number:
H7804F-9/R
Minimum Order Quantity:
50 pieces
Price:
Negotiable
Packaging Details:
Polybag packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN
Product Specification
Description:
7/8" Field-wireable Assembly Connector
Contact Nut Material:
Zinc Alloy, Nickle-plated
Contact Carrier Material:
PA, Black
Seal Material:
FPM/FKM
Ambient Temperature:
-25~+85℃
Connector Type:
Screw Locking
Housing Material:
PBT/PA, Black
Degree Of Protection:
IP67
Highlight:

4 Pin Field Wireable Connectors 7/8

,

Female Field Wireable Connectors

,

Field Wireable Connectors 7/8"-16UN

7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description

7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN



Product Description

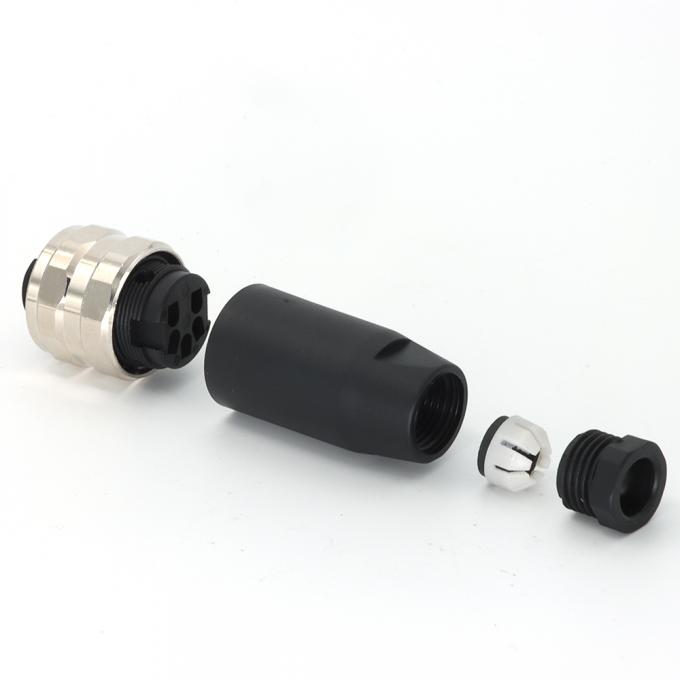

The 7/8" field-wireable assembly connector is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. ‌This kind of connector is usually used in situations where high electrical performance and reliable connection are required, ‌such as industrial automation, ‌machinery manufacturing and other fields.



Technical Data

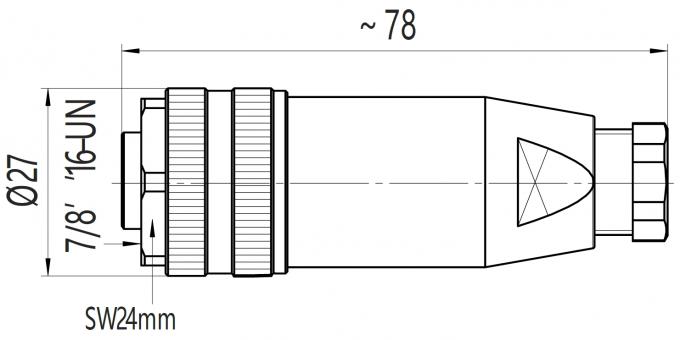

Thread type 7/8”-16UN
Contact nut material Zinc alloy, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

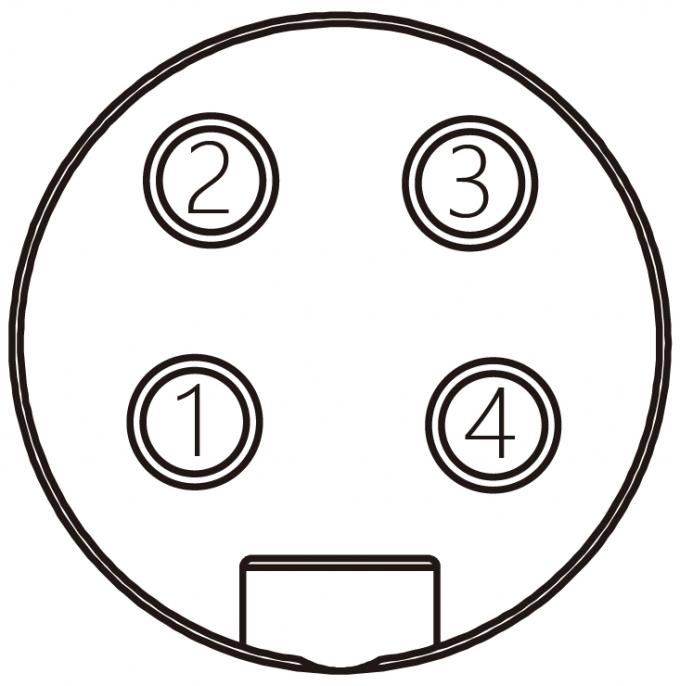

Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Screw connection A 8A 600V Straight 6-8mm H7804F-9/R
