PVC M12 Female Connectors 12 Pin Angled IP67 Black With Molded Cable
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Guangdong, China
Brand Name:
KRONZ
Certification:
CE
Model Number:
M1212FA-10/P00R
Minimum Order Quantity:
50 pieces
Price:
Negotiable
Packaging Details:
Polybag packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
Product Specification
Product Name:
M12 Connectors With Molded Cable
Seal Material:
FPM/FKM
IP Rate:
IP67
Standard:
IEC 61076-2-101
Ambient Temperature:
Ambient Temperature -25~+85℃
Contact Nut Material:
Brass, Nickel-plated
Contact Surface Material:
Brass, Gold-plated
Contact Carrier Material:
PA, Black
Highlight:
PVC M12 Female Connectors
,M12 Female Connectors 12 Pin
,IP67 M12 12 Pin Connector
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description
PVC M12 Female Connectors 12 Pin Angled IP67 Black With Molded Cable
Product Specifications
| Attribute | Value |
|---|---|
| Product name | M12 Connectors with molded cable |
| Seal material | FPM/FKM |
| IP rate | IP67 |
| Standard | IEC 61076-2-101 |
| Ambient temperature | -25~+85℃ |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
Product Description
M12 Connectors with Molded Cable Female Angled 12 Pin IP67 black PVC
Cable length: 2/5/10m, other cable lengths are available on request! Freely selectable cable material (P00R: black PVC, P01R: black PUR). For more details, please consult our customer service.
Technical Data
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

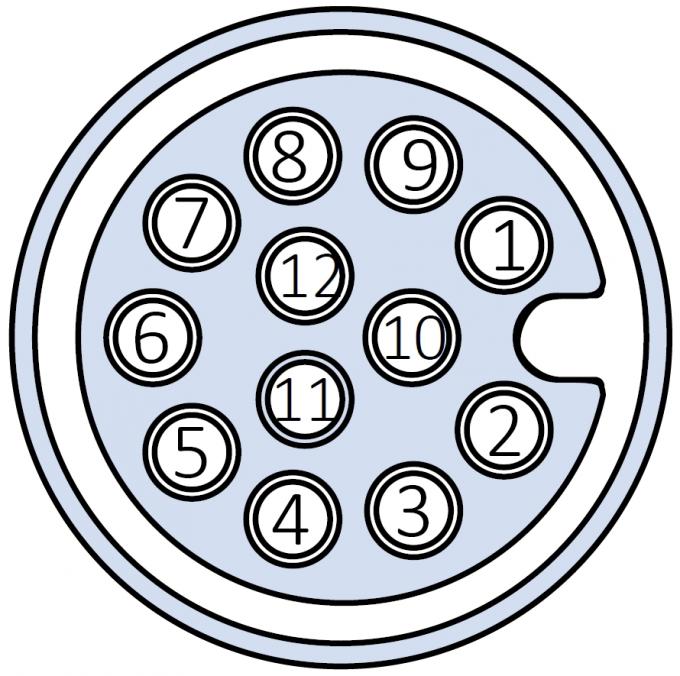

Pin Configuration
| Pin assignment | Connection method | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1=BN 2=BU 3=WH 4=GN 5=PK 6=YE 7=BK 8=GY 9=RD 10=VT 11=GY/PK 12=RD/BU |
A | 1.5A | 30V | 12×0.14 (12×26AWG) PVC, black | Angled | 2M | M1212FA-2/P00R |
| 5M | M1212FA-5/P00R | |||||||
| 10M | M1212FA-10/P00R |
