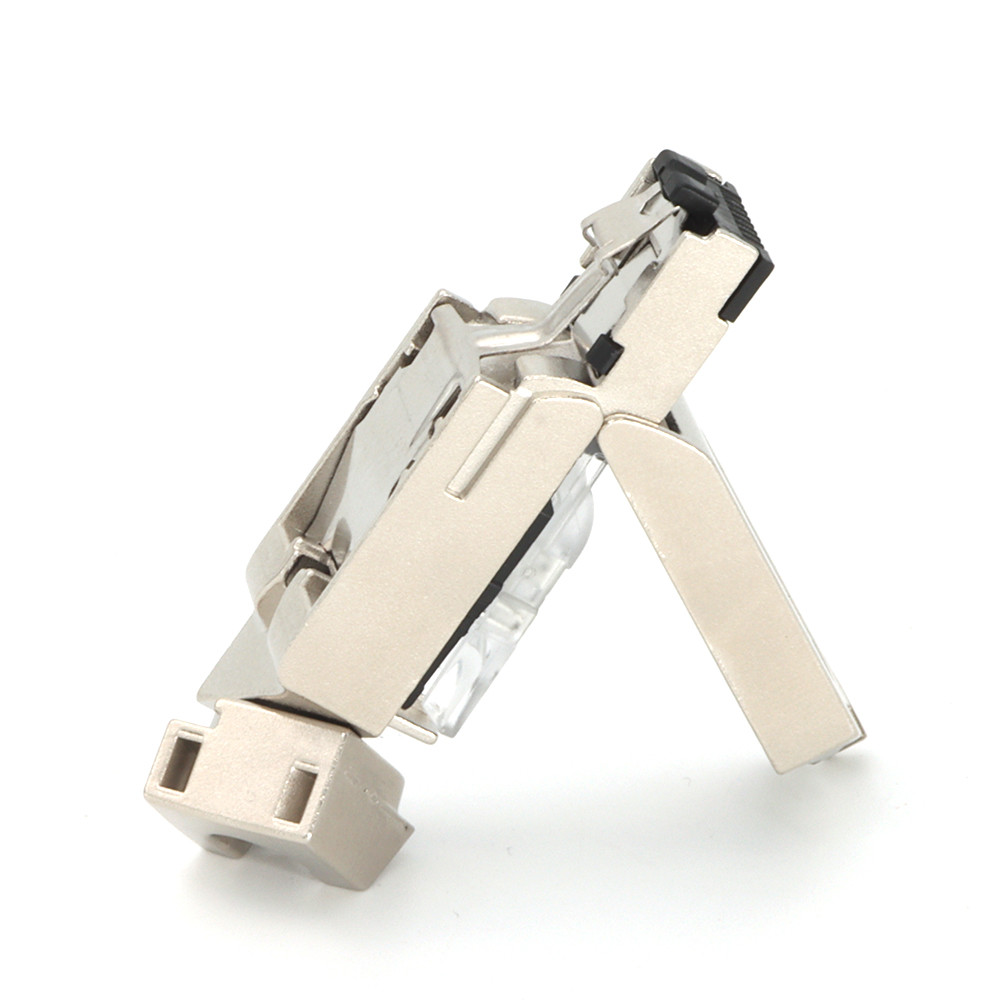

Fast Connect RJ45 Connector Plug 145 Metal Housing 4Pin 100MBit/S
  • Name
  • Name

Fast Connect RJ45 Connector Plug 145 Metal Housing 4Pin 100MBit/S

Brand Name: KRONZ
Model Number: RJ45S/C40/O
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
RJ45 Field-wirable Assembly Connector
Color:
Siliver
Material:
Brass,gold-plated
IP Rate:
IP20
Contact Method:
IDC
Date Rate:
≥ 10/100 Mbit/s
Power Transmission:
POE,POE+
Ambient Temperature:
-25~+85℃
Supply Ability:
100000 pieces per month
Highlight:

RJ45 Connector Plug 4Pin

,

RJ45 Connector Plug 100MBit/S

,

145 Metal Housing RJ45 Connector

Product Description
Fast Connect RJ45 Connector Plug 145 Metal Housing 4Pin 100MBit/S
Product Attributes
Attribute Value
Product Name RJ45 Field-wirable Assembly Connector
Color Silver
Material Brass, gold-plated
IP rate IP20
Contact Method IDC
Date Rate ≥ 10/100 Mbit/s
Power Transmission POE, POE+
Ambient Temperature -25~+85℃
Product Description
Fast Connect RJ45 Connector RJ45 Plug 145 Metal Housing 4 Pin 100MBit/S

Product Features
  • Special tools can be used to connect 4-core twisted pair cables satisfactorily
  • The compact, ruggedized RJ45 connectors can be used in industrial and office environments and allows for quick and easy cable connection
Fast Connect RJ45 Connector Plug 145 Metal Housing 4Pin 100MBit/S 0
Technical Data

Specification Value
Pin assignment 4 PIN
Contact nut material Zinc alloy, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material Zinc alloy, nickel-plated
Contact method IDC
Degree of protection IP20
Transmission characteristics ≥Cat5
Data rate ≥ 10/100 Mbit/s
Power transmission POE, POE+
Ambient temperature -20~+70℃
Mating cycles ≥10

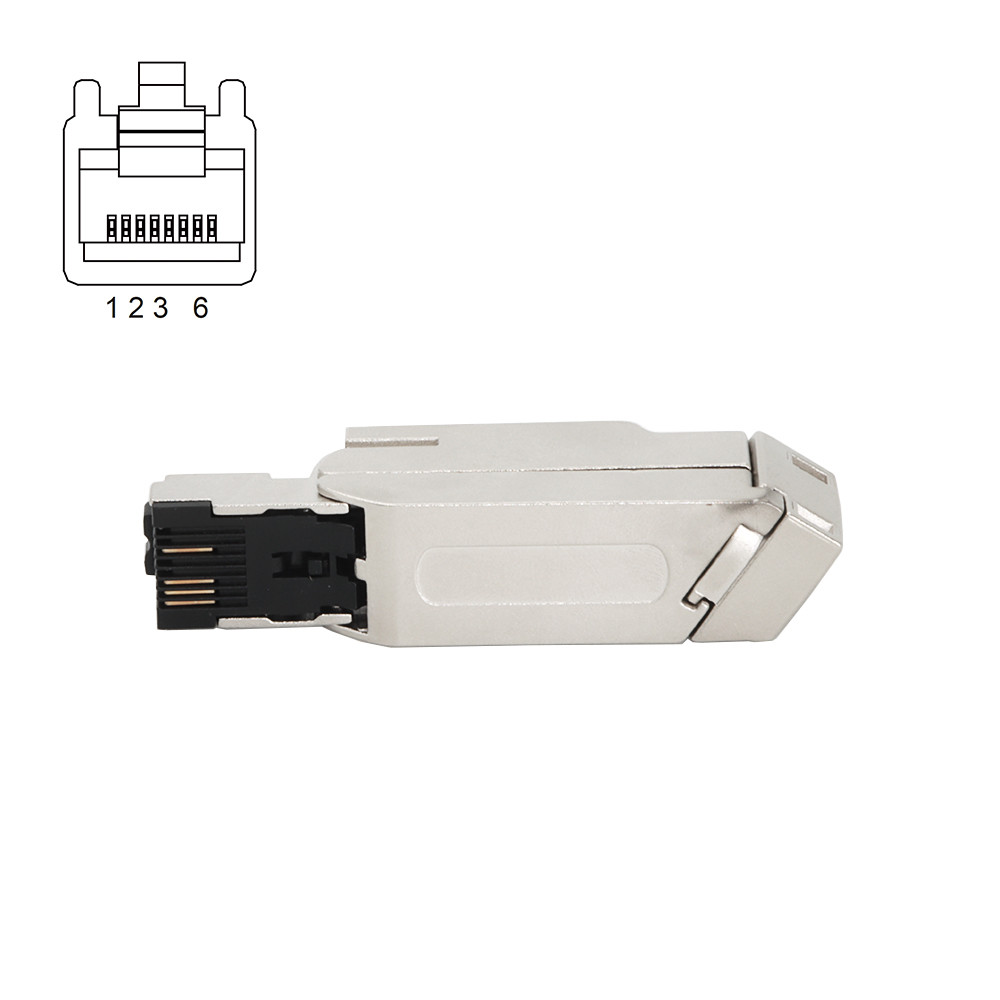

Pin Assignment Specifications
Pin assignment Type Rated current Voltage Wire gauge Cable outlet Model No.
Fast Connect RJ45 Connector Plug 145 Metal Housing 4Pin 100MBit/S 1 RJ45 1.5A 45V 0.14~0.34 mm²
26~22 AWG
cable diameter: 6.5mm		 Straight RJ45S/C40/O
