Dual Channel Industrial Distribution Box 8 Port NPN Junction Box For M12
  • Name
  • Name

Dual Channel Industrial Distribution Box 8 Port NPN Junction Box For M12

Brand Name: KRONZ
Model Number: MB1208-2N-CV3M/HF
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Paper box packing
Payment Terms: T/T,Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
MB120X-X 3M_EN.pdf
Product Name:
M12 8 Port Distribute Junction Box
Interface Type:
With Cable
Packaging:
Independent Packaging
Description:
Distribution Junction Box
Termination:
M12 Connectors
Connector Usage:
Sensor Distributer Box
Voltage - Rated:
24V DC/AC
Current Rating (Amps):
4 A
Number Of Ports:
8 Ports
Size / Dimension:
17.25*5.8*1.83cm
Supply Ability:
100000 pieces per month
Highlight:

NPN Industrial Distribution Box

,

M12 8 Port Industrial Distribution Box

,

NPN M12 Junction Box

Product Description
Dual Channel Industrial Distribution Box 8 Port NPN Junction Box For M12
Product Specifications
Attribute Value
Product name M12 8 port distribute junction box
Interface Type With cable
Packaging Independent Packaging
Description Distribution Junction Box
Termination M12 connectors
Connector Usage Sensor Distributer Box
Voltage - Rated 24V DC/AC
Current Rating (Amps) 4 A
Number of Ports 8 Ports
Size / Dimension 17.25*5.8*1.83cm
Product Description

8-port M12 Distributor with PVC Flexible Cable, NPN Dual Channel LED Display, designed for industrial automation applications including CNC machines, injection molding machines, and packaging equipment.

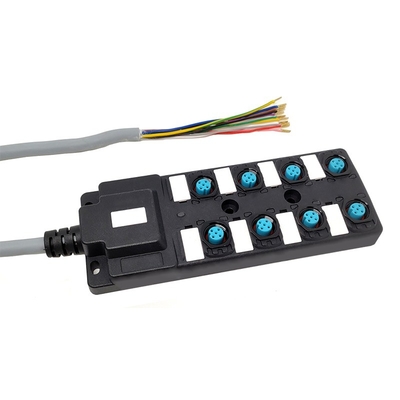

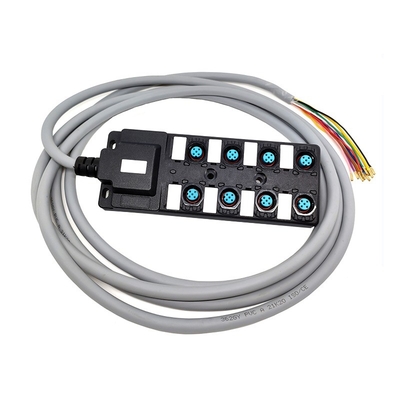

M12 8-port distributor junction box Close-up of M12 distributor connections
Key Applications
  • Spindle position monitoring in CNC machines
  • Pressure and temperature sensor connections in injection molding machines
  • Photoelectric detection and actuator control in packaging machines
Technical Specifications
Order Model MB1208-2N-CV3M/HF
Type NPN
Sheath PVC flexible wire
Connector Type M12 Socket
Rated Power Ue 24V DC/AC
Rated Working Voltage Ub 18...30 V DC
Current load capacity(A) 4 A
Total current(A) 6 A
Power on indicator light Green LED indicator light
Shell protection grade IP67 (when connected correctly)
Sheath color GY
PVC flexible wire 3*0.75+8*0.34mm²
M12 socket connection diagram
Connection Details
Channel Configuration Dual Channel
Pin Definition Pin 1: (+)
Pin 2: (S2)
Pin 3: (-)
Pin 4: (S1)
Pin 5: (PE)
LED Display Power (green)
Signal S1 (yellow)
Signal S2 (white)
Dual channel wiring diagram
