16 Channels Remote I/O Module Digital NPN/PNP Input And PNP Output EtherCAT

5 pieces
MOQ
Negotiable
Price
16 Channels Remote I/O Module Digital NPN/PNP Input And PNP Output EtherCAT
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Ethernet Module
Application: Industrial Ethernet Bus
Product Name: 16 Channels Input And 16 Channels Output
Input Power: 2W
Input Voltage: 24V DC(±25%)
Input Channels: 16
Input Type: NPN/PNP
Output Type: PNP
Highlight:

16 Channels Remote I/O Module

,

Digital NPN Input Remote I/O Module

,

PNP Output EtherCAT Remote I/O Module
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: KRONZ
Certification: CE
Model Number: KAEC16X16
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

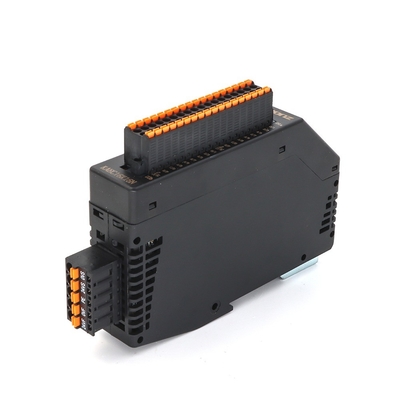

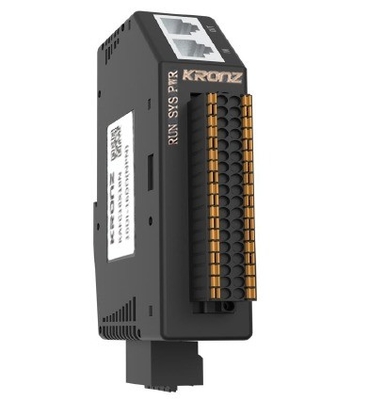

16 Channels Remote I/O Module Digital NPN/PNP Input And PNP Output EtherCAT
Product Overview
The EC/PN series integrated I/O modules support EtherCAT/ProfiNet industrial Ethernet bus. With compact dimensions, high real-time performance, and diverse module types, it delivers high-speed data collection and optimized system configuration. The module simplifies installation and wiring while enhancing system reliability.
Key Features
  • Compact design: Measures only 115mm x 72mm x 25mm for space-efficient installation
  • High-speed performance: Utilizes parallel interface and high-performance communication chip
  • Versatile I/O support: Comprehensive input/output types for diverse application scenarios
  • Enhanced diagnostics: Channel indicator lights positioned for clear visibility and easy maintenance
  • Simplified configuration: Compatible with major EtherCAT/ProfiNET master stations
  • Easy installation: DIN35mm rail mounting with spring-type terminal blocks for quick wiring
Technical Specifications
Attribute Value
Model Number KAEC16X16
Type Ethernet Module
Application Industrial Ethernet Bus
Input Channels 16
Output Channels 16
Input Type NPN/PNP
Output Type PNP
Input Power Consumption (MAX) 2W
Input Voltage 24V DC (±25%)
Input Logic 1/0 Signal 15~30V/-3~3V
Output Logic 1/0 Signal 15~30V/-3~3V
Input Current (Typical) 3mA
Output Current (Max) 500mA
Isolation and Withstand Voltage 500V
Isolation Method Optocoupler isolation
Dimensions 115mm x 72mm x 25mm
Operation Temperature -25~85℃
Storage Temperature 0~55℃
Protection Grade IP20
