Name: Stainless Steel Housing Inductive Proximity Sensor 60mm Length NPN NO Output
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: IS2-M8NO60-S0B/D
Availability: InStock

Stainless Steel Housing Inductive Proximity Sensor 60mm Length NPN NO Output

10 pieces

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Installation Type: Quasi-flush

Output: NPN NO

Connection Type: M8 Connector

Switching Frequency: 3kHZ

Response Time: 0.1ms

Switch Hysteresis: <15%sr

Repeatability: <1.0%sr

Meterial: Stainless Steel

LED Display: Available

Highlight:

Stainless Steel Housing Inductive Proximity Sensor

60mm Length Inductive Proximity Sensor

NPN NO Inductive Proximity Sensor

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: IS2-M8NO60-S0B/D

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

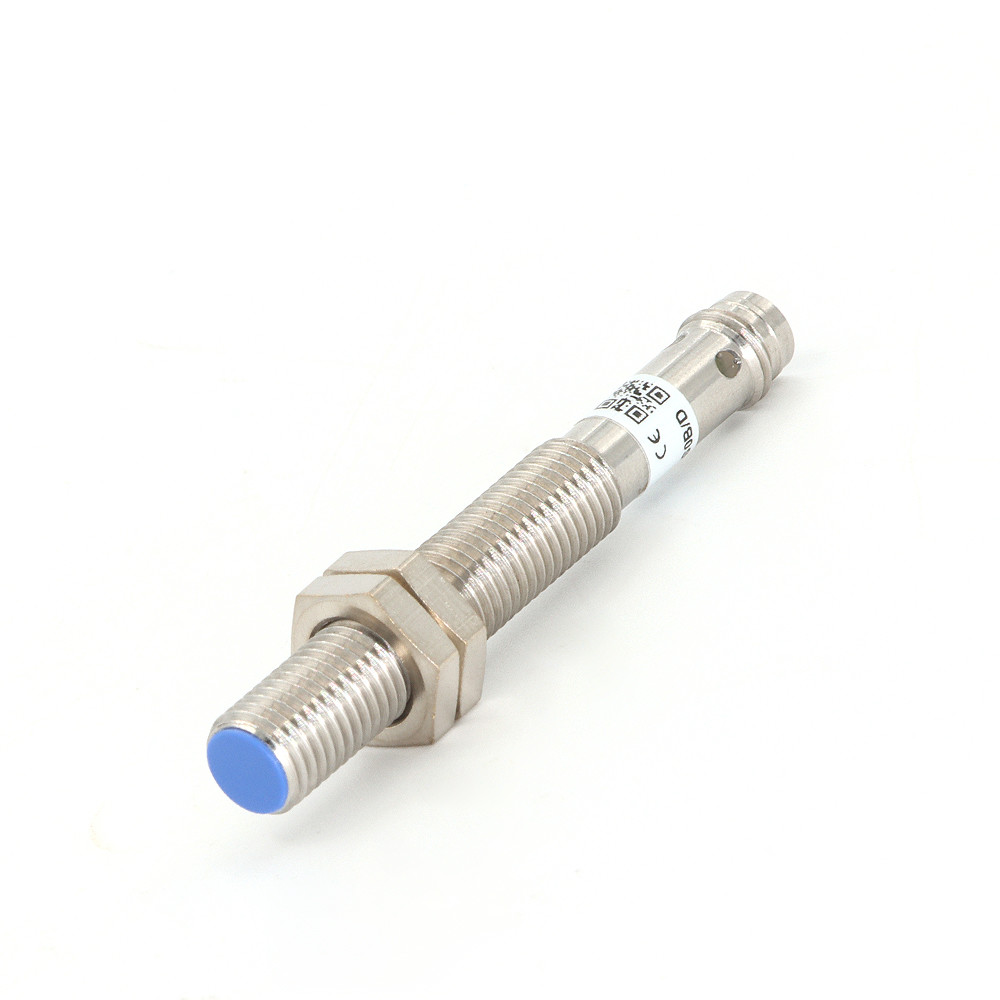

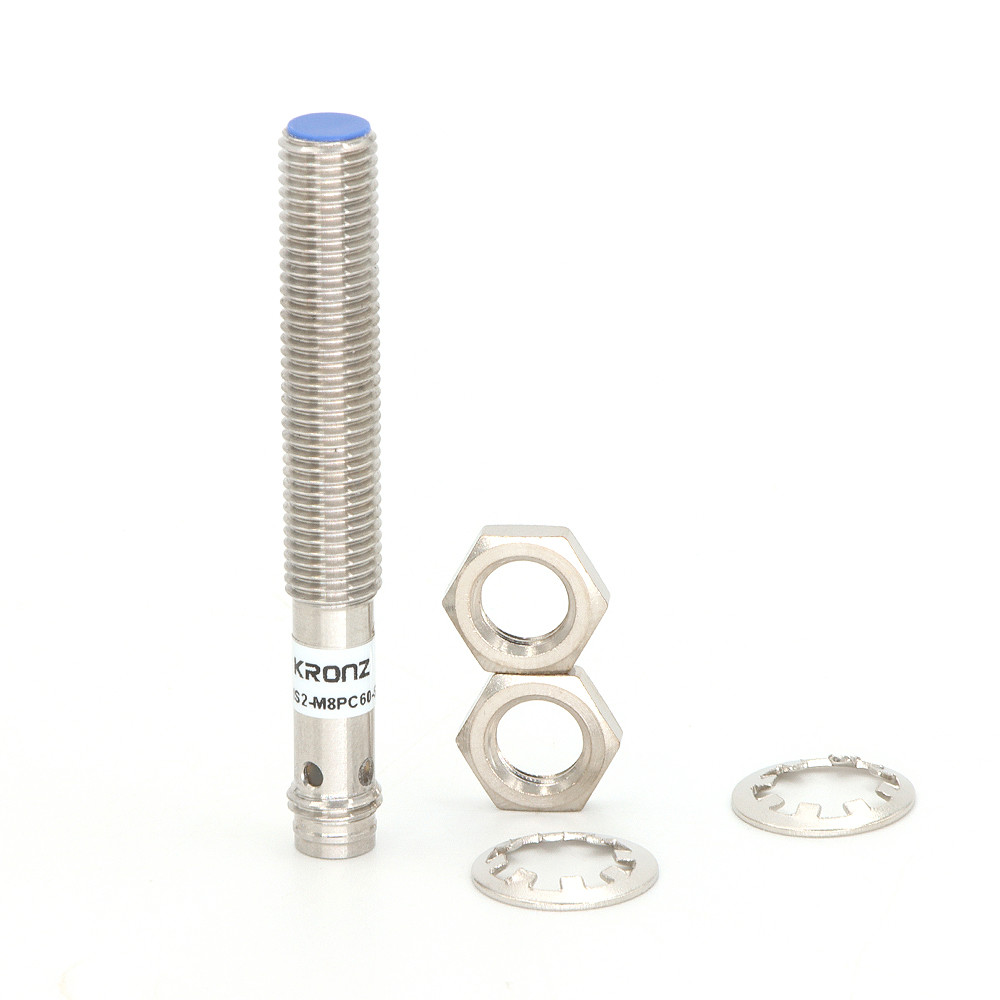

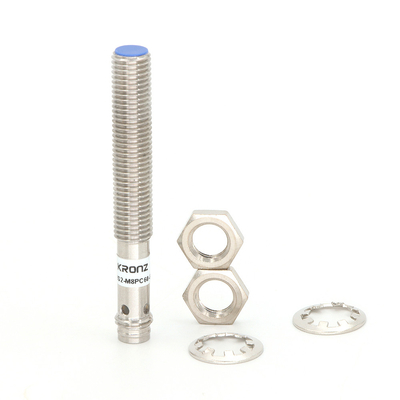

Gallery

Stainless Steel Housing Inductive Proximity Sensor 60mm Length NPN NO Output

Product Description

Inductive Sensors 60mm Length Stainless Steel NPN NO Quasi-flush Install Type

Product Description

Inductive sensors contribute significantly to quality control. They can precisely detect the presence and alignment of metal parts during production, reducing errors and improving product quality. Inductive sensors are also indispensable in industrial automation. They enable proximity detection in machinery, preventing accidents and minimizing damage. For example, in conveyor systems, they ensure that objects are properly positioned and avoid jams.

■ Installation type: Quasi-flush
■ Sensing range Sn: 2mm
■ Output function: NPN,NO
■ Supply voltage: 10-30VDC
■ Connection type: M8 connector
■ Housing material: Stainless steel

Technical Data

Installation Type	Quasi-flush
Detection Distance	2mm
LED Display	Yes
Working Voltage	10-30VDC
No Load Current	<10mA (24V)
Max. load current	100mA
Voltage drop	<2.0v
Switching frequency	3kHZ
Tolerance(Sr)	＜10%
Leakage current	＜0.01mA
Response time	0.1ms
Temperature drift	＜10%sr
Switch hysteresis	<15%sr
Repeatability	<1.0%sr
Short-circuit protection/Reverse polarity protection	Yes
Overload current protection	220mA
Protection grade	IP67
Ambient temperature	-25℃ to +70℃
Sensing surface material	POM
Connection type	M8 connector

Dimensional Drawing

Stainless Steel Housing Inductive Proximity Sensor 60mm Length NPN NO Output 0

Wiring Diagram

Stainless Steel Housing Inductive Proximity Sensor 60mm Length NPN NO Output 1
