TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: TOF Sensors
Detection Method: Reflective Type
Detection Distance: 50~1500 Mm
Output: PNP
Light Source: Red LED (940nm) IEC CLASS1
Supply Voltage: DC12~24V
Highlight:

1500mm TOF Sensors

,

1500mm PNP Output TOF Sensors

,

TOF Sensors For Detecting 1x1cm
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: BTFM-2P (50-1500mm)
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing
Product Specifications
Attribute Value
Product Name TOF Sensors
Detection Method Reflective type
Detection Distance 50~1500 mm
Output PNP
Light Source Red LED (940nm) IEC CLASS1
Supply Voltage DC12~24V
Product Overview

TOF (Time of Flight) sensors represent an advanced detection technology that calculates distance based on the time difference between light transmission and reception. Unlike traditional photoelectric sensors, TOF technology is not affected by the color or material of detected objects, ensuring more stable and reliable performance.

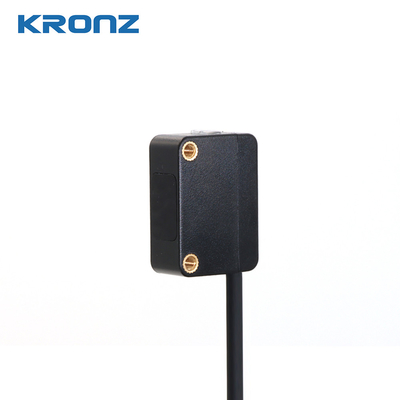

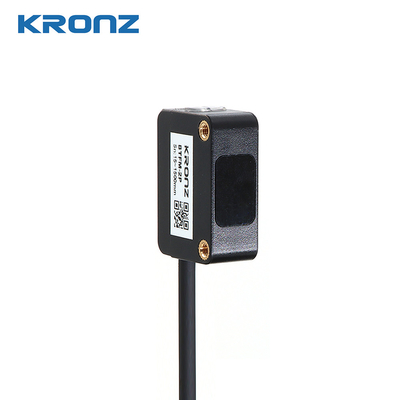

TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 0 TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 1
Technical Specifications
Detection method Reflective type
Output PNP output
Action mode Set the TOF principle with one click
Detection distance 50~1500 mm
Light source Red LED (940nm) IEC CLASS1
Supply voltage DC12~24V ±10%
Power consumption Less than 480mW (DC24V, current less than 20mA)
Control output Load power supply voltage DC26.4V or less, load 80mA or less current collector open circuit output
Output residual voltage Below 1V (load current less than 10mA)
Below 2V (load current 10~80mA)
Protection circuit Power supply reverse connection protection/load short circuit protection/output reverse connection protection
Response time Action and return: less than 100ms each
Ambient temperature Operation: -20~+50°C, Storage: -40~+70°C (no freezing or condensation)
Ambient humidity Operation: 35~85%RH, Storage: 35~95%RH (no freezing or condensation)
Ambient illumination Sunlight: below 10,000lx
Protective structure IEC60529 IP65
Installation and Operation
TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 2
Dimensional Drawing
TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 3
(1) Place the detected object at the desired position and press the teach pendant
TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 4
(2) Press the teaching button for more than 3 seconds until the traffic light flashes alternately. Release the button to complete teaching.
TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 5
DC line 4-wire PNP output
TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 6 TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 7 TOF Time Of Flight Sensors 50-1500mm PNP Output For Detecting 1x1cm White Drawing 8
