Name: Time of Flight Sensors 50-1500mm Red LED NPN Reflective IP65 Type Detect TOF Sensor
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: BTFM-2N (50-1500mm)
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Sensor Type: TOF

Detect Object: 100x100mm White Drawing Paper

Detection Distance: 50~1500 Mm

Output: NPN

Power Supply: DC12~24V

Protective Structure: IEC60529 IP65

Highlight:

1500mm TOF Sensor

IP65 Type TOF Sensor

Red LED TOF Sensor

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: BTFM-2N (50-1500mm)

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

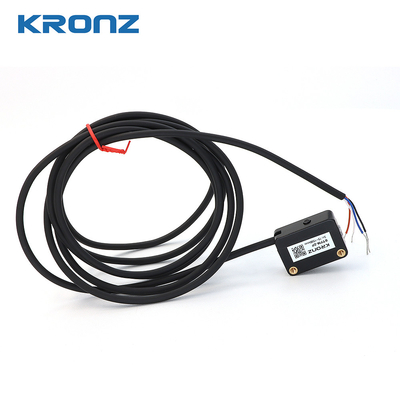

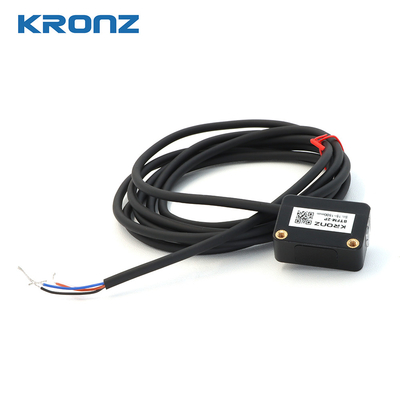

Time of Flight Sensors 50-1500mm Red LED NPN Reflective IP65 Type Detect TOF Sensor

Product Description

Time of Flight Sensors 50-1500mm Red LED NPN Reflective IP65 Type Detect TOF Sensor

Product Description

TOF (Time offlight) is a new time-of-flight detection principle. In the past, most photoelectric sensors used the photoelectric effect. However, with the mature application of TOF technology in mobile phone face recognition, AGV, drones and other industries, the technology has gradually been decentralized to basic sensors field. The principle of time-of-flight detection is to calculate the distance based on the time difference between the transmitting end and the receiving end of the light source. Therefore, it is not affected by the color and material of the object being measured, and the product detection is more stable and reliable.

Technical Data

Detection method	Reflective type
Output	NPN output
Action mode	Set the TOF principle with one click
Detection distance	50~1500 mm
Light source	Red LED (940nm) IEC CLASS1
Supply voltage	DC12~24V 士10%
Consumption of electricity	Power consumption is less than 480mW (power supply voltage is DC24V, consumption current is less than 20mA)
Control output	Load power supply voltage DC26.4V or less, load 80mA or less current collector open circuit output (NPN/PNP output varies depending on the model)
Output residual voltage	Residual voltage below 1V (load current less than 10mA)
Output residual voltage	Residual voltage below 2V (load current less than 10~80mA)
Protection circuit	Power supply reverse connection protection/load short circuit protection/output reverse connection protection
Response time	Action and return: less than 100ms each
Ambient temperature	During operation: -20~+50°C, during storage: -40~+70°C (no freezing or condensation)
Ambient humidity	During operation: 35~85%RH, during storage: 35~95%RH (no freezing or condensation)
Ambient illumination	Sunlight: below 10.000lx
Protective structure	IEC60529 IP65

Dimensional Drawing

Time of Flight Sensors 50-1500mm Red LED NPN Reflective IP65 Type Detect TOF Sensor 0

(1) Place the detected object at the desired position and press the teach pendant

Time of Flight Sensors 50-1500mm Red LED NPN Reflective IP65 Type Detect TOF Sensor 1

(2) Press the teaching button for more than 3 seconds until the traffic light flashes alternately. Release the button to complete teaching.

Time of Flight Sensors 50-1500mm Red LED NPN Reflective IP65 Type Detect TOF Sensor 2

DC line 4-wire NPN output

Time of Flight Sensors 50-1500mm Red LED NPN Reflective IP65 Type Detect TOF Sensor 3
