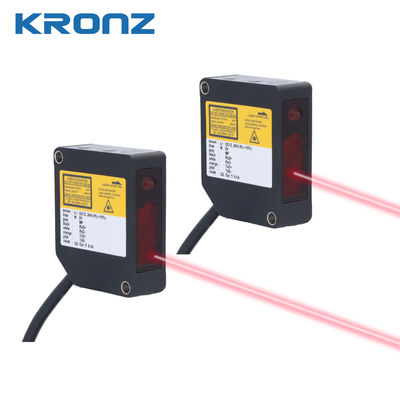

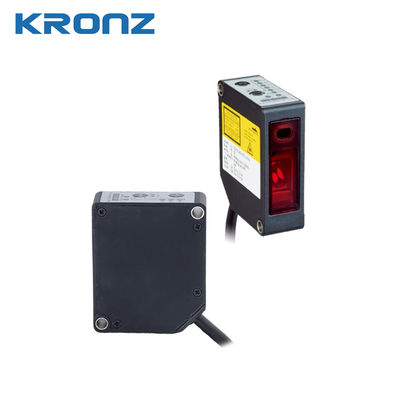

20-60°C Operating Temperature 30±4mm Sensing Distance Photoelectric Sensor for Industrial Applications

Brand Name:	KRONZ
Model Number:	KD50-L30N
MOQ:	1
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Operating Temperature:

-10~45°C

Vibration Resistance:

10~55Hz, Double Amplitude 1.5mm,X、Y、Z Directions, 2 Hour For Each

Operating Humidity:

35~85%RH(no Condensation Or Icing)

Ambient Illuminance:

Sunlight: ≤10000lux, Lamp:≤3000lux

Wavelength:

655nm

Storage Humidity:

35~95%RH(no Condensation Or Icing)

Weight:

Cable Type: 65g

Housing Material:

Housing: PBT, Lens: PMMA

Supply Ability:

10000 pieces per month

Highlight:

Industrial Photoelectric Sensor

34mm Distance Photoelectric Sensor

Product Description

20-60°C Operating Temperature 30±4mm Sensing Distance Photoelectric Sensor for Industrial Applications

Product Attributes

Attribute	Value
Operating Temperature	-10~45°C
Vibration Resistance	10~55Hz, Double Amplitude 1.5mm,X、Y、Z Directions, 2 Hour For Each
Operating Humidity	35~85%RH(no Condensation Or Icing)
Ambient Illuminance	Sunlight: ≤10000lux, Lamp:≤3000lux
Wavelength	655nm
Storage Humidity	35~95%RH(no Condensation Or Icing)
Weight	Cable Type: 65g
Housing Material	Housing: PBT, Lens: PMMA

Product Description

The Photoelectric Sensors product is a versatile and reliable solution designed for a wide range of applications, including machine guarding and automation systems. The CMOS sensor enables fast processing, high resolution, and stable performance even for challenging surfaces (e.g., glossy, dark, or rough textures).

Cable Type	2CH+Analog Current	KD50-L30N
Output Signal	Switching output: NPN (-N)
Detection Range	26.3±2mm
Full Scale (F.S.)	4mm
Spot Size	Near Range	0.15 x 0.15mm
Linearity Accuracy	±0.2%F.S.
Repeatability	1μm
Response Time	High-speed Mode	max.5ms: sampling average x 1 (1ms) + sensitivity switch time (max.4ms)
	Standard Mode	max.12.5ms: sampling average x 16 (8.5ms) + sensitivity switch time (max.4ms)
IP Rating	IP67

Applications

KRONZ Photoelectric Sensors are versatile sensors suitable for a wide range of product application occasions and scenarios due to their high-quality features and specifications. These sensors, originating from Guangdong, China, come with CE certification, ensuring their reliability and performance.

Height or Thickness Control: Ensuring consistent material thickness in processes like film extrusion or sheet metal production.
Positioning and Alignment: Used in robotic systems to precisely align tools or components.
