PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency

1
MOQ
Negotiable
Price
PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Linearity Accuracy: ±0.1%F.S.
Connection Type: Cable
Spot Size (max.) Far Range: 0.5x0.8mm
Factory Setting: 500μs（250mm：750μs）
Light Source: Red Laser Diode
Operating Temperature: -10~45°C
Shock Resistance: 50G（500m/s²）
Spot Size (max.) Near Range: 1.2x1.8mm
Highlight:

PMMA Lens Photoelectric Sensors

,

Efficiency PMMA Lens Photoelectric Sensor
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: KD50-120N
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Product Description
PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency
Product Attributes
Attribute Value
Linearity Accuracy ±0.1%F.S.
Connection Type Cable
Spot Size (max.) Far Range 0.5x0.8mm
Factory Setting 500μs（250mm：750μs）
Light Source Red Laser Diode
Operating Temperature -10~45°C
Shock Resistance 50G（500m/s²）
Spot Size (max.) Near Range 1.2x1.8mm
Product Description

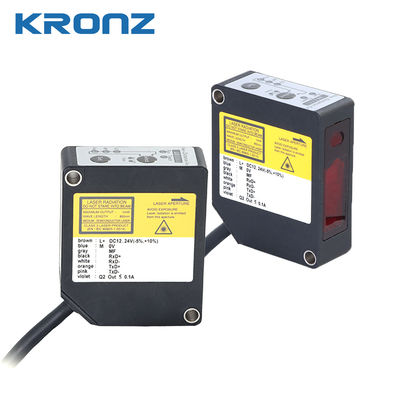

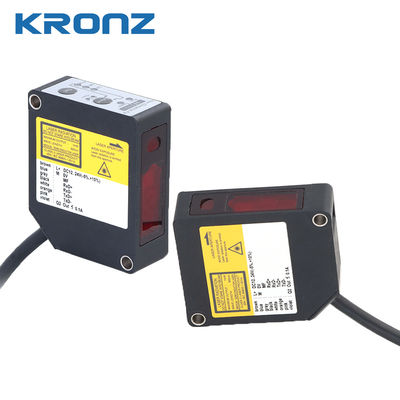

The photoelectric sensor is a versatile and reliable short-range optical sensor designed for industrial applications. Featuring a rugged PBT housing and PMMA lens, it ensures durability, optical clarity, and sensing accuracy.
How CMOS Laser Displacement Photoelectric Sensors Work
  • Laser Emission: The sensor emits a laser beam onto the target object's surface.
  • Reflection: Reflected light is captured by the CMOS sensor using triangulation principle.
  • Displacement Calculation: The sensor calculates object distance with high accuracy based on reflected light spot position changes.
PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency 0 PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency 1
Cable type 2 channels | KD50-120N series
Output signal Switching Output: NPN (-N)
Detection range 120±60 mm
Full Scale (F.S.) 120 mm
Light source Red laser diode
Sampling period Class 2 (Class II)
Sampling period 500 (250 mm: 750)
Repeatability High-speed mode: 45 microns
Other modes: 30 microns
Storage temperature/humidity -20~60°C/35~95%RH (no condensation, freezing)
Impact resistance 50G (500 m/s²)
Spot size (max) Close up: 1.2x1.8 mm
Housing material Housing: PBT
Lens: PMMA
Vibration resistance 10~55Hz, double amplitude 1.5mm, X, Y, Z direction, 2 hours each
PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency 2
Applications
KRONZ photoelectric sensors are versatile devices suitable for industrial automation, manufacturing processes, robotics, and other applications requiring reliable performance and advanced functionality.
PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency 3 PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency 4 PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency 5 PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency 6
