Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67

All Category

M8 Connectors

M12 Connectors

RJ45 Connectors

7/8'' Connectors

Industrial Ethernet Switches

Ultrasonic Sensors

Inductive Sensors

Industrial Power Supplies

RFID System

I/O Module

Distribution Box

Distributor Connector

Photoelectric Sensors
Contact Us
Miss. Doris
+8618924160375
Contact Now
All Category

M8 Connectors

M12 Connectors

RJ45 Connectors

7/8'' Connectors

Industrial Ethernet Switches

Ultrasonic Sensors

Inductive Sensors

Industrial Power Supplies

RFID System

I/O Module

Distribution Box

Distributor Connector

Photoelectric Sensors
  • Name
  • Name
  • Name

Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67

Brand Name: KRONZ
Model Number: BSM-T45N
MOQ: 1
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: ,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong,China
Certification:
CE
Document:
Product Brochure PDF
Detection Distance:
5mm(Fixed)
Detected Object:
1.2 X 0.8mm Opaque Object
Power Supply:
5~24VDC±10%
Protection Level:
IP67
Ambient Temperature:
Operating：-25~70° C（Condensation-Free、Ice-resistant）Storage：-30~80° C
Ambient Humidity:
Operating：5~95%RH; Storage：5~85%RH
Connection Method:
Standard Lead Wire Type (2m PVC Cable) Or Customizable PUR Drag Chain Cable
Protection Circuit:
Reverse Polarity Protection、Overcurrent Protection、Short-Circuit Protection
Supply Ability:
10000 pieces per month
Highlight:

Slot-Type Photoelectric Sensor NPN

,

Photoelectric Sensor 5~24V DC

,

IP67 Photoelectric Sensor with LED

Product Description
Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67
Product Attributes
Attribute Value
Detection Distance 5mm (Fixed)
Detected Object 1.2 x 0.8mm Opaque Object
Power Supply 5~24VDC±10%
Protection Level IP67
Ambient Temperature Operating: -25~70°C (Condensation-Free, Ice-resistant)
Storage: -30~80°C
Ambient Humidity Operating: 5~95%RH
Storage: 5~85%RH
Connection Method Standard lead wire type (2m PVC cable) or customizable PUR drag chain cable
Protection Circuit Reverse Polarity Protection, Overcurrent Protection, Short-Circuit Protection
Product Description
The Slot-Type Photoelectric Sensor (BSM-T45N equivalent) is a compact, industrial-grade sensor designed for precise object detection in automation systems. It features a U-shaped or T-shaped slot for through-beam detection, with an NPN output and direct cable exit for easy installation. The sensor operates on a 5-24V DC power supply, making it compatible with most industrial control systems like PLCs. Its IP67 protection ensures reliable performance in dusty or wet environments, while the red LED indicator provides clear operational status feedback.
Key Features
Electrical Specifications
  • Voltage Range: 5-24V DC, suitable for diverse industrial applications
  • Output Type: NPN open collector (NO/NC configurable) for sinking configurations
  • Load Current: ≤100mA, with short-circuit and reverse polarity protection
Detection Performance
  • Slot Width: 5mm (standard), capable of detecting opaque objects as small as 2×0.8mm
  • Response Time: ≤0.5ms, with a high switching frequency (1kHz-2kHz) for fast-moving applications
  • Light Source: Infrared (940nm) or visible red LED (630nm) for precise detection
Durability & Design
  • IP67 Rating: Dustproof and waterproof for harsh environments
  • Housing Material: Polycarbonate (PC) or aluminum for robustness
  • Cable Exit: Direct 2m cable (or 1m options) for flexible wiring
User Convenience
  • Red LED Indicator: Visual feedback for power and detection status
  • Configurable Modes: Light-ON/Dark-ON switching via wiring or jumper settings
  • Easy Installation: Slot-type design with screw or bracket mounting options
Compliance & Warranty
  • Meets industrial standards (e.g., EN 60947-5-2) and includes a 12-month warranty
Technical Parameters
Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 0

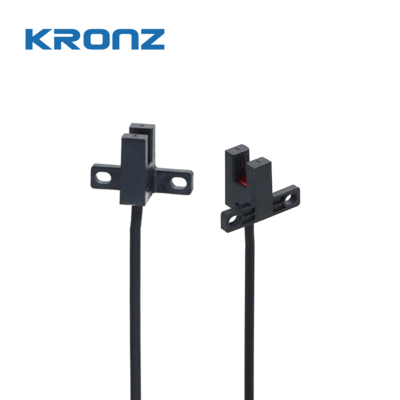

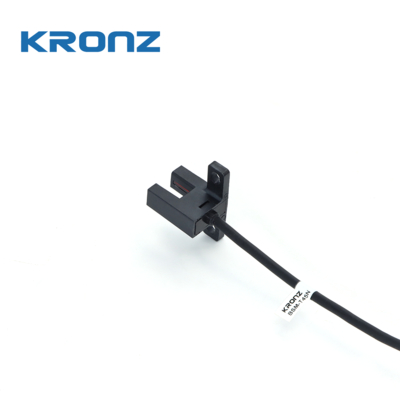

Product Images
Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 1 Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 2 Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 3
Company Profile
Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 4 Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 5 Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 6 Slot-Type Photoelectric Sensor 5~24V DC Direct Cable Exit Type NPN BSM-T45N Indicator Red LED IP67 7
Tags:

IP67 Photoelectric Sensors

Photoelectric Sensors 24V DC

Industrial Photoelectric Sensor
