Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object

1
MOQ
Negotiable
Price
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object
Features Gallery Product Description Request A Quote
Features
Specifications
Detection Mode: Light ON During Power-on, Light OFF During Detection
Light Source: GaAs IR LED（940nm）
Response Frequency: 5kHz
Repeatablity: ＜0.03mm Below
Residual Voltage: Below 3V (at Load Current 100mA, With 2m Wire Length)
Connection Method: Connector Type, Customizable Special Drag Chain Cables
Protection Circuit: Reverse Polarity Protection、Overcurrent Protection、Short-Circuit Protection
Mbient Temperature: Operating：-25~70°C（non-condensing、Ice-resistant）
Ambient Humidity: Operating/Storage Humidity: 35~95% RH (non-condensing)
Vibration Resistance: 10-55Hz With 1.5mm Amplitude, 2 Hours Each In X, Y, And Z Directions
Shock Resistance: 500 M/s² Shock Applied 10 Times Each In X, Y, And Z Directions
Highlight:

Slot-Type Photoelectric Sensor NPN IP65

,

Photoelectric Sensor opaque object detection

,

BSM-200N sensor 1.2x0.8mm detection
Basic Infomation
Place of Origin: Guangdong，China
Brand Name: KRONZ
Certification: CE
Model Number: BSM-200N
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object
Product Attributes
Attribute Value
Detection Mode Light ON during power-on, Light OFF during detection
Light Source GaAs IR LED（940nm）
Response Frequency 5kHz
Repeatablity ＜0.03mm below
Residual Voltage Below 3V (at load current 100mA, with 2m wire length)
Connection Method Connector type, customizable special drag chain cables
Protection Circuit Reverse Polarity Protection、Overcurrent Protection、Short-Circuit Protection
Ambient Temperature Operating：-25~70°C（non-condensing、Ice-resistant）
Ambient Humidity Operating/Storage Humidity: 35~95% RH (non-condensing)
Vibration Resistance 10-55Hz with 1.5mm amplitude, 2 hours each in X, Y, and Z directions
Shock Resistance 500 m/s² shock applied 10 times each in X, Y, and Z directions
Product Description
The BSM-200N is a slot-type photoelectric sensor featuring NPN output and IP65 protection rating, designed for precision detection in industrial automation applications. Its U-shaped slot configuration enables reliable detection of object presence, position, and counting functions, meeting the demands of various challenging industrial environments.
Features:
  • Slot-type (U-shaped) design for precise object detection within the gap.
  • NPN output (open collector) with configurable NO/NC (Normally Open/Normally Closed) modes.
  • Slot width: Likely 5-30mm (exact spec to confirm; comparable to SL-305N's 5mm or SLO30VB6YQ's 30mm).
  • Target size: Detects objects as small as 1.2 × 0.8mm.
  • Response time: ≤0.3ms (industry standard for high-speed applications).
  • Operating voltage: 12-24V DC.
  • Output current: ~100mA (typical for NPN sensors).
  • Protection: Reverse polarity protection.
Technical Parameters
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object 0

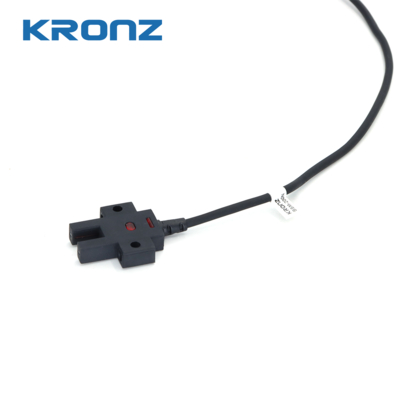

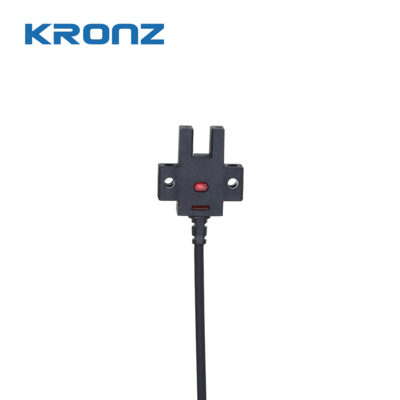

Product Images
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object 1 Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object 2 Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object 3
Product Dimension Drawing
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object 4
