Home /Products/Photoelectric Sensors/Smart Fiber Optic Amplifier with Dual Display One-Button Setup 50μs Response for Industrial Automation

Smart Fiber Optic Amplifier with Dual Display One-Button Setup 50μs Response for Industrial Automation

1
MOQ
Negotiable
Price
Smart Fiber Optic Amplifier with Dual Display One-Button Setup 50μs Response for Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Output Mode: LIGHT ON / DARK ON
Power Supply: 12 To 24VDC
Ambient Humidity: 35 To 85%RH
Countrol Output: PNP
Vibration Resistance: 10–50 Hz, Double Amplitude
Shock Resistance: Approx. 50G (500 M/s²)
Weight: Approx. 20g (main Unit)
Size: L×W×H: 75×11.2×33.8mm
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: BFH-A10P
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Product Description

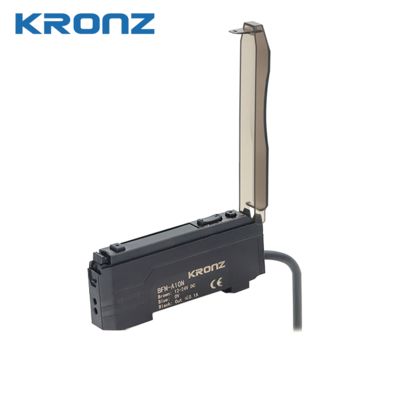

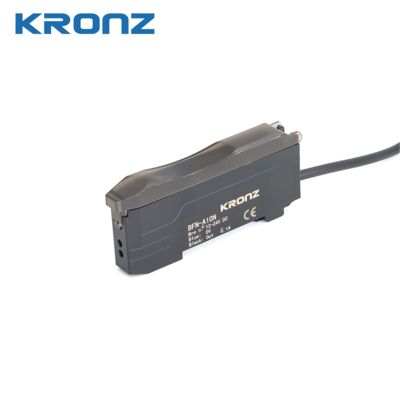

Advanced Digital Fiber Optic Sensor Amplifier with Intelligent Control
Product Description

Discover our state-of-the-art digital fiber optic sensor amplifier designed for precision industrial applications. Featuring revolutionary smart adjustment technology and dual digital displays, this sensor delivers unmatched performance and ease of use in demanding environments.



Key Features:

• Smart One-Button Setup - Complete configuration with just a single button press
• Dual Digital Display - Real-time monitoring and enhanced operational capabilities
• Intelligent Power Adjustment - Automatically regulates light emission without compromising response time
• Ultra-Fast Response - Selectable response times from 50μs to 1ms for various applications
• PNP Output - Maximum 100mA output current with below 2V residual voltage
• Advanced Protection - Comprehensive circuit protection including reverse polarity, surge, and overcurrent protection

Smart Fiber Optic Amplifier with Dual Display One-Button Setup 50μs Response for Industrial Automation 0

Smart Fiber Optic Amplifier with Dual Display One-Button Setup 50μs Response for Industrial Automation 1

NPN BFN-A10N
Countrol Output NPN: External voltage: below 30V DC (between detection output and 0V); maximum output current: 300mA;
residual voltage: below 2V
Timer Function / Range Delay off, delay on, one-shot timer, on/off, on one-shot; adjustment range: 1–9999 ms
Rated Value NPN: Typical: Maximum 900 mW (max 32 mA at 24V; max 47 mA at 13V
Mutual Interference Prevention F0,F1,F2,F3Four-channel interference suppression



Smart Fiber Optic Amplifier with Dual Display One-Button Setup 50μs Response for Industrial Automation 2

Smart Fiber Optic Amplifier with Dual Display One-Button Setup 50μs Response for Industrial Automation 3
