Micro Laser Photoelectric Sensor, 0-80mm Adjustable, NPN/PNP Output, Line Laser

Brand Name:	KRONZ
Model Number:	BQ24-DT80P
MOQ:	1
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Detection Distance:

0-80mm Adjustable Distance

Response Time:

< 1 Ms

Type:

PNP Has 1 Output

Control Output:

NPN Open-collector Output

Power Supply:

12 To 24 VDC

Light Source:

Red 635NM, 4-element LED

Supply Ability:

10000 pieces per month

Highlight:

Micro laser photoelectric sensor with adjustable range

Photoelectric sensor NPN PNP output

Line laser photoelectric sensor 80mm

Product Description

BP18Y Photoelectric Sensor | 10m Range | PNP Output | IP67 Rated

The BQ24-DT80P Micro Laser Photoelectric Sensor delivers high precision in a compact housing. Its visible 635nm red line laser (12° fan beam) simplifies alignment and setup. With an adjustable 0-80mm sensing range and ultra-fast <1ms response, it's perfect for rapid automation tasks.

Choose your output: NPN provides both NO and NC signals simultaneously, while PNP offers a NO output. It features robust 12-24VDC power, short-circuit protection, and superior immunity to electrical noise and ambient light (up to 30,000 lux).

Ideal for object detection, counting, and positioning in electronics assembly, packaging, and robotics. Its industrial-grade construction ensures reliable performance despite vibration and wide temperature swings (-10°C to +55°C).

Feature	Speciication
Sensing Type	0 - 80mm (adjustable)
Part Number	BQ24-DT80P
Output Type	PNP signal output
Output Current	Max. 100mA @ 12-24VDC
Beam Type	12° line spot pattern

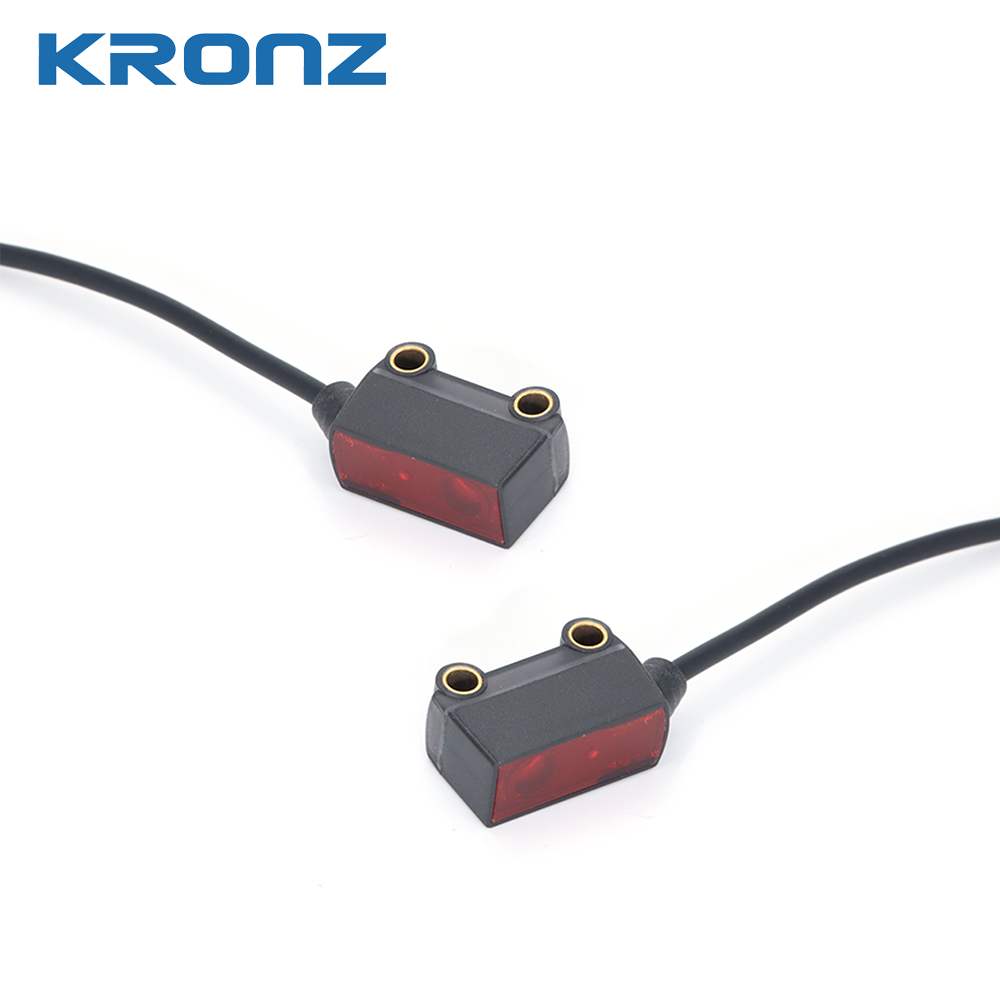

Micro Laser Photoelectric Sensor, 0-80mm Adjustable, NPN/PNP Output, Line Laser 0

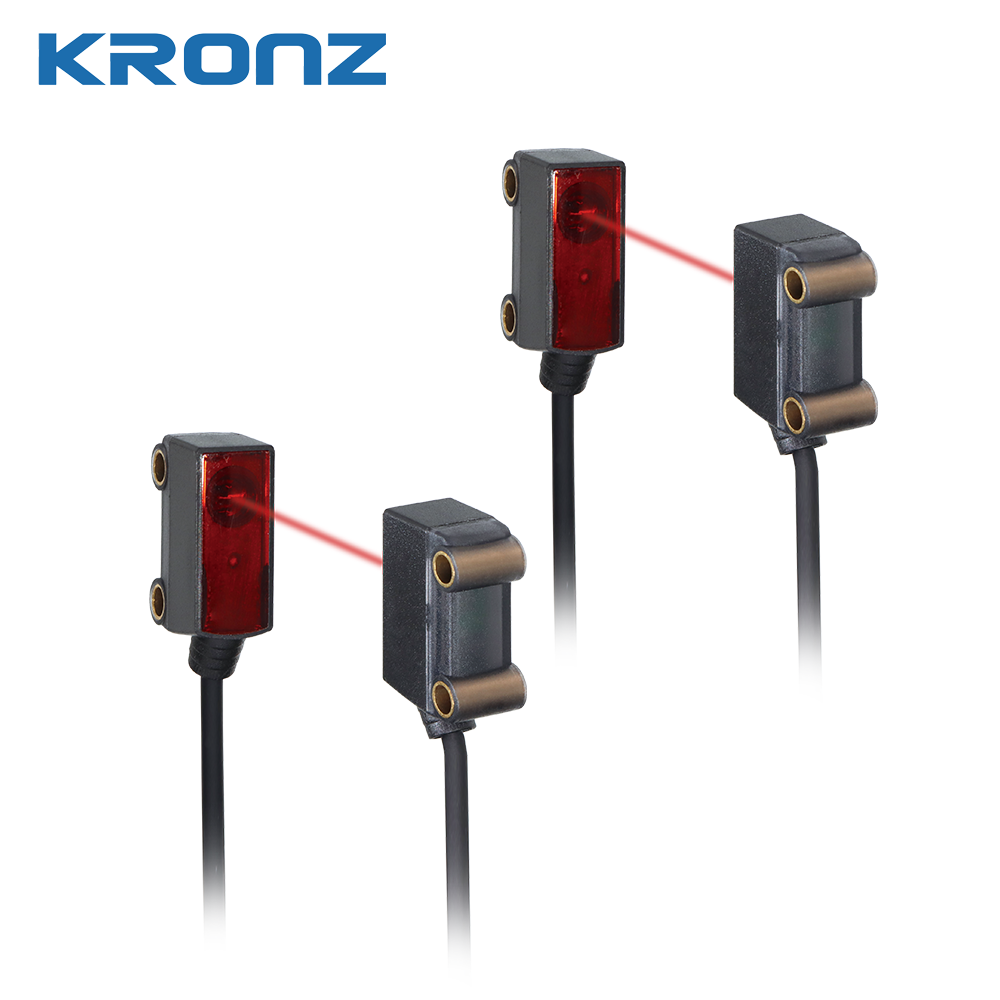

Micro Laser Photoelectric Sensor, 0-80mm Adjustable, NPN/PNP Output, Line Laser 1

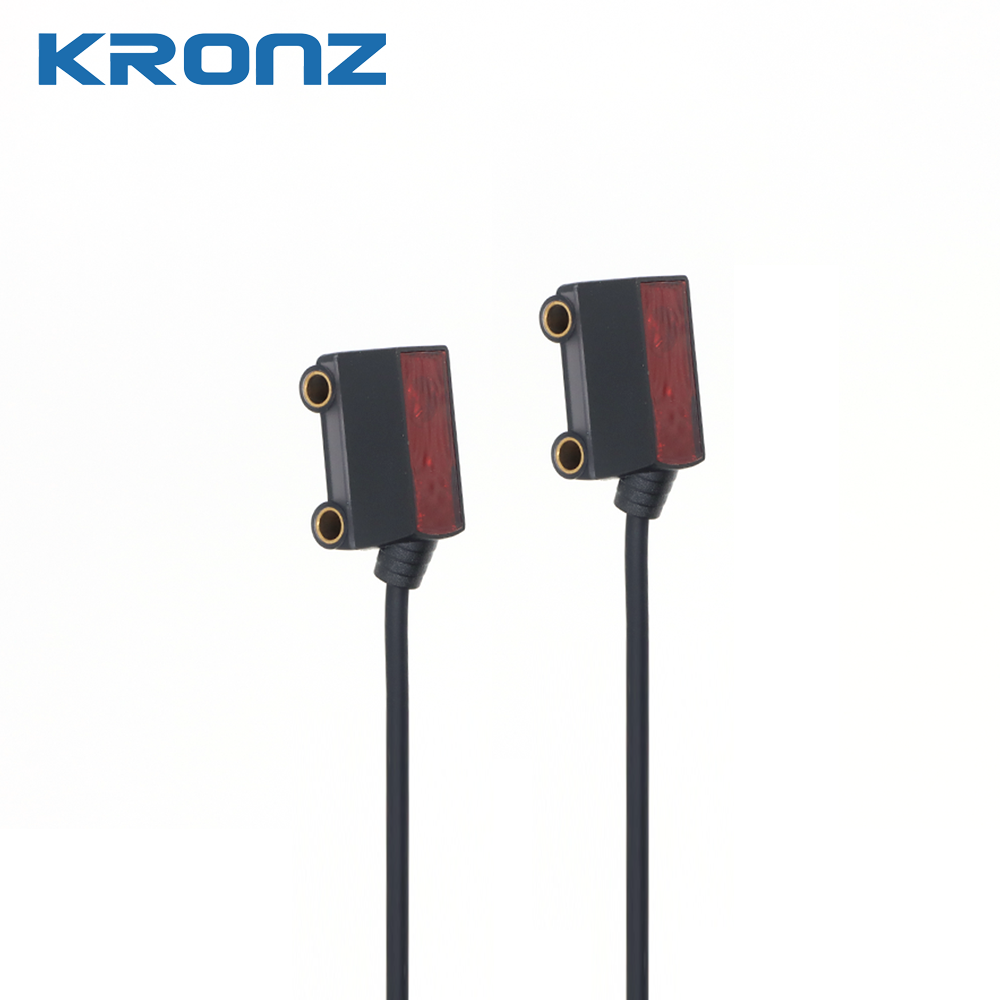

Micro Laser Photoelectric Sensor, 0-80mm Adjustable, NPN/PNP Output, Line Laser 2

Micro Laser Photoelectric Sensor, 0-80mm Adjustable, NPN/PNP Output, Line Laser 3
