Diffuse Photoelectric Sensor 10-500mm Detection NPN/PNP Output 24V 100mA Red Light 635nm

Brand Name:	KRONZ
Model Number:	BP18Y-D500N
MOQ:	1
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Detection Distance:

10mm-500mm

Sensing Method::

Direct Diffuse

Output Type:

NPN (Open Collector)

Vibration Resistance:

10 To 55H

Power Supply:

18 VDC

Connection:

2 M Cable

Supply Ability:

10000 pieces per month

Highlight:

Diffuse photoelectric sensor 10-500mm detection

NPN/PNP output photoelectric sensor 24V

Red light 635nm photoelectric sensor

Product Description

BP18Y-D500N Photoelectric Sensor Diffuse Reflective 10-500mm NPN/PNP Output <1ms 12-24VDC

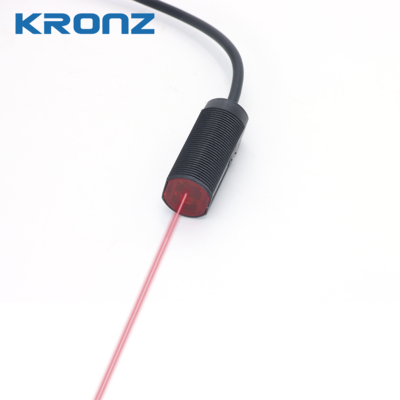

The BP18Y-D500N is a direct diffuse photoelectric sensor offering a 10-500mm detection range. It features a high-speed <1ms response time for rapid object detection in automation and packaging applications.

This versatile sensor provides both NPN and PNP open-collector outputs (24V, 100mA) and is easily configured for Light-On or Dark-On operation via a control wire. The high-intensity 635nm red LED ensures reliable performance, even in challenging ambient light up to 30,000 lux sunlight.

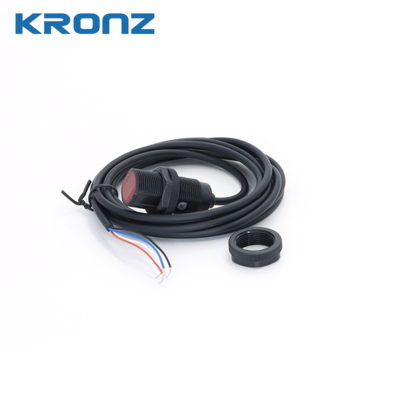

Operating from a 12-24VDC power source, it includes key features like short-circuit protection and anti-interference. Built for industrial environments, it withstands temperatures from -10 to +55°C and significant vibration. The unit comes with a 2-meter cable for easy installation.

Feature	Speciication
Sensing Type	10 - 500mm
Part Number	BP18Y-D500N
Output Type	NPN open collector output
Indicator	LED
Ambient Temperature	-10 to +55℃ (non-freezing)

Diffuse Photoelectric Sensor 10-500mm Detection NPN/PNP Output 24V 100mA Red Light 635nm 0

Diffuse Photoelectric Sensor 10-500mm Detection NPN/PNP Output 24V 100mA Red Light 635nm 1

Diffuse Photoelectric Sensor 10-500mm Detection NPN/PNP Output 24V 100mA Red Light 635nm 2

Diffuse Photoelectric Sensor 10-500mm Detection NPN/PNP Output 24V 100mA Red Light 635nm 3
