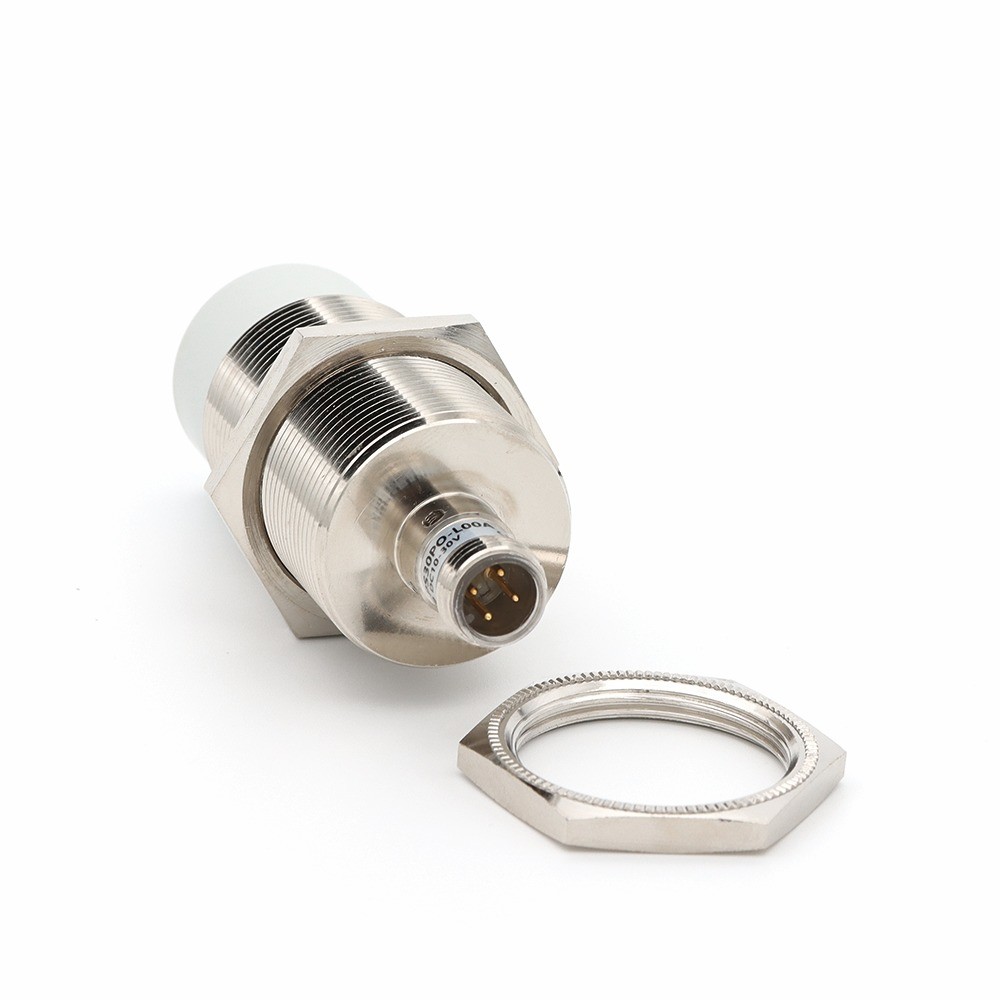

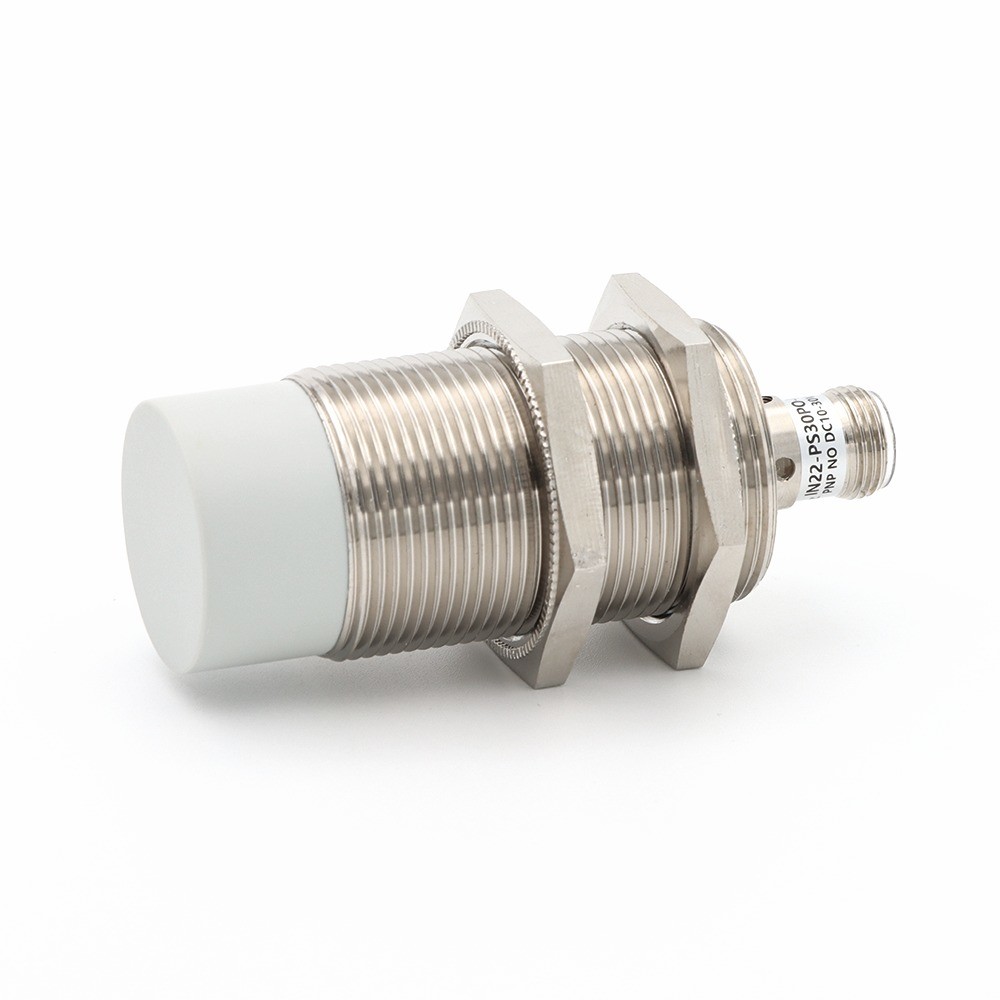

M12 Connector Inductive Sensors Non Flush 15mm IP67 LED Display 200Hz
  • Name
  • Name

M12 Connector Inductive Sensors Non Flush 15mm IP67 LED Display 200Hz

Brand Name: KRONZ
Model Number: IN15-M30DO75-M0A/L
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Installation Type:
Non-flush
Snesing Range:
15mm
Residual Voltage:
0...12mm
Supply Voltage:
10-30V DC
Load Current:
≤100mA
Current Consumption:
≤1mA
Switching Frequency:
200Hz
LED Display:
Yellow LED
Supply Ability:
100000 pieces per month
Highlight:

M12 Connector Inductive Sensors 15mm

,

M12 Connector Inductive Sensors IP67

,

LED Display Inductive Sensors 200Hz

Product Description
M12 Connector Inductive Sensors Non Flush 15mm IP67 LED Display 200Hz
Key Specifications
Attribute Value
Installation Type Non-flush
Sensing Range 15mm
Residual Voltage 0...12mm
Supply Voltage 10-30V DC
Load Current ≤100mA
Current Consumption ≤1mA
Switching Frequency 200Hz
LED Display Yellow LED
Product Overview

The inductive sensor is a device that uses the principle of electromagnetic induction to detect or measure objects. It can detect ferrous metal targets without physical contact, and also detect non-ferrous metal targets such as aluminum, brass, and copper.

  • Installation type: Non-flush
  • Sensing range Sn: 15mm
  • Output function: DC 2wire NO
  • Supply voltage: 10-30VDC
  • Connection type: M12 connector
  • Housing material: Brass, nickel-plated
Technical Specifications
Installation type Non-flush
Sensing range 15mm
Assured sensing range 0…12mm
Residual voltage ≤6V
Supply voltage 10…30VDC
Load current ≤100mA
Current consumption ≤1mA
Switching frequency 200Hz
Tolerance(Sr) ≤±10%
Hysteresis range 1…20%
Repeatability ≤3%
Ambient temperature -25℃…70℃
Ambient humidity 35-95%RH
Reverse polarity protection Yes
Withstand voltage 1000V/AC 50/60Hz 60s
Insulation resistance ≥50MΩ(500VDC)
Vibration resistance Complex amplitude 1.5mm 10…50Hz(2 hours in each of the X,Y,Z directions)
Enclosure rating IP 67
LED display Yellow LED
Housing material Brass, nickel-plated
Connection type M12 connector
Dimensional Drawing
M12 Connector Inductive Sensors Non Flush 15mm IP67 LED Display 200Hz 0
Wiring Diagram
M12 Connector Inductive Sensors Non Flush 15mm IP67 LED Display 200Hz 1
