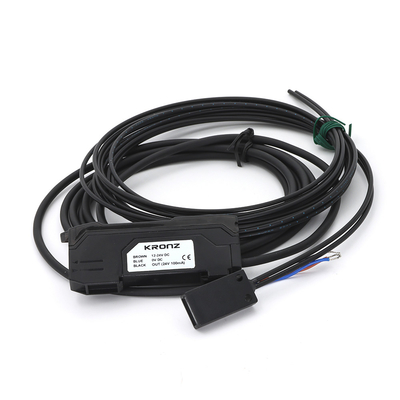

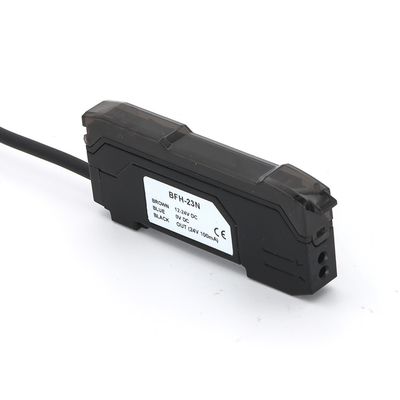

Digital Optical Fiber Sensors NPN/PNP Type Cable M8 Connect Method Intelligent

Brand Name:	KRONZ
Model Number:	BFH-23N
MOQ:	5 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Description:

Optical Fiber Sensor\

Mounting Type:

Nut Fixing

Theory:

Red LED

Output:

12-24V DC

Model:

NPN/PNP Type

Light Source:

Red Light-emitting Diode LED Tube Body

Output Selection:

LIGHT-ON/DARK-ON (switch Selection)

Power Supply:

12-24VDC±10%,Ripple Voltage (p-p) Max 10%

Supply Ability:

100000 pieces per month

Highlight:

PNP Optical Fiber Sensors

M8 Connect Optical Fiber Sensors

Optical Fiber Sensors NPN

Product Description

Digital Optical Fiber Sensors NPN/PNP Type Cable M8 Connect Method Intelligent

Product Attributes

Attribute	Value
Description	Optical Fiber Sensor
Mounting Type	Nut fixing
Theory	Red LED
Output	12-24V DC
Model	NPN/PNP Type
Light source	Red light-emitting diode LED tube body
Output selection	LIGHT-ON/DARK-ON (switch selection)
Power supply	12-24VDC±10%, Ripple voltage (p-p) Max 10%

Product Features

Four modes for flexible selection (MEGA/SUPER/FINE/HIGH SPEED)
Automatically sets optimal brightness and threshold for various workpiece surfaces
Strong stability with high response speed (up to 50 μs)
Features light intensity self-adaptation, optical power self-compensation, zero point migration, and delay functions

Technical Specifications

Type: Opening light single-path output

Model: NPN: BFH-23N, BFH-23NB | PNP: BGH-23P, BGH-23PB

Connect method: Cable | M8

Light source: Red light-emitting diode LED tube body

Response time: MEGA: 8ms (13ms with anti-light interference)
SUPER: 8ms (1.6ms with anti-light interference)
FINE: 250μs (400μs with anti-light interference)
HSP: 50μs (200μs with anti-light interference)

Output selection: LIGHT-ON/DARK-ON (switch selection)

Delay function: Disconnection delay timer / Activation delay timer / Single-shot timer

Control Output: NPN: NPN open-collector 24V; output Max:100mA; residual voltage:1V or smaller
PNP: PNP open-collector 24V; output Max:100mA; residual voltage:1V or smaller

Protection circuit: Inverse electrode protection, over-current protection, and over-voltage protection

Power supply: 12-24VDC±10%, Ripple voltage (p-p) Max 10%

Power consumption: NPN: Regular: Max 900mW (24V,Max 36mA;12V,Max 48mA)
PNP: Regular: Max 950mW (24V,Max 39mA;12V,Max 52mA)
(Note: "High-speed" mode increases power consumption by 160mW)

Environmental specifications: Ambient brightness: Incandescent lamp: Max 20000Lux
Temperature: -20~+55°C (No freezing)
Humidity: -35~+85°C (No condensation)
Vibration resistance: 10~55Hz, 1.5mm amplitude, 2 hours per direction
Impact resistance: 500m/s², 3 times per axis

Physical specifications: Shell material: PC
Size: 30.3mm(H) x 9.8mm(W) x 71.8mm(D)
Weight: 50g

Product Dimensions

Circuit Diagram
