Home /Products/RJ45 Connector/Ethernet IP RJ45 Connector Pre Assembled Cable

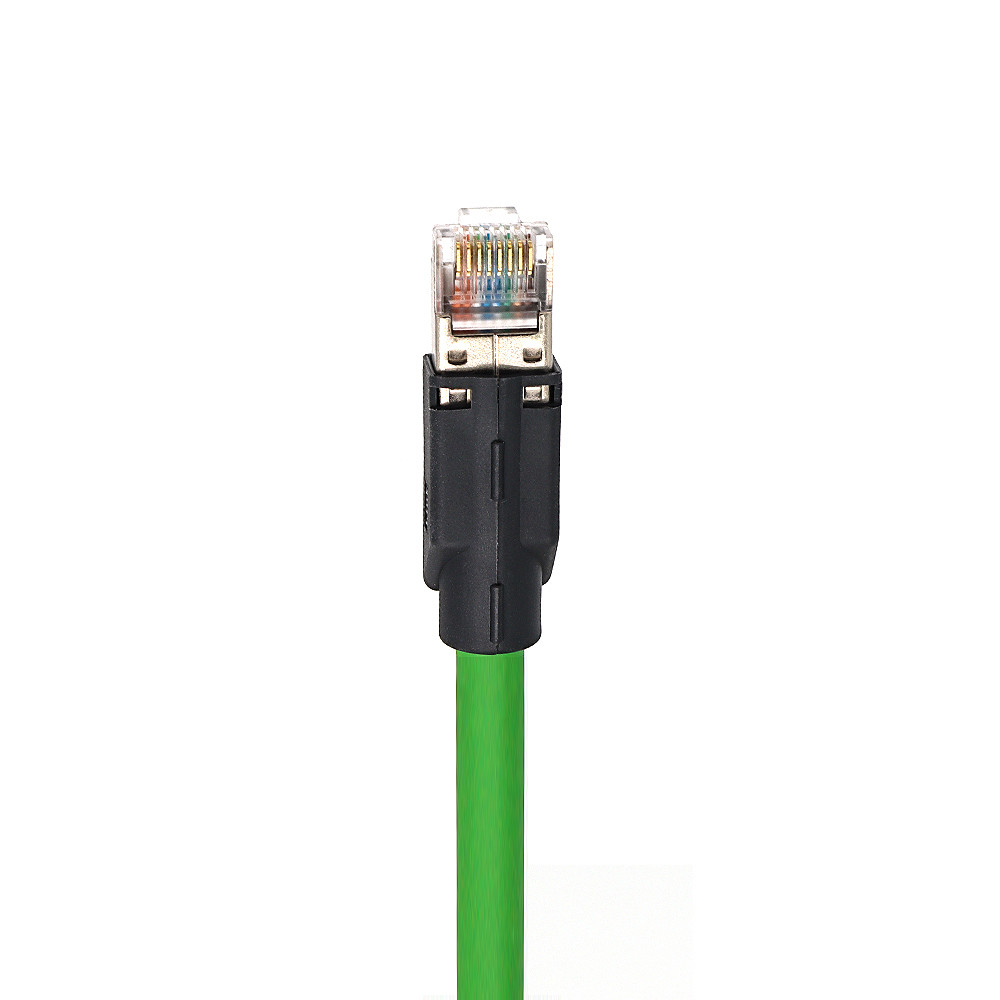

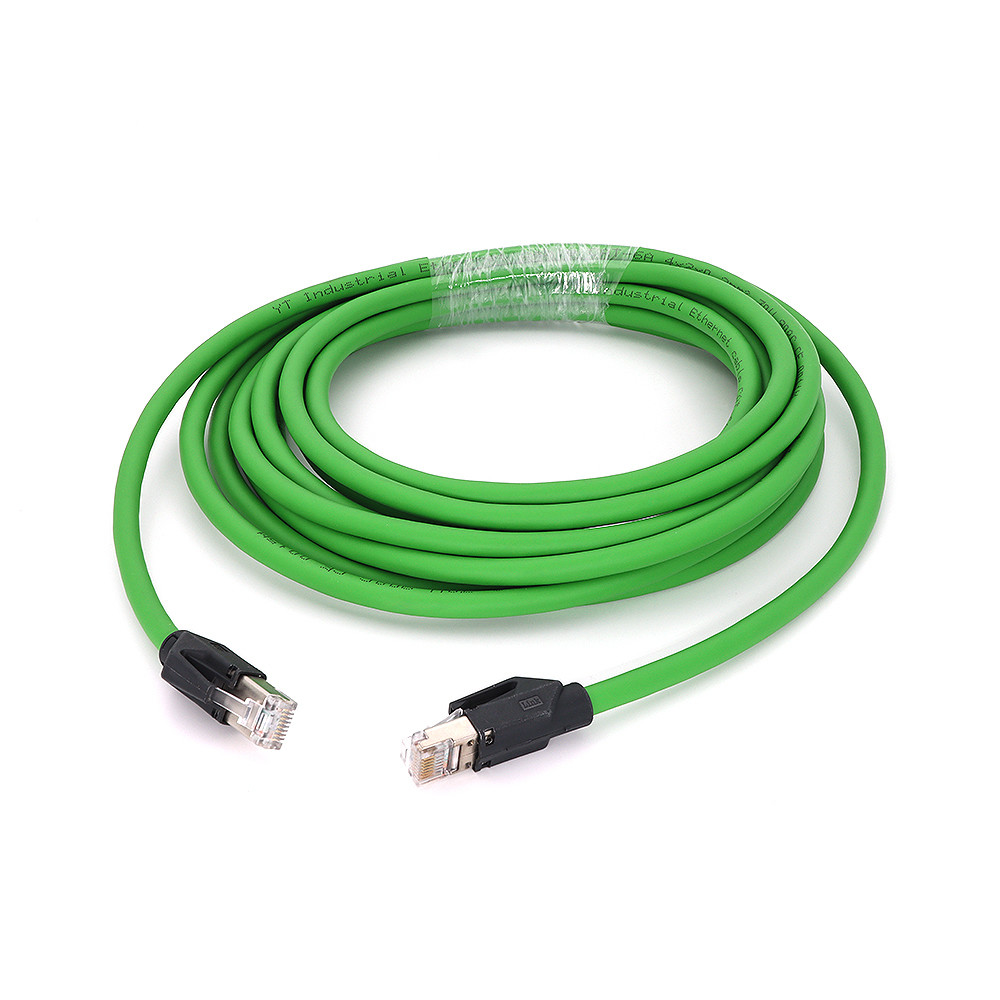

Ethernet IP RJ45 Connector Pre Assembled Cable

50 pieces
MOQ
Negotiable
Price
Ethernet IP RJ45 Connector Pre Assembled Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: RJ45
Description: Pre-assembled Cable With RJ45 Connector
Pin: 8
Cable Color: Green
Material: PVC
Degree Of Protection: IP20
Mating Cycles: >100
Ambient Temperature: -25~+85℃
Highlight:

RJ45 Connector Pre Assembled Cable

,

Ethernet IP RJ45 Connector

,

RJ45 Ethernet IP Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: RJ45S-2/E621
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

RJ45 Connector Pre-assembled Cable IE Connector Straight Ethernet IP



Product Description

The RJ45 connector is a common network connection method used to interconnect network devices. By using twisted pairs, many devices can be connected to a device called a switch to form a large network. At the same time, the RJ45 interface can also be used to connect a Modem (modem) to achieve remote transmission of data.

Ethernet IP RJ45 Connector Pre Assembled Cable 0

Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Wire color PIN Rated current Voltage Wire gauge Cable outlet Length Model No.
Ethernet IP RJ45 Connector Pre Assembled Cable 1 1 = WH/OR
2 = OR
3 = WH/GN
4 = BU
5 = WH/BU
6 = GN
7 = WH/BN
8 = BN		 8PIN 1.5A 48V 4×2×0.25,shielded
(4×2×24AWG)
yellowish green,
PVC,drag chain,
OD=8.0		 Straight 2M RJ45S-2/E621
5M RJ45S-5/E621
10M RJ45S-10/E621



Tag:

RJ45 Connector Plug

RJ45 Field Assembly Connector

RJ45 Field Wireable Connector
