Quasi Flush Inductive Sensors 2mm NPN Normally Open 10-30VDC Output

Brand Name:	KRONZ
Model Number:	IS2-M8NO60-S0B/D
MOQ:	5 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Features:

Position Detection

Series:

IS2-M8 Series

Product Name:

Inductive Proximity Sensor

Mounting Type:

Quasi-flush

LED Display:

Red

Working Voltage:

10-30VDC

Connection Type:

M8 Connector

Protection Grade:

IP67

Supply Ability:

100000 pieces per month

Highlight:

Quasi Flush Inductive Sensors

,

Inductive Sensors 2mm

,

NPN Inductive Sensors 30VDC

Product Description

Quasi Flush Inductive Sensors 2mm NPN Normally Open 10-30VDC Output

Product Specifications

Attribute	Value
Series	IS2-M8 Series
Product Name	Inductive Proximity Sensor
Features	Position detection
Mounting Type	Quasi-flush
LED display	Red
Working voltage	10-30VDC
Connection type	M8 connector
Protection grade	IP67

Key Features

Installation type: Quasi-flush
Sensing range Sn: 2mm
Output function: NPN Normally Open
Supply voltage: 10-30VDC
Connection type: M8 connector
Housing material: Stainless steel

Technical Data

Parameter	Specification
Installation type	Quasi-flush
Sensing range Sn	2mm
LED display	Yes
Working voltage	10-30VDC
No load current	<10mA (24V)
Max. load current	100mA
Voltage drop	<2.0V
Switching frequency	3kHz
Tolerance(Sr)	<10%
Leakage current	<0.01mA
Response time	0.1ms
Temperature drift	<10%sr
Short-circuit protection/Reverse polarity protection	Yes
Overload current protection	220mA
Protection grade	IP67
Ambient temperature	-25℃ to +70℃
Sensing surface material	POM
Connection type	M8 connector

Product Diagrams

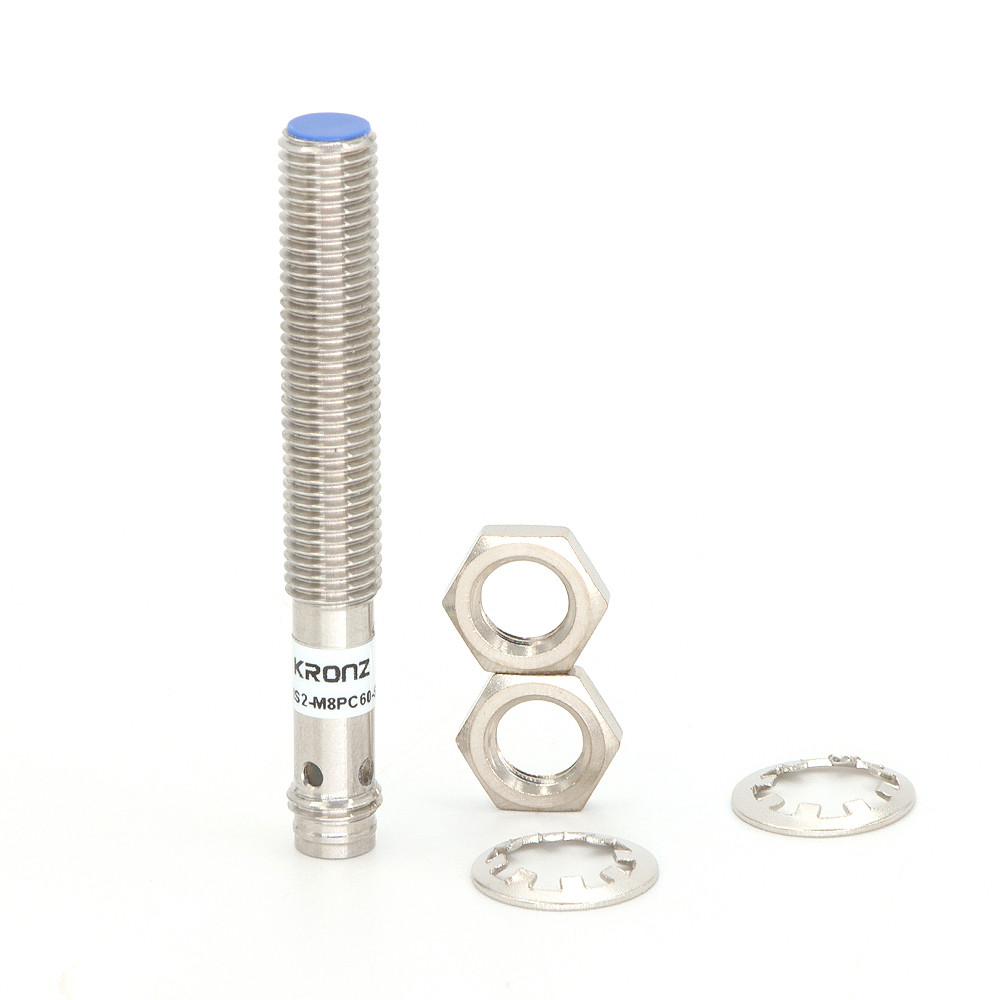

Quasi Flush Inductive Sensors 2mm NPN Normally Open 10-30VDC Output 0

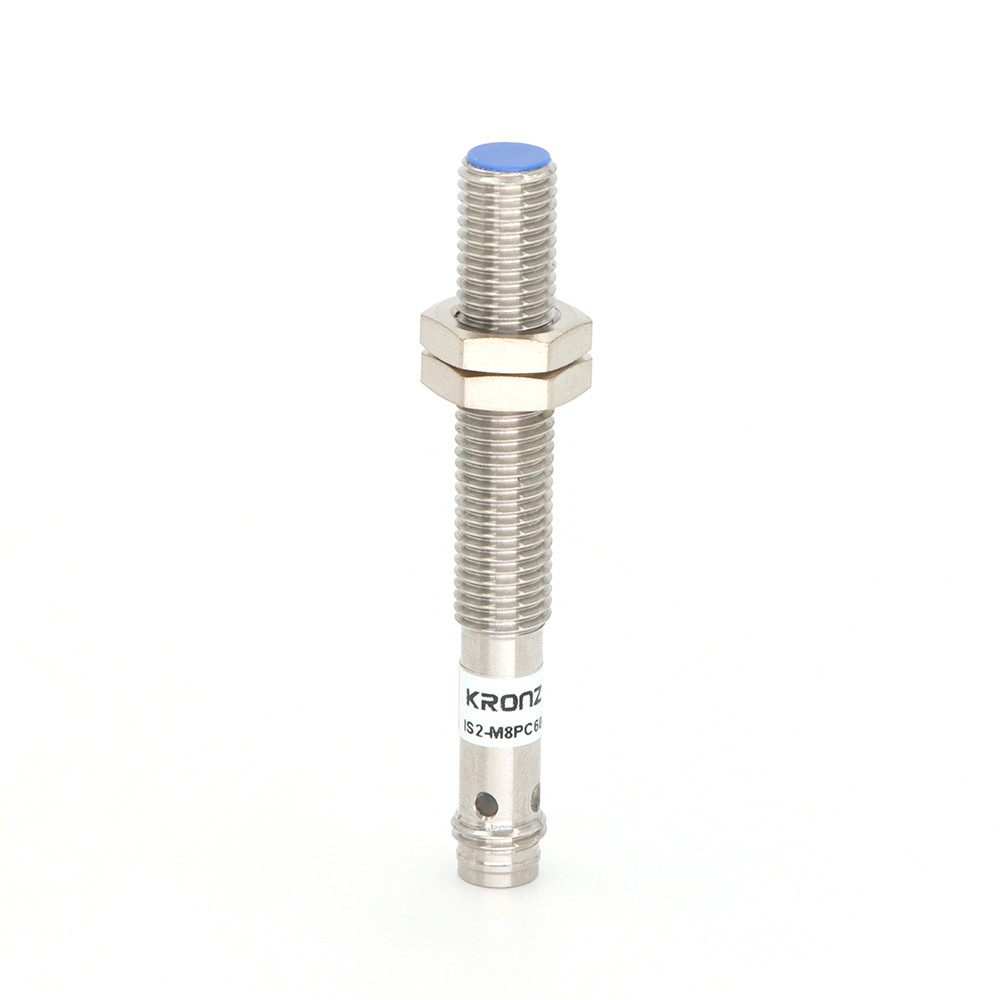

Quasi Flush Inductive Sensors 2mm NPN Normally Open 10-30VDC Output 1
