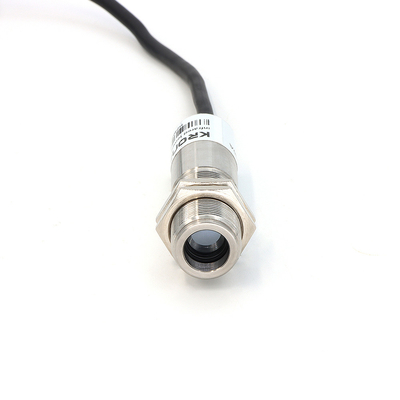

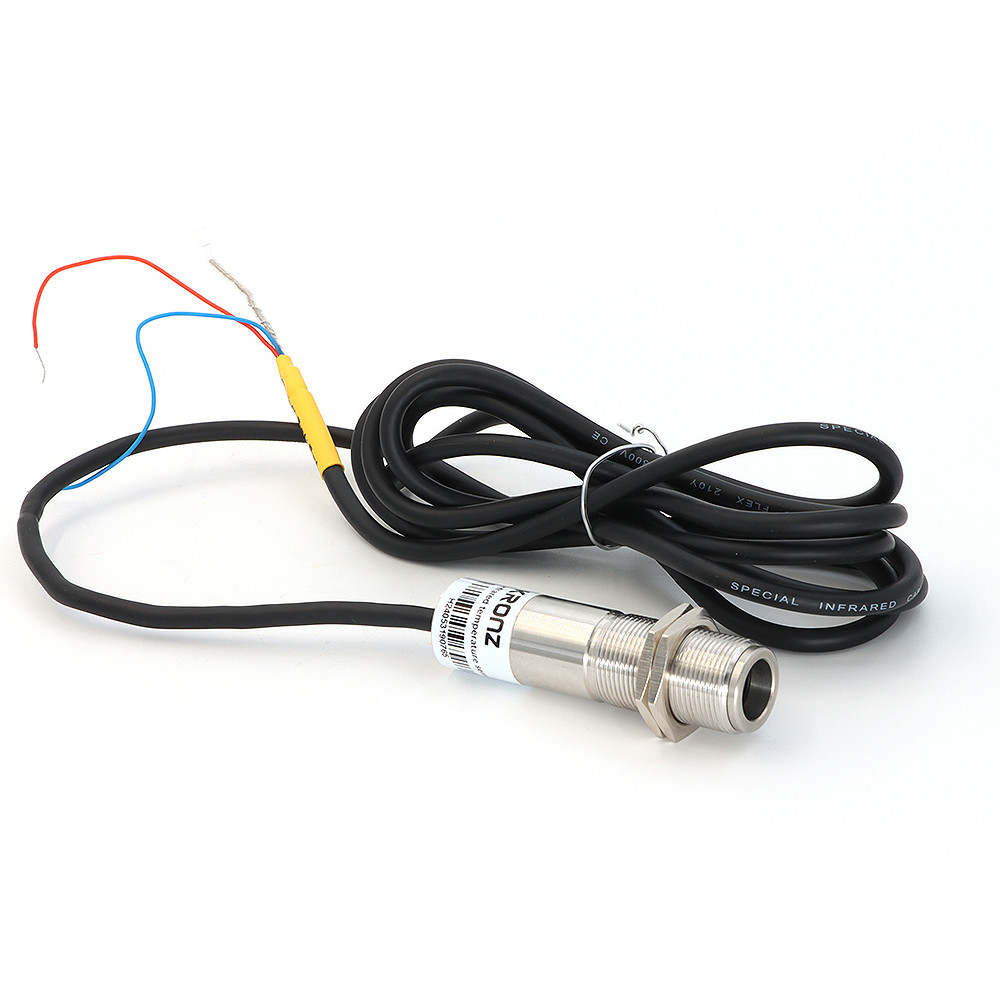

Name: Temperature Sensor -20-1200℃ Range Infrared Thermometer With 304 Stainless Shell
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: KTP-TM18-500A
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Description: Short And Small Online Infrared Thermometer

Mounting Type: Easy To Instal

Output: 4-20mA

Probe Length: Only 68mm

Wide Measuring Range: -20-1200℃(Segmentable)

Shell: Standard 304 Stainless Shell

Optical Resolution: 20:1 (at 90% Energy)

Voltage: 12-24 V DC

Highlight:

304 Stainless Shell Infrared Thermometer

Temperature Sensor Infrared Thermometer

304 Stainless Shell Temperature Sensor

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: KTP-TM18-500A

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

Temperature Sensor -20-1200℃ Range Infrared Thermometer With 304 Stainless Shell

Product Description

Temperature Sensor -20-1200℃ Range Infrared Thermometer With Easy-To-Read Display

KTP-TM18-500A series short &small online infrared thermometer
Highly cost-effective,versatile,compact,easy to install,and adaptable to a variety of work environment,the temperature effect is outstanding, it is an ideal choice for OEMs(system integrators)and end users.
Specifically designed for equipment with a temperature range of -20-1200℃(segmentable). Made of standard 304 stainless steel protective shell,durable;no cooling time, withstand temperatures up to 60℃ .
There is a special integrated design of four-wire,three-wire and two-wire systems, users can complete the switching without the help of any tools,which greatly facilitates users to choose supporting equipment. Enhanced anti-interference to work in increasingly complex electromagnetic environments.

Product Features
Probe length	Only 68mm
Wide measuring range	-20-1200℃(Segmentable)
Shell	Standard 304 stainless steel
Optical resolution	20:1 (at 90% energy)
Response time	75 milliseconds (95% response)
Voltage	12-24V DC ultra wide voltage
Thermometer parameters
Environmental level	IP64
Ambient temperature	0-60℃
Storage temperature	-20-80℃
Relative humidity	10-95%, no condensation
Dimensions	M18*1
Total length	68mm
Weight	128g
Measurement parameters
Temperature range	0-500℃(can be segmented)
D:S	20:1
Response wavelength	8-14µm
Measurement accuracy	±1.5% of the measured value or ±2.5℃,whichever is greater (ambient temperature:23℃±5℃)
Repeatability	±1℃of measured value
Emissivity	fixed 0.95 or 1.0(default 1.0)
Resolution	1℃
Electronic parameters
Output	4-20mA
Cable length	2 meters standard cable or customized longer cable
Output impedance	50 ohms (@24V DC )
Power supply	12-24V DC,20mA
Wire system	four,three,two wire systems can be switched freely
