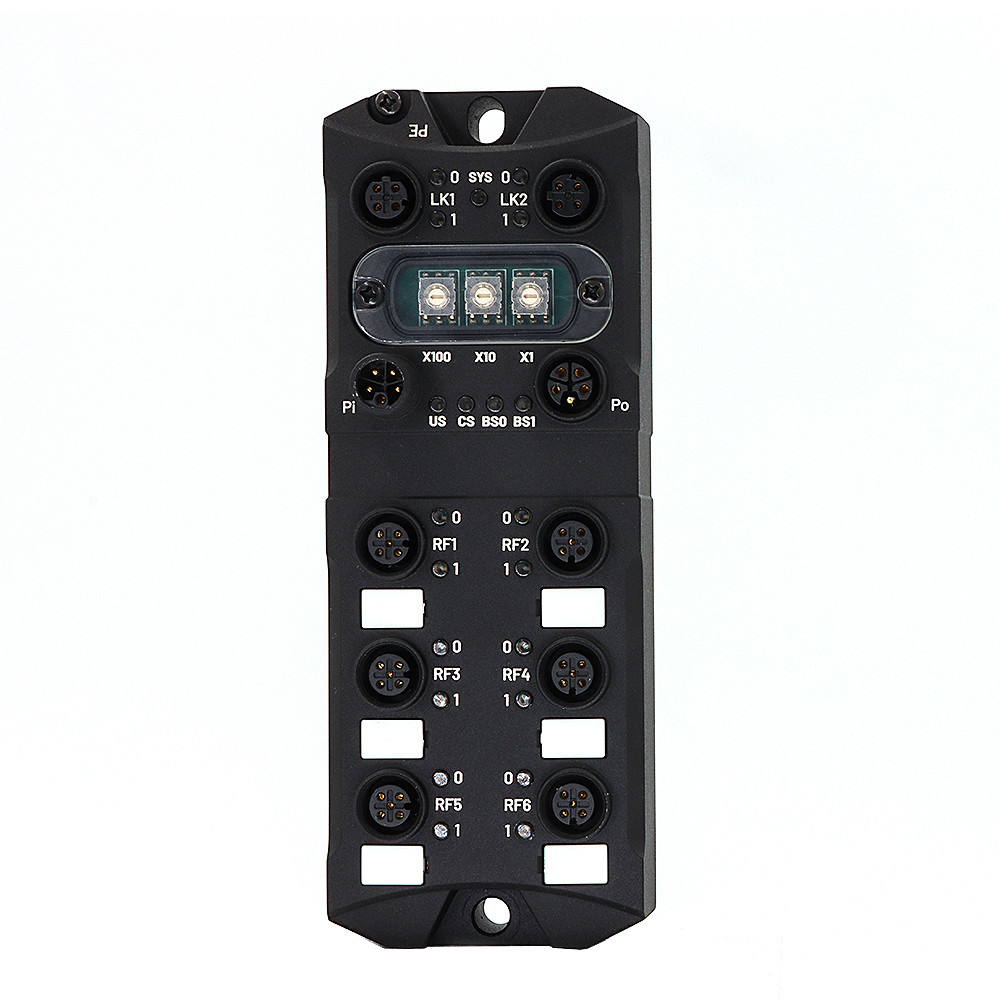

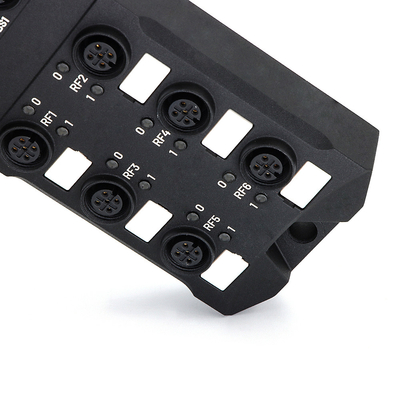

Description | RFID Gateway Module |
Use | Industrial communications |
Output | 18-30VDC |
Operating Temperature | -30℃~+70℃ |
Interface | RS-485 |
Application | Industrial Communication |
Current consumption | <80mA@24V |
RFID Connector | M12 5Pin A coded Female |
Design | Dual network ports with cascading support 6 RFID ports |
Application Area | Harsh industrial environments requiring multiple RFID connections to bus networks |
LK1/LK2 Ethernet interface uses 4Pin-M12-DCODED-Female connector:
Pin | Assignment | Description |
---|---|---|
1 | TD+ | Tranceive Data+ |
2 | RD+ | Receive Data+ |
3 | TD- | Tranceive Data- |
4 | RD- | Receive Data- |
Pi/Po Power supply interface uses 5Pin-M12-LCODED-Male/Female connector:
Pin | Assignment | Description |
---|---|---|
1 | US (+24V) | System power supply positive |
2 | GNDL (0V) | Load power supply negative |
3 | GNDS (0V) | System power supply negative |
4 | UL (+24V) | Load power supply positive |
5 | PE | Protective earth |
The gateway module's operational status is displayed through LED indicators in three categories: system status, RFID status, and bus status.
Name | Color | State | Description |
---|---|---|---|
SYS | Blue/Red | Off | The GM is power off |
Blue LED on | The GM has completed initialization and is operating normally | ||
Blue LED flashing | The GM is running at default settings | ||
Red LED on | The GM is in BOOT mode | ||
US | Blue/Red | Off | Undefined (not used) |
Blue LED on | All RFID port voltages are normal | ||
Red LED on | There is an abnormal voltage on a single RFID port | ||
Red LED flashing | There are abnormal voltages on multiple RFID ports |
Supply voltage | 18-30VDC |
Current consumption | < 80mA@24V |
Power protection | Overcurrent, reverse connection, surge, ESD, FFT protection |
Bus | EtherCAT |
Communication | Dual network ports with integrated switching function |
RFID port number | 6 |
Housing Material | Aluminum Alloy |
Weight | About 400g |
Dimensions | 167.92x62.92x31.90mm |
CE, FCC, RoHS, WEEE
