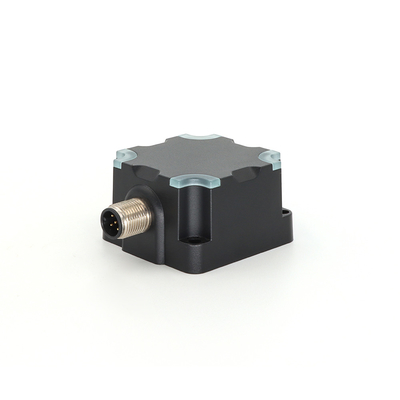

RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male

10 pieces
MOQ
Negotiable
Price
RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male
Features Gallery Product Description Chat Now
Features
Specifications
Series: Q50 Series
Description: Read/write Head
Operating Frequency: 13.56MHz
Antenna: Integrated
ISO Standard: ISO 15693
Communication Interface: RS-232
Supply Voltage: 9-30VDC
Transmission Speed: 9600~115200 Bps
Highlight:

RFID Recognition System Read Write Head

,

5Pin RFID System Read Write Head

,

Male RFID Recognition System Head
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: KRH-Q50G-R2
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male
Product Specifications
Attribute Value
Series Q50 Series
Description Read/write Head
Operating Frequency 13.56MHz
Antenna Integrated
ISO Standard ISO 15693
Communication Interface RS-232
Supply voltage 9-30VDC
Transmission Speed 9600~115200 bps
Product Description

HF read/write head (13.56MHz) with high reading and writing speed, designed to accelerate factory production rhythm and improve efficiency. Supports RS232 communication and can be quickly integrated into industrial networks such as PROFINET, EtherCat, and Ethernet/IP with the gateway module.

RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male 0 RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male 1
Technical Data
Order No. KRH-Q50G-R2
Radio Frequencies
Operating frequency 13.56MHz
Antenna Integrated
Read/Write range 0-100mm (Related to the tags)
ISO standard ISO 15693
Electrical Data
Supply voltage 9~30VDC
Current consumption <700mA@24V
Communication interface RS232
Transmission speed 9600~115200 bps
Transmission distance < 10m
Connector 5Pin-M12- ACODEDMale
Permitted ambient conditions
Operation temperature -30℃~+70℃
Storage temperature -40℃~+85℃
Degree of protection IP67 according to EN 60529
Shock resistance 7M2,500 m/s2,according to EN 60721-3-7
Vibration resistance 7M2,200 m/s2,according to EN 60721-3-7
Torsion and bending load Not permitted
Mechanical specifications
Housing Material PC + ABS
Housing color Black
Weight About 80g
Dimensions 50 x 50 x 30 mm
Type of mounting 4 X M4 screws, the length of the screw should be ≥ 20 mm
LED display 4 x LED, blue 2 x LED, red 2 x LED, yellow
Standards, specifications, approvals
Proof of suitability CE FCC RoHS WEEE
RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male 2 RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male 3
