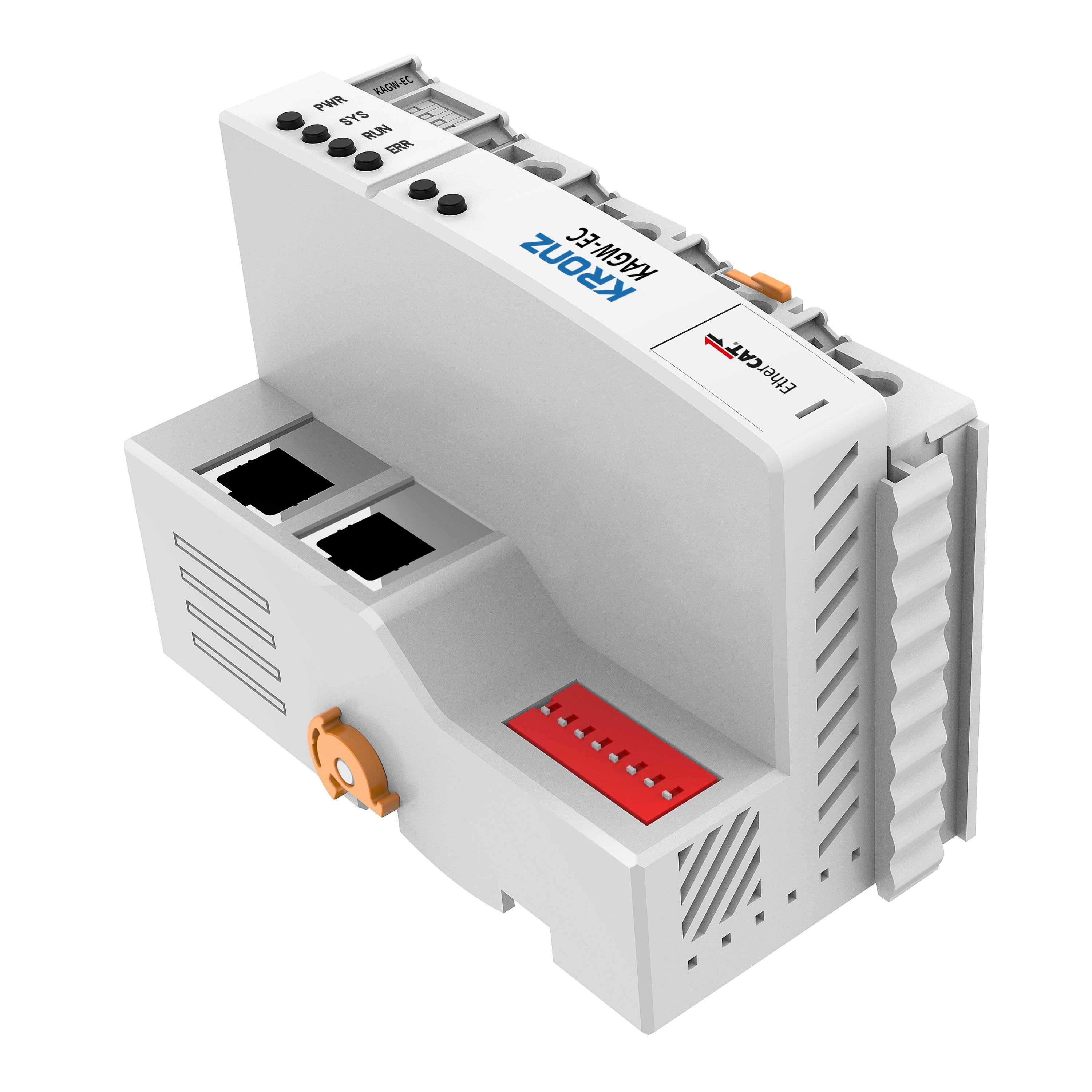

Industry Communication Remote IO Module Coupler EtherCAT / IP Ultimate Solution
  • Name
  • Name

Industry Communication Remote IO Module Coupler EtherCAT / IP Ultimate Solution

Brand Name: KRONZ
Model Number: KAGW-EC
MOQ: 5 pieces
Price: Negotiable
Packaging Details: Paper box packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou,China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
IO Module Coupler
Number Of Communication Bytes:
1024byte Input ~1024byte Output
Data Rate:
100Mbps
Interface Structure:
RJ45*2
Station Distance:
≤100m
Power Input:
18~36VDC
Power Output:
5VDC
Protection Grade:
IP20
Supply Ability:
100000 pieces per month
Highlight:

Remote IO Module Coupler

,

Industry Communication Remote IO Module Coupler

,

Remote IO Module Coupler EtherCAT

Product Description
Industry Communication Remote IO Module Coupler EtherCAT / IP Ultimate Solution
Product Specifications
Attribute Value
Product name IO module coupler
Number of communication bytes 1024byte input ~1024byte output
Data rate 100Mbps
Interface structure RJ45*2
Station distance ≤100m
Power input 18~36VDC
Power output 5VDC
Protection grade IP20
Product Overview

This Remote IO Module Coupler EtherCAT/IP Ultimate Solution provides robust industrial communication capabilities. EtherCAT (Ethernet Control Automation Technology) is an open architecture, Ethernet-based field bus system developed for automation applications requiring short update times, low communication jitter, and cost-effective hardware.

Technical Specifications
Parameter Specification
Product model KAGW-EC
Configuration method According to master station
Cascade topology number ≤65534
I/O topology number ≤32
Number of communication bytes 1024byte input ~1024byte output
Data rate 100Mbps
Interface structure RJ45*2
Station distance ≤100m
Power input 18~36VDC
Power output 5VDC
Isolation and withstand voltage 500V
Output power consumption 1800mA
Alarm information I/O errors and change alarms
Operation temperature -25~85℃
Storage temperature 0~55℃
Protection grade IP20
Module Diagrams
IO Module Coupler installation diagram showing proper mounting configuration
IO Module Coupler disassembly diagram showing component breakdown
Application Scenarios
Industrial application scenario showing EtherCAT network implementation
Adapter Connected to Power Supply
Power supply connection diagram for IO Module Coupler
