RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing

Brand Name: KRONZ
Model Number: RJ45S/C80
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Chiina
Certification:
CE
Document:
Product Brochure PDF
Product Name:
RJ45 Field-wirable Assembly Connector
Color:
Siliver
Contact Nut Material:
Zinc Alloy, Nickle-plated
IP Rate:
IP20
Pin Assignment:
8 PIN
Transmission Characteristics:
Cat5e
Data Rate:
10/100/1000 Mbit/s
Mating Cycles:
≥10
Supply Ability:
100000 pieces per month
Highlight:

RJ45 Field Assembly Connector

,

RJ45 Wireable Field Assembly Connector

,

RJ45 8 Pin Connector

Product Description
RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing
Product Overview

Industrial-grade RJ45 field-wirable connector with metal housing for reliable network connections in demanding environments.

Key Features
  • Field-installable design for easy on-site assembly
  • Durable metal housing for industrial applications
  • Supports 4-core twisted pair cable connections
  • Industrial-compatible design with reinforced components

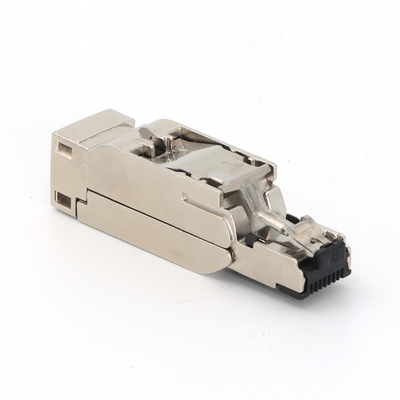

RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 0
Technical Specifications
Attribute Value
Product Name RJ45 Field-wirable Assembly Connector
Color Silver
Contact nut material Zinc alloy, nickel-plated
IP rating IP20
Pin assignment 8 PIN
Transmission characteristics Cat5e
Data rate 10/100/1000 Mbit/s
Mating cycles ≥10
Detailed Technical Data
Specification Value
Contact surface material Brass, gold-plated
Contact carrier material Zinc alloy, nickel-plated
Contact method IDC
Power transmission POE, POE+
Ambient temperature -25~+85℃
Electrical Specifications
Type Rated current Voltage Wire gauge Cable outlet Model No.
RJ45 1.5A 45V 0.14~0.34 mm²
26~22 AWG
Cable diameter: 6.5mm		 Straight RJ45S/C80

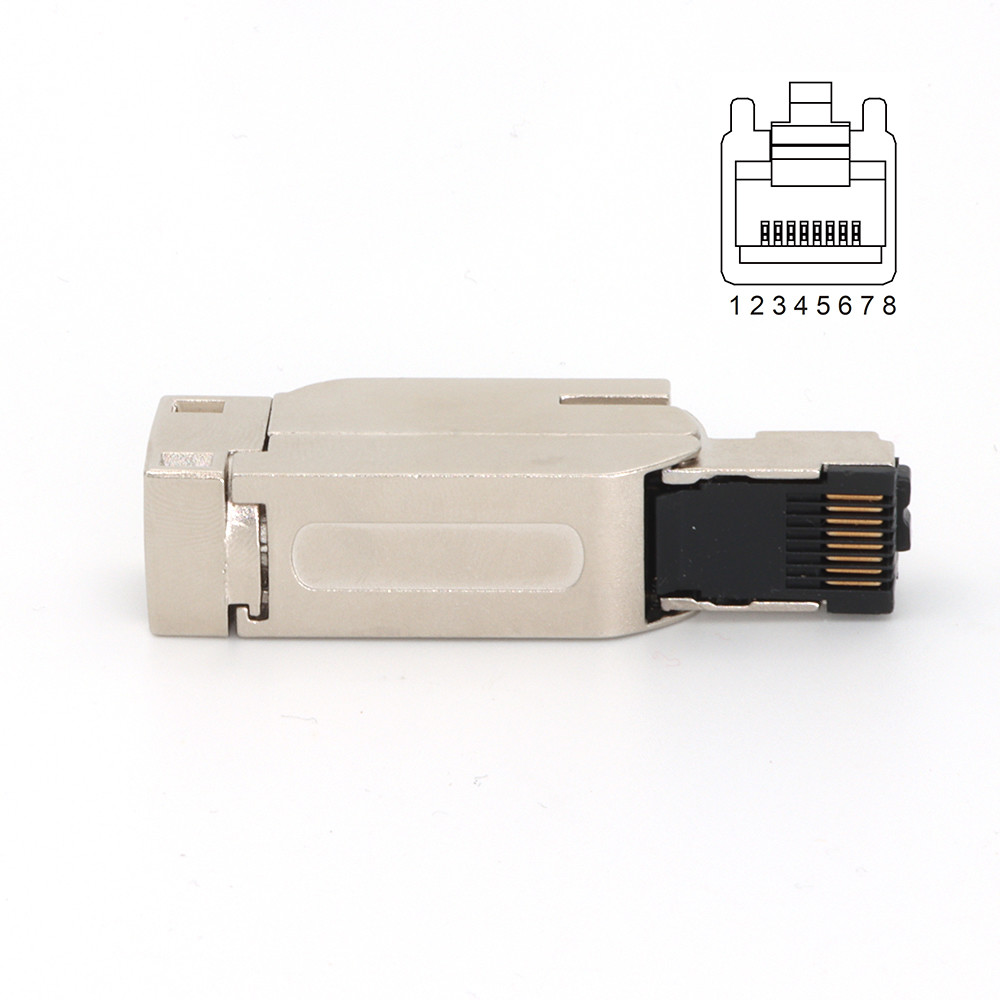

RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 1
