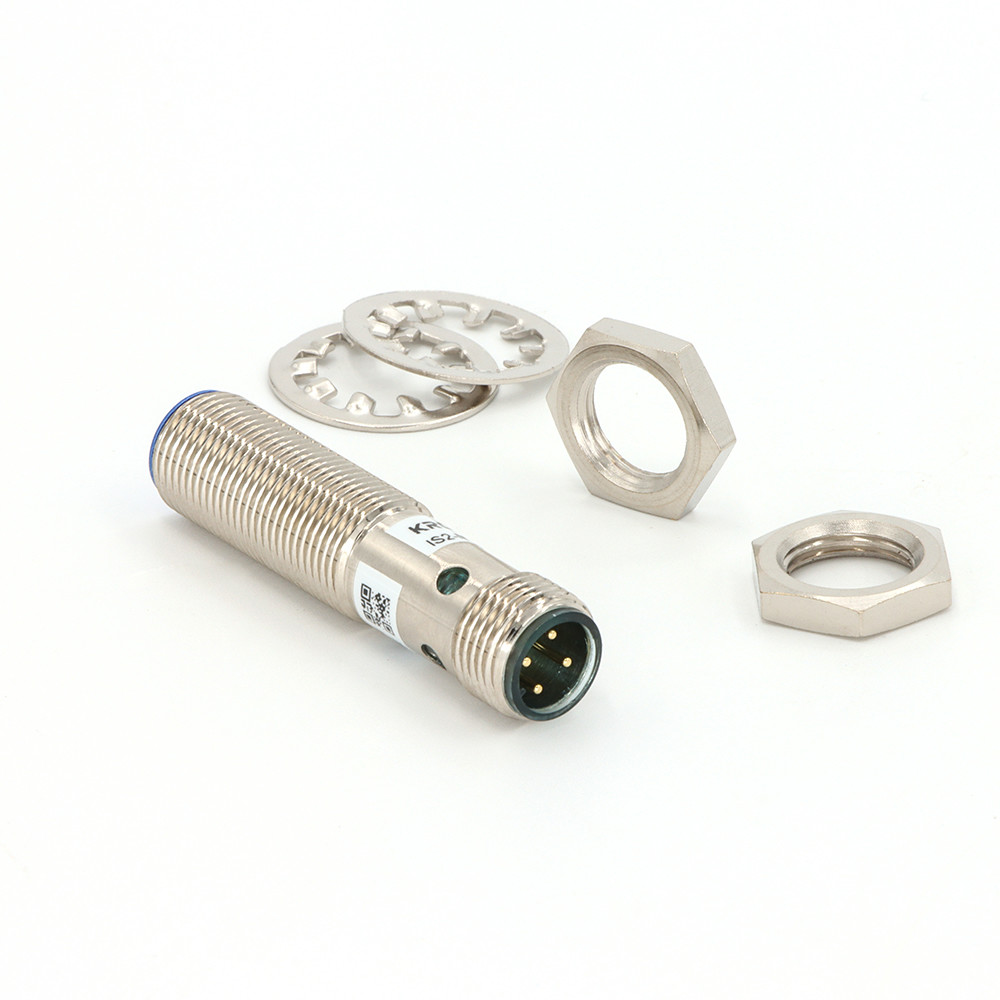

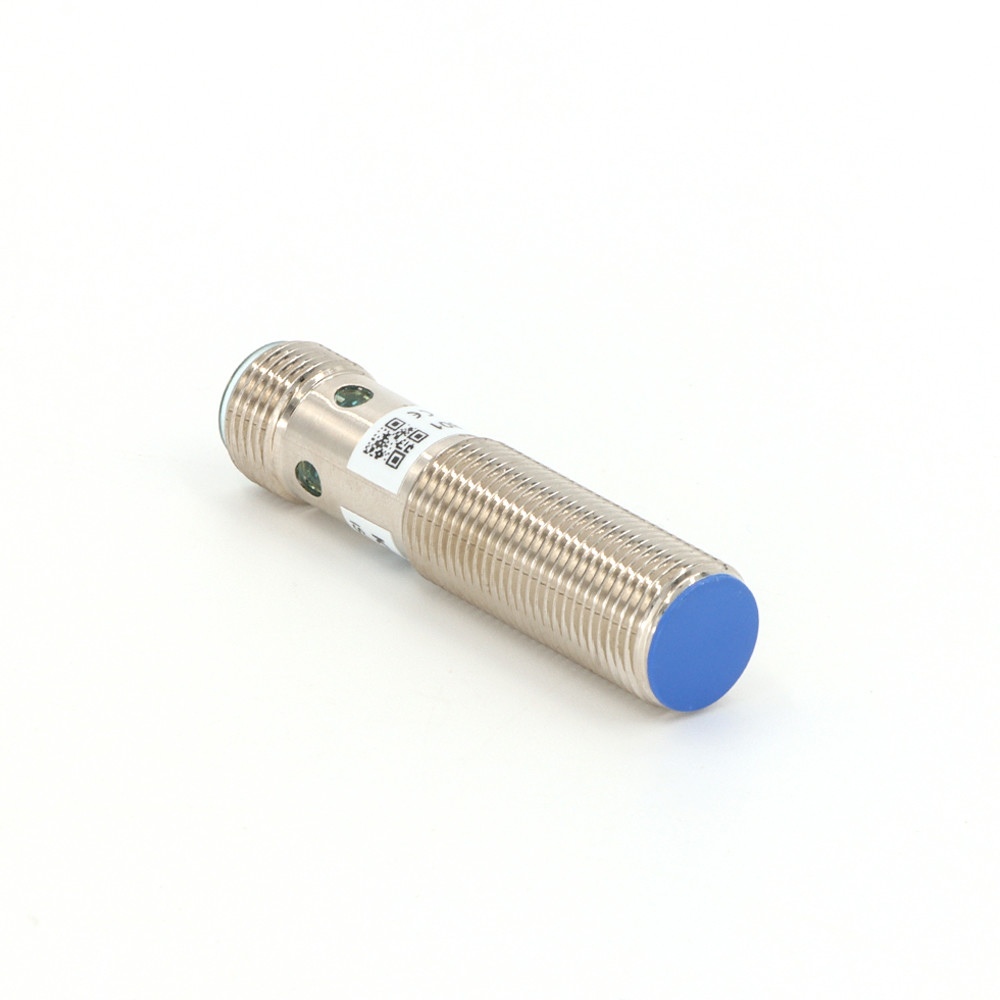

M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm

5 pieces
MOQ
Negotiable
Price
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Inductive Proximity Sensor
Mounting Type: Quasi-flush
Type: Inductive Proximity Sensor
Output: 10-30VDC
Installation Type: Quasi-flush
Protection Grade: IP67
Ambient Temperature: -25℃ To +70℃
Connection Type: M12 Connector
Highlight:

M12 Connector Inductive Sensors

,

PNP NC Inductive Sensors

,

2mm M12 Inductive Sensor
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: IS2-M8PC50-M0A/S
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm
Product Overview

High-performance inductive proximity sensor with PNP NC output, designed for reliable detection of magnetic metals with a 2mm sensing range.

Key Specifications
Product Name Inductive Proximity Sensor
Mounting Type Quasi-flush
Output 10-30VDC
Protection Grade IP67
Ambient Temperature -25℃ to +70℃
Connection Type M12 Connector
Product Features
  • Quasi-flush installation type
  • 2mm detection distance
  • PNP NC output function
  • 10-30VDC supply voltage
  • M12 connector for reliable connection
  • Durable brass housing with nickel plating
Technical Specifications
Sensing range Sn 2mm
Detected object Magnetic metal
Standard detection object (iron) 12x12x1mm
Response frequency 800Hz
Working voltage 10-30VDC
Max. load current 200mA
Protection circuits Surge protection, short circuit protection, polarity reversal protection
Insulation resistance >50MΩ
Withstand voltage AC1000V
Vibration resistance 10 to 55 Hz, 1.5mm amplitude in X, Y, Z directions
Impact resistance 500m/S², 10 times in X, Y, Z directions
Sensing surface material PBT
Environmental Specifications
Ambient temperature -25 to +70°C (no freezing, no condensing)
Ambient humidity 35-95%RH (no condensing)
Temperature effect ±10% detection distance change per 20°C
Voltage effect ±1% detection distance change with ±15% voltage fluctuation
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 0
Dimension Diagram
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 1
Connection Diagram
