Industrial Distribution Box Single Channel 4-port NPN junction box for M12

Brand Name: KRONZ
Model Number: MB1204-1N-CV3M/HF
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Paper box packing
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M12 4 Port Distribute Junction Box
Interface Type:
With Cable
Description:
Distribution Junction Box
Termination:
M12 Connectors
Connector Usage:
Sensor Distributer Box
Voltage - Rated:
24V DC/AC
Current Rating (Amps):
4 A
Size / Dimension:
17.25*5.8*1.83cm
Supply Ability:
100000 pieces per month
Highlight:

Single Channel Distribution Junction Box NPN

,

M12 Distribution Junction Box

,

4 Port NPN Distribution Junction Box

Product Description
Industrial Distribution Box Single Channel 4-port NPN Junction Box for M12
Product Attributes
Attribute Value
Product name M12 4 port distribute junction box
Interface Type With cable
Description Distribution Junction Box
Termination M12 connectors
Connector Usage Sensor Distributer Box
Voltage - Rated 24V DC/AC
Current Rating (Amps) 4 A
Size / Dimension 17.25*5.8*1.83cm
Product Description

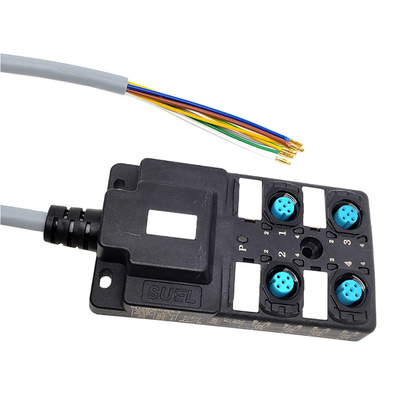

The M12 4-port Distributor Box with PVC Flexible Cable is a single channel industrial junction box with LED display, designed for reliable signal distribution and power management in automation systems. This essential connectivity component efficiently connects sensors, actuators, PLCs, and other automation equipment in industrial environments.

By aggregating multiple sensor or actuator signals through a single main cable, this junction box significantly reduces wiring complexity, optimizes cable management, and enhances maintenance efficiency. Its modular design enables quick equipment replacement, minimizing production downtime.

Key Applications
  • Robot welding stations in automotive manufacturing
  • Vision inspection systems for electronic assembly
  • Temperature and pressure monitoring in food processing
Industrial Distribution Box Single Channel 4-port NPN junction box for M12 0 Industrial Distribution Box Single Channel 4-port NPN junction box for M12 1
Technical Specifications
Order Model MB1204-1N-CV3M/HF
Type NPN
Sheath PVC flexible wire
Connector Type M12 Socket
Rated Power Ue 24V DC/AC
Rated Working Voltage Ub 18...30 V DC
Current load capacity(A) 4 A
Total current(A) 6 A
Power indicator Green LED
Protection grade IP67 (when connected correctly)
Sheath color GY
PVC flexible wire 3*0.5+4*0.34mm²
Industrial Distribution Box Single Channel 4-port NPN junction box for M12 2
Connection Details
Channel Type Dual Channel
Pin Definition Pin 1: (+)
Pin 2: (S2)
Pin 3: (-)
Pin 4: (S1)
Pin 5: (PE)
LED Display Power (green)
Signal S1 (yellow)
Signal S2 (white)
Industrial Distribution Box Single Channel 4-port NPN junction box for M12 3
