Home /Products/RJ45 Connector/Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded

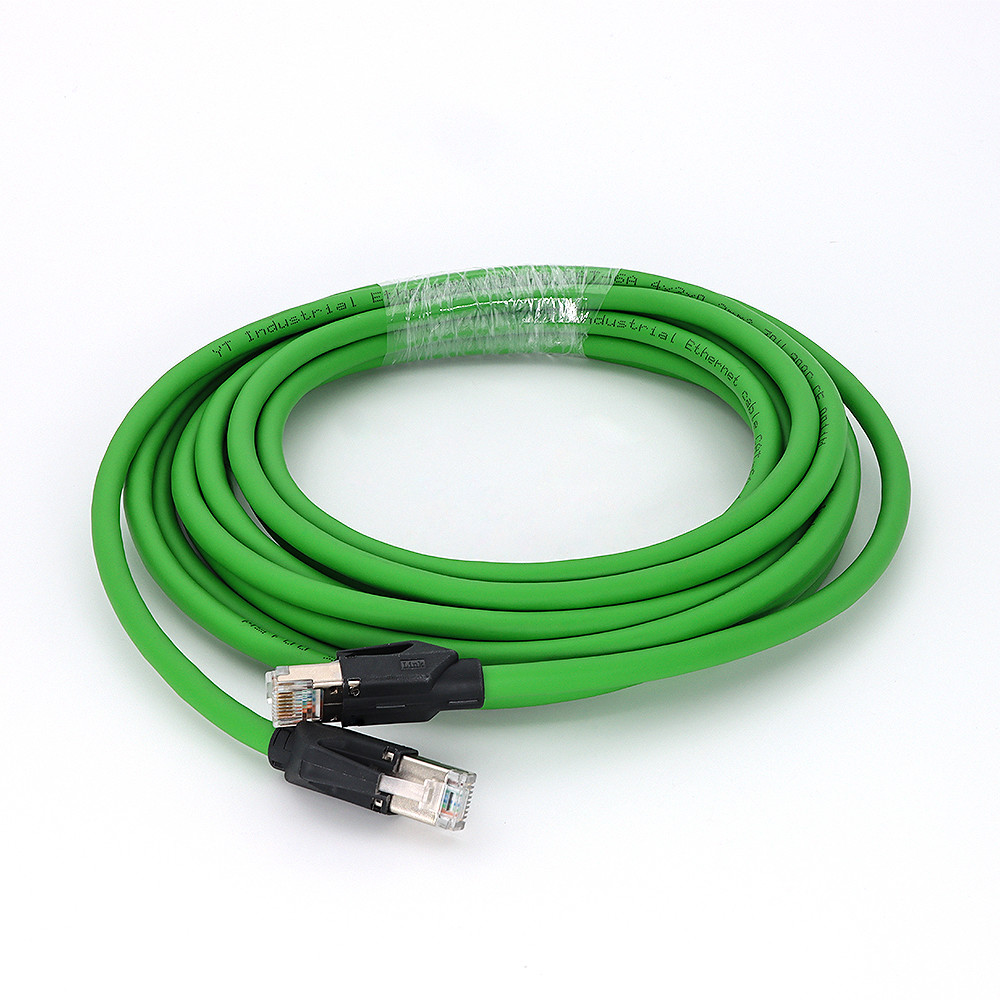

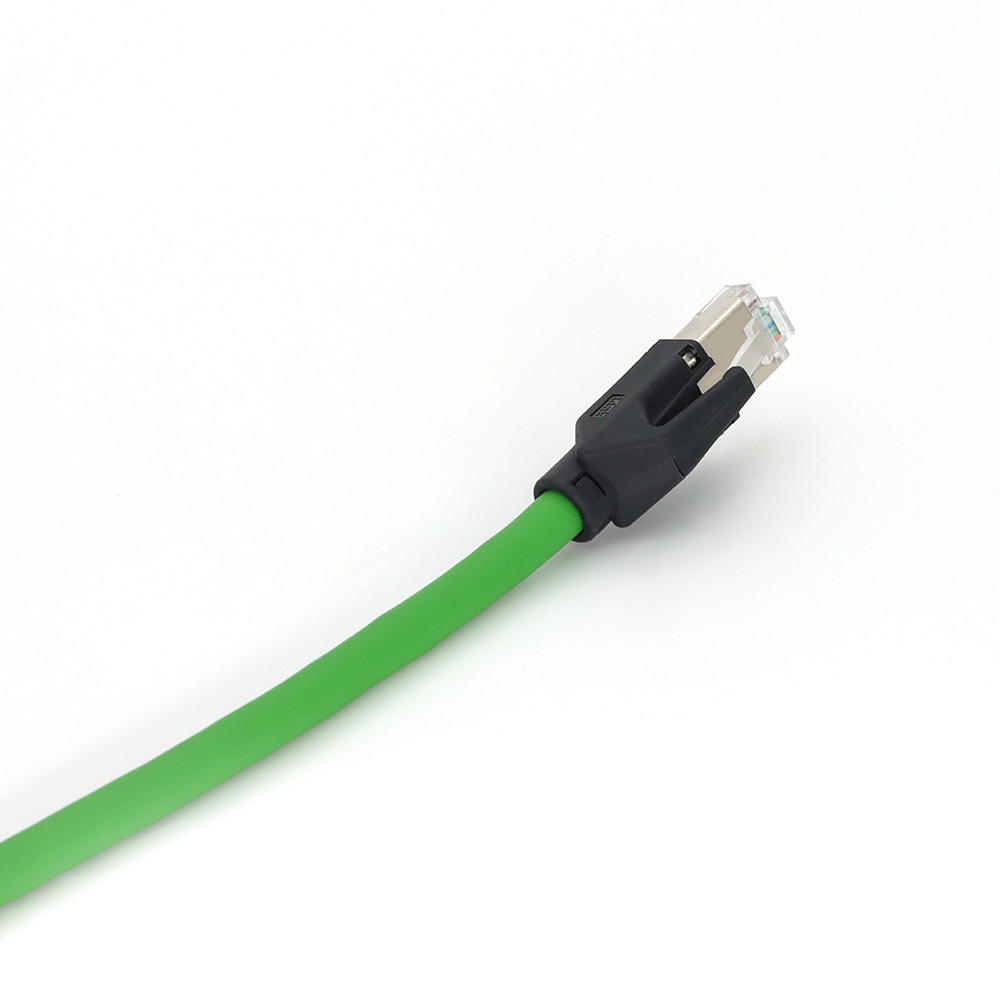

Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded

50 pieces
MOQ
Negotiable
Price
Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded
Features Gallery Product Description Request A Quote
Features
Specifications
Type: RJ45
Description: Pre-assembled Cable With RJ45 Connector
Pin: 4
Cable Color: Blueish Green
Material: PVC
Wire Gauge: 2×2×0.25,shielded (2×2×24AWG)
Cable Outlet: Straight
Length: 2M/5M/10M/Customized
Highlight:

Pre Assembled Cable RJ45 Connector 48V

,

RJ45 Connector 4 Pin 48V

,

Shielded RJ45 Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: RJ45S-2/E301
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

Pre-assembled Cable with RJ45 Connector 4 Pin 48V Straight Ethernet Shielded



Product Description

The RJ45 connector is a widely used network and telephone connection interface that can interconnect various network devices to achieve remote transmission of data and stable transmission of telephone signals. RJ45 interface is widely evaluated in various fields.

Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded 0

Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Wire color PIN Rated current Voltage Wire gauge Cable outlet Length Model No.
Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded 1 1 = WH/OR
2 = OR
3 = WH/GN
6 = GN		 4PIN 1.5A 48V 2×2×0.25,shielded
(2×2×24AWG)
Blueish green,
PVC,
OD=5.6		 Straight 2M RJ45S-2/E301
5M RJ45S-5/E301
10M RJ45S-10/E301
