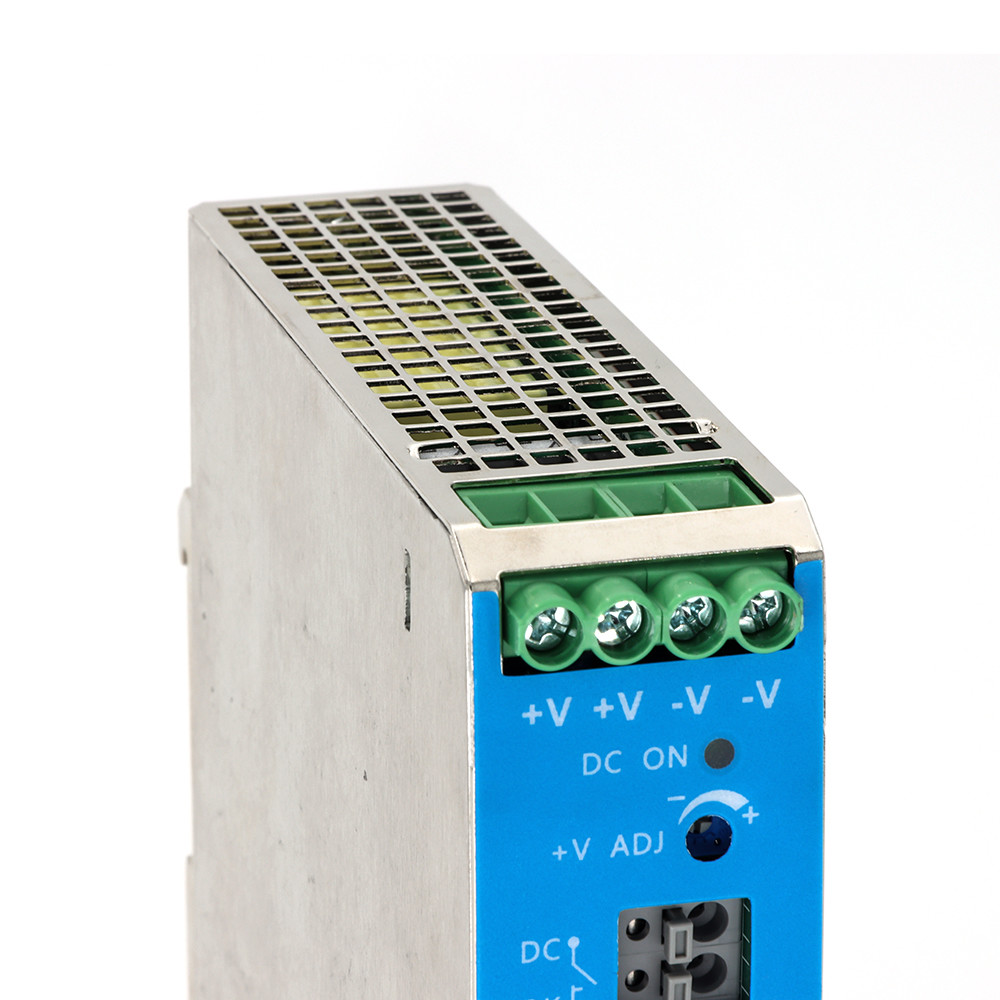

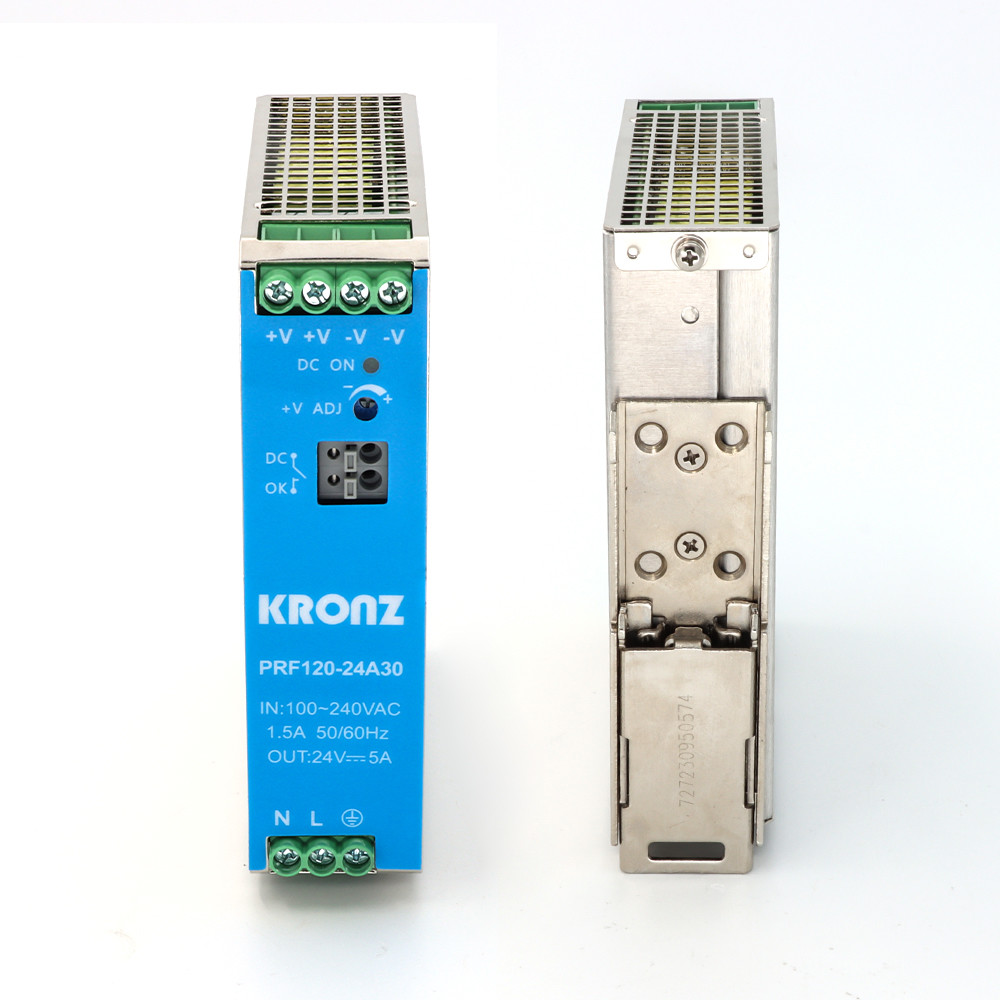

LED Light Industrial Power Supply AC/DC 24V/5A DIN Rail Cooling Start

Brand Name:	KRONZ
Model Number:	PRF120-24A30
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Product Name:

AC/DC Industrial Power Supply

Input:

AC/DC

Nominal Output:

24V/5A

Voltage Range:

23.5-28.0V

Max. Capacitive Load:

50000μF

Output Power:

120W

Output Voltage Accuracy:

Full Load Range

Load Regulation:

0%-100% Load

Supply Ability:

10000 pieces per month

Highlight:

Industrial Power Supply 24V

5A DIN Rail Industrial Power Supply

5A DIN Rail Power Supply

Product Description

Industrial Power Supply AC/DC 24V/5A LED Light DIN-rail Cooling Start

Key Specifications

Product Name	AC/DC Industrial Power Supply
Input	AC/DC
Nominal Output	24V/5A
Voltage Range	23.5-28.0V
Max. Capacitive Load	50000μF
Output Power	120W

Product Overview

This 120W, 24V/5A industrial power supply offers a cost-effective, rail-mounted solution for efficient and energy-saving power delivery. Designed for industrial control equipment and machinery in harsh environments, it features high stability and anti-interference capabilities. The compact, lightweight design with standard rail mounting saves valuable space while ensuring safety and reliability.

Key Features

Universal input voltage: 85-264VAC/120-370VDC
Accepts AC or DC input (dual-use of same terminal)
Wide operating temperature range: -40℃ to +70℃
High efficiency and reliability
DC OK function
Active PFC
150% peak power for 3 seconds continuous output
Power supply start LED indicator light
Comprehensive protection: short circuit, over-current, over-voltage, over-temperature
Suitable for 5000m altitude applications
Overvoltage level II
Designed for indoor use

Technical Specifications

Input Specifications

Item	Operating Conditions	Min.	Typ.	Max.	Unit
Input Voltage Range	Rated input (certified voltage)	100	--	240	VAC
AC input		85	--	264
DC input		120	--	370	VDC
Input Voltage Frequency	Rated AC input	50	--	60	Hz

Output Specifications

Item	Operating Conditions	Min.	Typ.	Max.	Unit
Output Voltage Accuracy	Full load range	--	±1.0	--	%
Line Regulation	Rated load	--	±0.5	--
Load Regulation	0% - 100% load	--	±1.0	--

Physical Characteristics

Case Material	Metal (AL5052, SPCC, SGCC)
Dimensions	110.00 x 32.00 x 124.00 mm
Weight	490g ±1% (Typ.)
Cooling Method	Free air convection

Safety & Compliance

Conforms to UL61010-1, UL61010-2-201 safety standards & EN62368-1. Meets IEC/UL/BS EN 62368-1 requirements. CLASS I safety rating with MTBF >300,000 hours @25℃.
