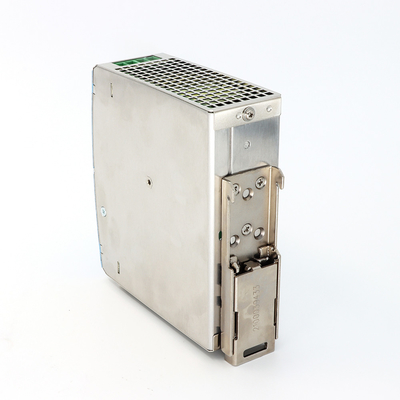

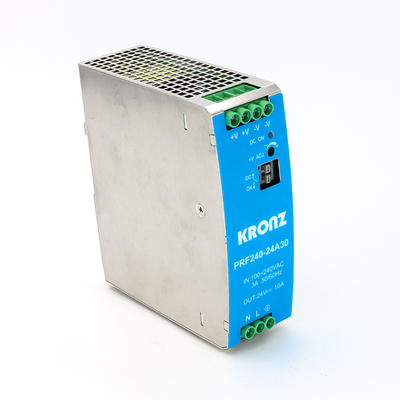

Industrial Din Rail Metal Case Power Supply 240W Power DC OK 48V/5A LED Display

Brand Name:	KRONZ
Model Number:	PRF240-48A30
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Description:

240V Power Supply

Output Power:

240W

Nominal Output:

48V/5A

Output Voltage:

48.0-53.0

Leakage Current:

<0.5mA

Safety Standards:

48V

Test Voltage:

500VDC

Pollution Degree:

Supply Ability:

10000 pieces per month

Highlight:

Din Rail Metal Case Power Supply

Metal Case Power Supply 240W

48V LED Display Power Supply

Product Description

Industrial Din Rail Metal Case Power Supply 240W Power DC OK 48V/5A LED Display

Key Specifications

Attribute	Value
Description	240V Power Supply
Output Power	240W
Nominal Output	48V/5A
Output Voltage	48.0-53.0
Leakage Current	<0.5mA
Safety Standards	48V
Test Voltage	500VDC
Pollution Degree	2

Product Overview

This industrial-grade 240W power supply delivers 48V/5A output with high stability and anti-interference capabilities for industrial control equipment in harsh environments. The compact, DIN-rail mounted design saves space while providing reliable power.

Key Features

Universal input voltage: 85-264VAC/120-370VDC (AC/DC dual-use terminals)
Wide operating temperature range: -40℃ to +70℃
High efficiency (94% typical) with active PFC
DC OK function with LED indicator
150% peak power for 3 seconds continuous output
Comprehensive protection: short circuit, over-current, over-voltage, over-temperature
Suitable for high-altitude applications up to 5000m
Overvoltage level II protection
Designed for indoor industrial use

Technical Specifications

Input Specifications

Item	Operating Conditions	Min.	Typ.	Max.	Unit
Input Voltage Range	Rated input (certified voltage)	100	--	240	VAC
AC input		85	--	264
DC input		120	--	370	VDC
Input Current	Rated input	--	--	3	A
Leakage Current	264VAC	<0.5mA

Physical Characteristics

Item	Specification
Case Material	Metal (AL5052, SPCC)
Dimensions	124.00 x 41.00 x 110.00 mm
Weight	650g (Typ.)
Cooling Method	Free air convection

Safety & Compliance

Safety Standards: UL61010-1, UL61010-2-201, IS13252(part1) & EN62368-1
Conforms to IEC/UL/BS EN 62368-1
Safety Class: CLASS I
MTBF: >300,000 hours @25℃
Pollution Degree: 2
EMC Compliance: CE, CISPR32/EN55032 CLASS B

Note: The "tip and barrel method" is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor. DC OK Signal: When the output voltage is normal, the relay is connected. When the output voltage is abnormal (<90%Vo), the relay is disconnected.
