Non Flush Inductive Proximity Sensors PNP NO 22mm IP67 M12 Connector 10-30VDC
  • Name
  • Name

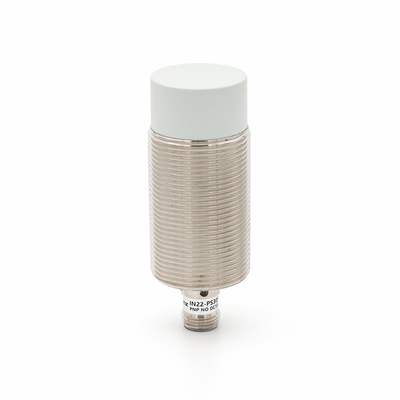

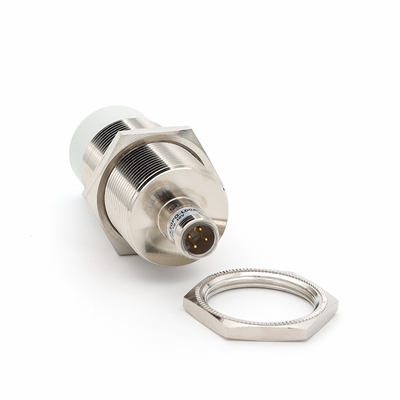

Non Flush Inductive Proximity Sensors PNP NO 22mm IP67 M12 Connector 10-30VDC

Brand Name: KRONZ
Model Number: IN22-M30PO78-M0A/L
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Installation Type:
Non-flush
Snesing Range:
22mm
LED Display:
Yes
Ripple:
＜10%
No Load Current:
＜15mA
Max Load Current:
200mA
Leakage Current:
＜0.01mA
Switching Frequency:
150Hz
Supply Ability:
100000 pieces per month
Highlight:

Non Flush Inductive Proximity Sensors

,

IP67 Inductive Proximity Sensors

,

PNP M12 Inductive Sensor

Product Description
Non Flush Inductive Proximity Sensors PNP NO 22mm IP67 M12 Connector 10-30VDC
Product Overview
The inductive sensor is a device that uses the principle of electromagnetic induction to detect or measure objects. It can detect ferrous metal targets without physical contact, and also detect non-ferrous metal targets such as aluminum, brass, and copper.
Key Features
  • Installation type: Non-flush
  • Sensing range: 22mm
  • Output function: PNP, NO
  • Supply voltage: 10-30VDC
  • Connection type: M12 connector
  • Housing material: Brass, nickel-plated
  • LED display for status indication
  • IP67 enclosure rating for durability
Technical Specifications
Attribute Value
Installation Type Non-flush
Sensing Range 22mm
LED Display Yes
Ripple ＜10%
No load current ＜15mA
Max load current 200mA
Leakage current ＜0.01mA
Voltage drop ＜ 2.5V
Switching frequency 150Hz
Response time 0.5ms
Switching hysteresis ≤±10%sr
Repeatability ＜3.0%sr
Enclosure rating IP67
Temperature drift ＜10%sr
Ambient temperature -25°C ~+70°C
Reverse-polarity protection Yes
Short-circuit protection Yes
Overload trip point 220mA
Material sensing surface PBT
Connection type M12 connector
Dimensional Drawing
Non Flush Inductive Proximity Sensors PNP NO 22mm IP67 M12 Connector 10-30VDC 0
Wiring Diagram
Non Flush Inductive Proximity Sensors PNP NO 22mm IP67 M12 Connector 10-30VDC 1
