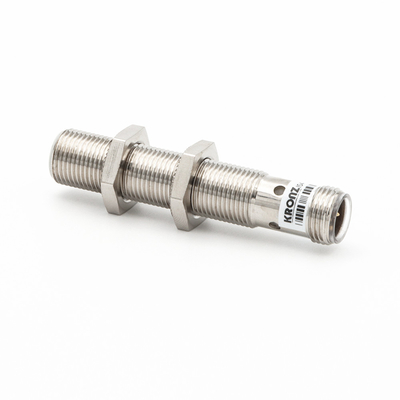

Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector

10 pieces
MOQ
Negotiable
Price
Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Installation Type: Quasi-flush
Snesing Range: 4mm
Assured Sensing Range(Sa): 0…3.2mm
Standard Target: Fe 12*12*1t
Cylindrical Size: M12*1*63mm
Residual Voltage: ≤2.5V
Ambient Temperature: -25℃…70℃
Ambient Humidity: 35-95%RH
Highlight:

Quasi Flush Inductive Sensors PNP

,

M12 Connector Inductive Sensors 4mm

,

Brass M12 Inductive Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: IS4-M12PO63-M0A/L
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector
Key Specifications
Attribute Value
Installation Type Quasi-flush
Sensing Range 4mm
Assured sensing range (Sa) 0…3.2mm
Standard target Fe 12×12×1t
Cylindrical size M12×1×63mm
Residual voltage ≤2.5V
Ambient temperature -25℃…70℃
Ambient humidity 35-95%RH
Product Overview

Inductive sensors with quasi-flush mounting provide reliable proximity detection for industrial automation applications. These PNP normally open sensors feature a 4mm sensing range and operate on 10-30VDC power supply.

Key Features
  • Precision detection: Ensures accurate positioning of metal parts in production processes
  • Industrial durability: Nickel-plated brass housing withstands harsh environments
  • Reliable connectivity: Standard M12 connector for secure electrical connections
  • Visual feedback: Yellow LED display for operational status monitoring
  • Robust protection: Includes reverse polarity and short-circuit protection
Technical Specifications
Parameter Specification
Output function PNP, NO
Load current ≤200mA
Current consumption ≤15mA
Switching frequency 800Hz
Tolerance (Sr) ≤±10%
Hysteresis range 1…20%
Repeatability ≤3%
Withstand voltage 1000V/AC 50/60Hz 60s
Insulation resistance ≥50MΩ (500VDC)
Vibration resistance 1.5mm 10…50Hz (2 hours each direction)
Enclosure rating IP67

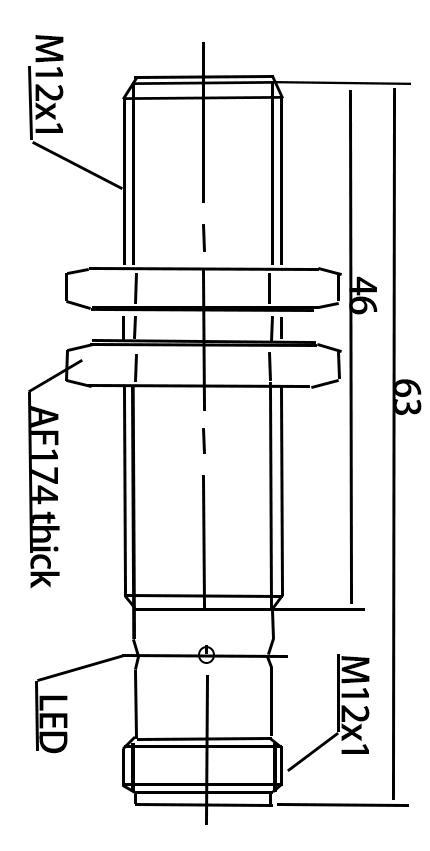

Dimensional Drawing
Dimensional drawing of Quasi Flush Inductive Sensor showing M12×1×63mm brass housing with mounting specifications
Wiring Diagram
Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector 1
