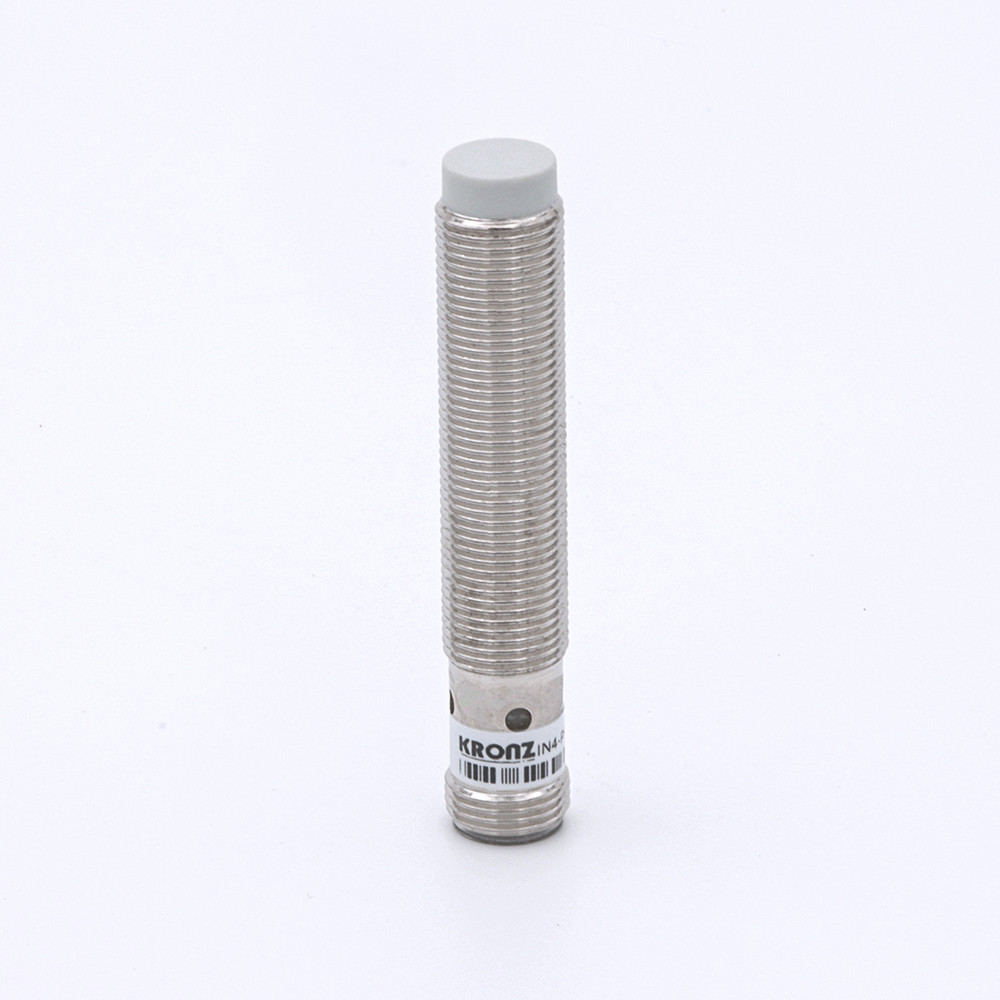

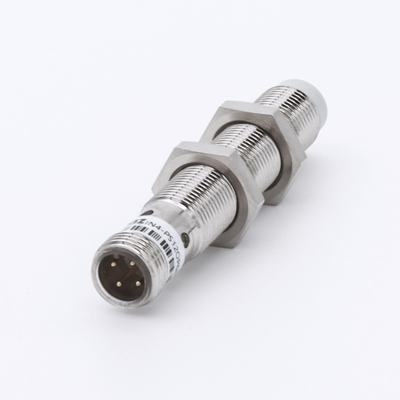

PBT Surface Inductive Sensors Non Flush Installed PNP NO Sensing Distance 4Mm

Brand Name:	KRONZ
Model Number:	IN4-M12PO68-M0A/B
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Installation Type:

Non-flush

Connection Type:

M12 Connector

Housing Material:

Brass,nickel-plated

Max Load Current:

200mA

Ambient Temperature:

-25°C ~+70°C

Enclosure Rating:

IP67

Overload Trip Point:

220mA

Response Time:

0.2ms

Supply Ability:

100000 pieces per month

Highlight:

PBT Surface Inductive Sensors

PNP NO Inductive Sensors

4Mm Sensing Distance Inductive Sensors

Product Description

PBT Surface Inductive Sensors Non Flush Installed PNP NO Sensing Distance 4Mm

Key Attributes

Attribute	Value
Installation Type	Non-flush
Connection Type	M12 Connector
Housing Material	Brass, nickel-plated
Max load current	200mA
Ambient temperature	-25°C ~ +70°C
Enclosure rating	IP67
Overload trip point	220mA
Response time	0.2ms

Product Overview

Inductive sensors play a crucial role in quality control and industrial automation. These precision devices detect the presence and alignment of metal parts during production, reducing errors and improving product quality. In automation systems, they enable proximity detection in machinery, preventing accidents and minimizing damage.

Installation type: Non-flush

Sensing range Sn: 4mm

Output function: PNP, NO

Supply voltage: 10-30VDC

Connection type: M12 connector

Housing material: Brass, nickel-plated

Technical Specifications

Parameter	Value
Sensing range(Sn)	4mm
LED Display	Yes
Ripple	<10%
No load current	<15mA
Leakage current	<0.01mA
Voltage drop	<1.5V
Switching frequency	1KHz
Switching hysteresis	≤15%sr
Repeatability	<1.0%sr
Temperature drift	<10%sr
Reverse-polarity protection	Yes
Short-circuit protection	Yes
Material sensing surface	PBT

Dimensional Drawing

Wiring Diagram
