Name: Quasi Flush Inductive Sensors 2mm Sensing Range Magnetic Metal IP67 LED Display
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: IS2-M12PC51-M0A/S
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Installation Type: Quasi-flush

Detection Distance: 2mm

Output Function: PNP,NC

Supply Voltage: 10-30VDC

Connection Type: M12 Connector

Housing Material: Brass,nickel-plated

Standard Detection Object: 12 X 12 X 1mm

LED Display: Red

Highlight:

Magnetic Metal Inductive Sensors IP67

2mm Sensing Range Inductive Sensors

Quasi Flush Inductive Sensors IP67

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: IS2-M12PC51-M0A/S

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

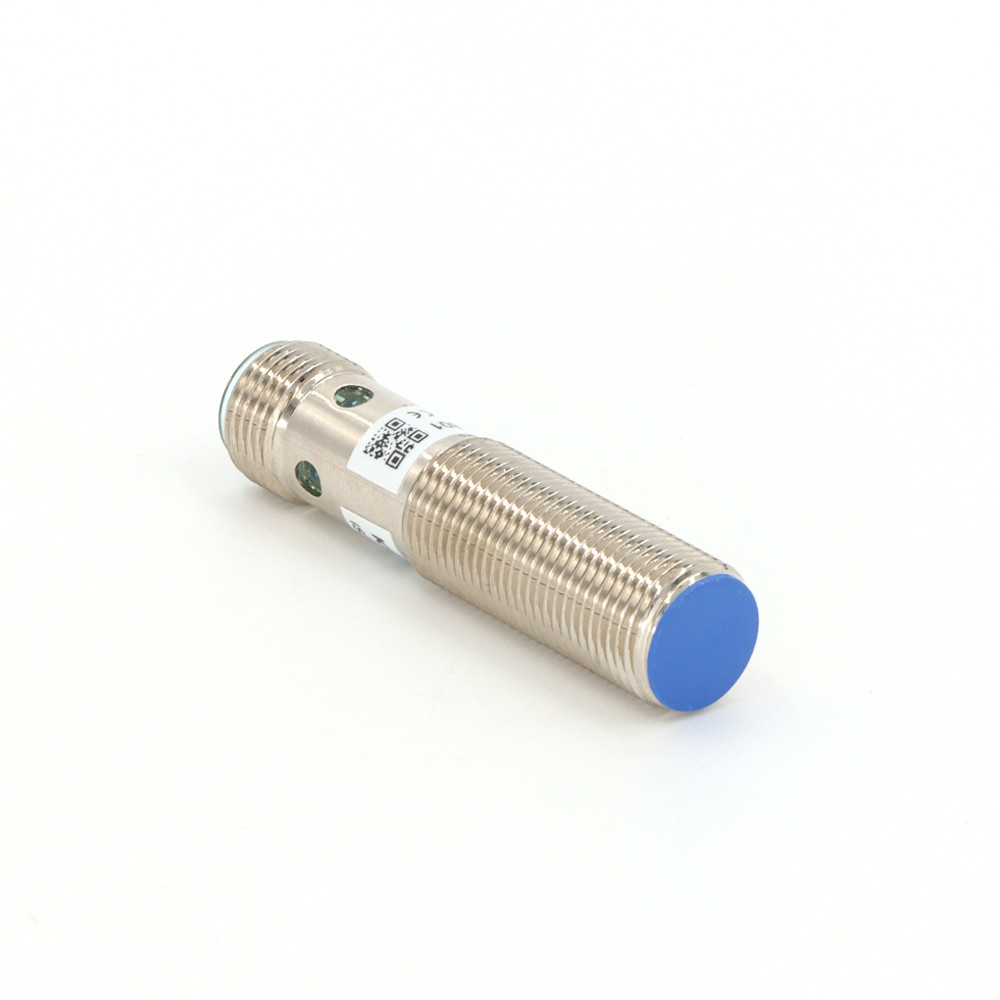

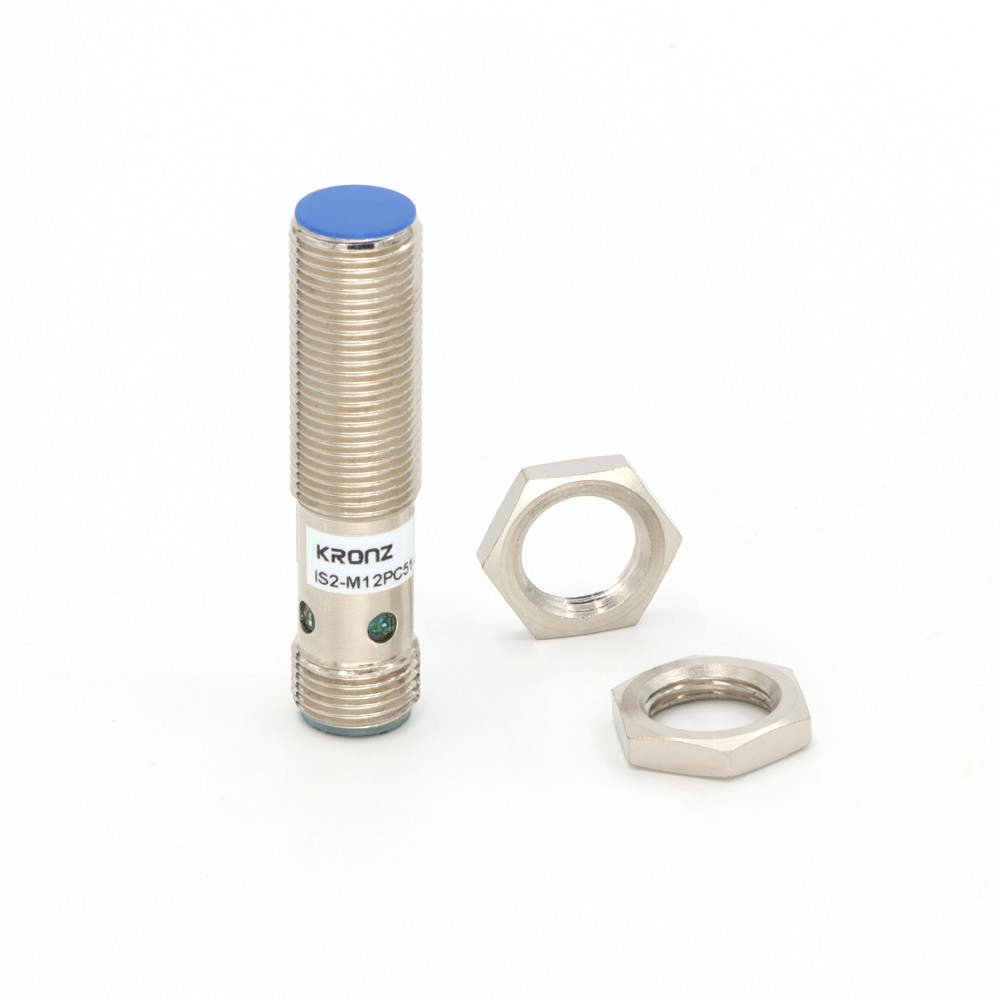

Quasi Flush Inductive Sensors 2mm Sensing Range Magnetic Metal IP67 LED Display

Product Description

Inductive Sensors Quasi-flush 2mm Sensing Range Magnetic Metal IP67 LED Display

Product Description

Inductive sensors contribute significantly to quality control. They can precisely detect the presence and alignment of metal parts during production, reducing errors and improving product quality. Inductive sensors are also indispensable in industrial automation. They enable proximity detection in machinery, preventing accidents and minimizing damage. For example, in conveyor systems, they ensure that objects are properly positioned and avoid jams.

■ Installation type: Quasi-flush
■ Sensing range Sn: 2mm
■ Output function: PNP,NC
■ Supply voltage: 10-30VDC
■ Connection type: M12 connector
■ Housing material: Brass,nickel-plated

Technical Data

Installation Type	Quasi-flush
Sensing Range(Sn)	2mm
Detected Object	Magnetic metal
Standard Detection Object(iron)	12x12x1mm
Set Distance	0-1.6mm
Tolerance Distance	Detection distance below 10%
Response Frequency	800Hz
Working Voltage	10-30VDC
Max. load Current	200mA
Voltage Drop	<1V
LED Display	Red
Protection circuit	Surge protection circuit,short circuit protection,polarity reversal protection
Ambient temperature	During operation:-25 to+70°C(no freezing,no condensing)
Ambient humidity	During operation and shorage: 35-95%RH(no condensing)
Effect of temperature	Temperature range-25 to 70°C,with a detection distance within ±10% for every 20°C change
Effect of voltage	When the rated power supply voltage fluctuates within ±15%,the detection distance changes within ±1%
Insulation resistance	＞50MΩ
Withstand voltage	AC1000V
Vibration resistance	10 to 55 Hz, up and down amplitude 1.5 mm in the X, Y, and Z directions for each 2 hours.
Impact resistance	500m/S ², 10 times in each direction of X, Y and Z
Connection type	M12 Connector
Sensing surface meterial	PBT
Protection grade	IP67

Dimensional Drawing

Quasi Flush Inductive Sensors 2mm Sensing Range Magnetic Metal IP67 LED Display 0

Wiring Diagram

Quasi Flush Inductive Sensors 2mm Sensing Range Magnetic Metal IP67 LED Display 1
