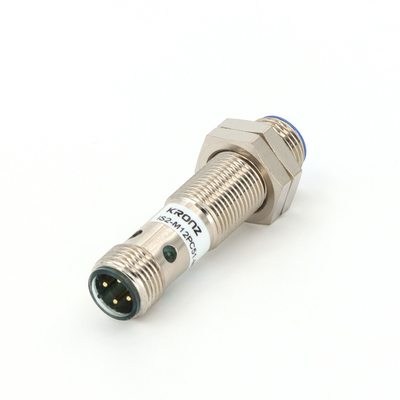

PNP NO Inductive Sensors For Detecting Magnetic Metal 0-1.6mm Red LED Display

Brand Name: KRONZ
Model Number: IS2-M12PO51-M0A/S
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Installation Type:
Quasi-flush
Detected Object:
Magnetic Metal
Output Function:
PNP,NO
Set Distance:
0-1.6mm
Leakage Current:
<0.8mA
Response Frequencty:
800Hz
Voltage Drop:
<1V
Sensing Surface Meterial:
PBT
Supply Ability:
100000 pieces per month
Highlight:

Magnetic Metal Detecting Inductive Sensors

,

1.6mm Inductive Sensors

,

PNP Inductive Sensors

Product Description
PNP NO Inductive Sensors For Detecting Magnetic Metal 0-1.6mm Red LED Display
Key Specifications
Attribute Value
Installation Type Quasi-flush
Detected Object Magnetic metal
Output Function PNP,NO
Set Distance 0-1.6mm
Leakage Current <0.8mA
Response Frequency 800Hz
Voltage Drop <1V
Sensing Surface Material PBT
Product Overview

Inductive sensors play a crucial role in industrial automation and quality control by precisely detecting the presence and alignment of metal parts during production processes. These sensors help reduce errors, improve product quality, and prevent machinery accidents.

Key Features
  • Quasi-flush installation type
  • 2mm sensing range (Sn)
  • PNP,NO output function
  • 10-30VDC supply voltage
  • M12 connector for easy installation
  • Nickel-plated brass housing for durability
  • Red LED display for status indication
Technical Specifications
Standard Detection Object (iron) 12x12x1mm
Tolerance Distance Detection distance below 10%
Max. Load Current 200mA
Protection Circuit Surge protection, short circuit protection, polarity reversal protection
Ambient Temperature -25 to +70°C (no freezing, no condensing)
Insulation Resistance >50MΩ
Withstand Voltage AC1000V
Protection Grade IP67
Environmental Specifications
Vibration Resistance 10 to 55 Hz, up and down amplitude 1.5 mm in X, Y, and Z directions for 2 hours each
Impact Resistance 500m/S², 10 times in each direction of X, Y and Z
Effect of Temperature ±10% detection distance change per 20°C within -25 to 70°C range
Effect of Voltage ±1% detection distance change with ±15% power supply voltage fluctuation
Dimensional Drawing
PNP NO Inductive Sensors For Detecting Magnetic Metal 0-1.6mm Red LED Display 0
Wiring Diagram
PNP NO Inductive Sensors For Detecting Magnetic Metal 0-1.6mm Red LED Display 1
