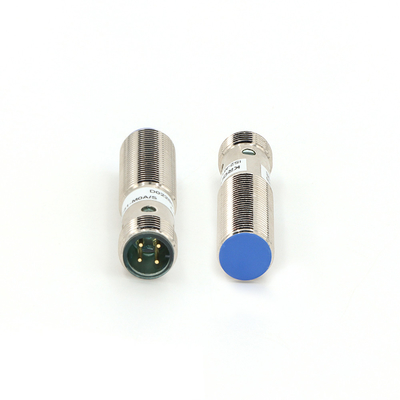

NPN NC M12 Inductive Sensor With Quasi Flush Installation 10-30VDC
  • Name
  • Name

NPN NC M12 Inductive Sensor With Quasi Flush Installation 10-30VDC

Brand Name: KRONZ
Model Number: IS2-M12NC51-M0A/S
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Installation Type:
Quasi-flush
Detection Distance:
2mm
Output Function:
NPN NC
Leakage Current:
<0.8mA
Max.Load Current:
200mA
Insulation Resistance:
>50MΩ
Detected Object:
Magnetic Metal
Withstand Voltage:
AC1000V
Supply Ability:
100000 pieces per month
Highlight:

NC M12 Inductive Sensor

,

NPN M12 Inductive Sensor

,

M12 Inductive Sensor 30VDC

Product Description
NPN NC M12 Inductive Sensor With Quasi Flush Installation 10-30VDC
Key Specifications
Attribute Value
Installation Type Quasi-flush
Detection Distance 2mm
Output Function NPN NC
Leakage Current <0.8mA
Max.Load Current 200mA
Insulation Resistance >50MΩ
Detected Object Magnetic metal
Withstand Voltage AC1000V
Product Overview

Inductive sensors with M12 connector and quasi-flush installation provide reliable proximity detection for industrial automation applications. These 10-30VDC NPN NC sensors significantly enhance quality control by precisely detecting metal parts during production processes.

Key Features
  • Quasi-flush installation type for versatile mounting
  • 2mm sensing range for precise detection
  • NPN NC output function for standard compatibility
  • 10-30VDC power supply range
  • Durable M12 connector for reliable connections
  • Nickel-plated brass housing for industrial durability
Technical Specifications
Installation Type Quasi-flush
Sensing Range (Sn) 2mm
Detected Object Magnetic metal
Standard Detection Object (iron) 12x12x1mm
Set Distance 0-1.6mm
Tolerance Distance Detection distance below 10%
Response Frequency 800Hz
Working Voltage 10-30VDC
Max. load Current 200mA
Voltage Drop <1V
LED Display Red
Protection circuit Surge protection, short circuit protection, polarity reversal protection
Ambient temperature -25 to +70°C (no freezing, no condensing)
Ambient humidity 35-95%RH (no condensing)
Insulation resistance >50MΩ
Withstand voltage AC1000V
Protection grade IP67
Dimensional Drawing
NPN NC M12 Inductive Sensor With Quasi Flush Installation 10-30VDC 0
Wiring Diagram
NPN NC M12 Inductive Sensor With Quasi Flush Installation 10-30VDC 1
