NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed

10 pieces
MOQ
Negotiable
Price
NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed
Features Gallery Product Description Request A Quote
Features
Specifications
Detection Distance: 2mm
Detected Object: Magnetic Metal
Output Function: NPN NO
Response Frequency: 800Hz
Ambient Temperature: -25 To+70°C
Insulation Resistance: >50MΩ
Connection Type: M12 Connector
Protection Grade: IP67
Highlight:

M12 Inductive Proximity Sensor IP67

,

m12 Inductive Proximity Sensor NPN

,

Quasi Flush Inductive Proximity Sensor
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: IS2-M12NO51-M0A/S
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed
Product Attributes
Attribute Value
Detection Distance 2mm
Detected Object Magnetic metal
Output Function NPN NO
Response Frequency 800Hz
Ambient Temperature -25 to +70°C
Insulation Resistance >50MΩ
Connection type M12 Connector
Protection grade IP67
Product Description

The M12 inductive sensor is designed for automation and industrial control systems to detect the presence or position of metal objects. Its quasi-flush mounting style allows installation flush with the surface, making it ideal for space-constrained applications requiring a smooth profile.

  • Installation type: Quasi-flush
  • Sensing range Sn: 2mm
  • Output function: NPN, NO
  • Supply voltage: 10-30VDC
  • Connection type: M12 connector
  • Housing material: Brass, nickel-plated

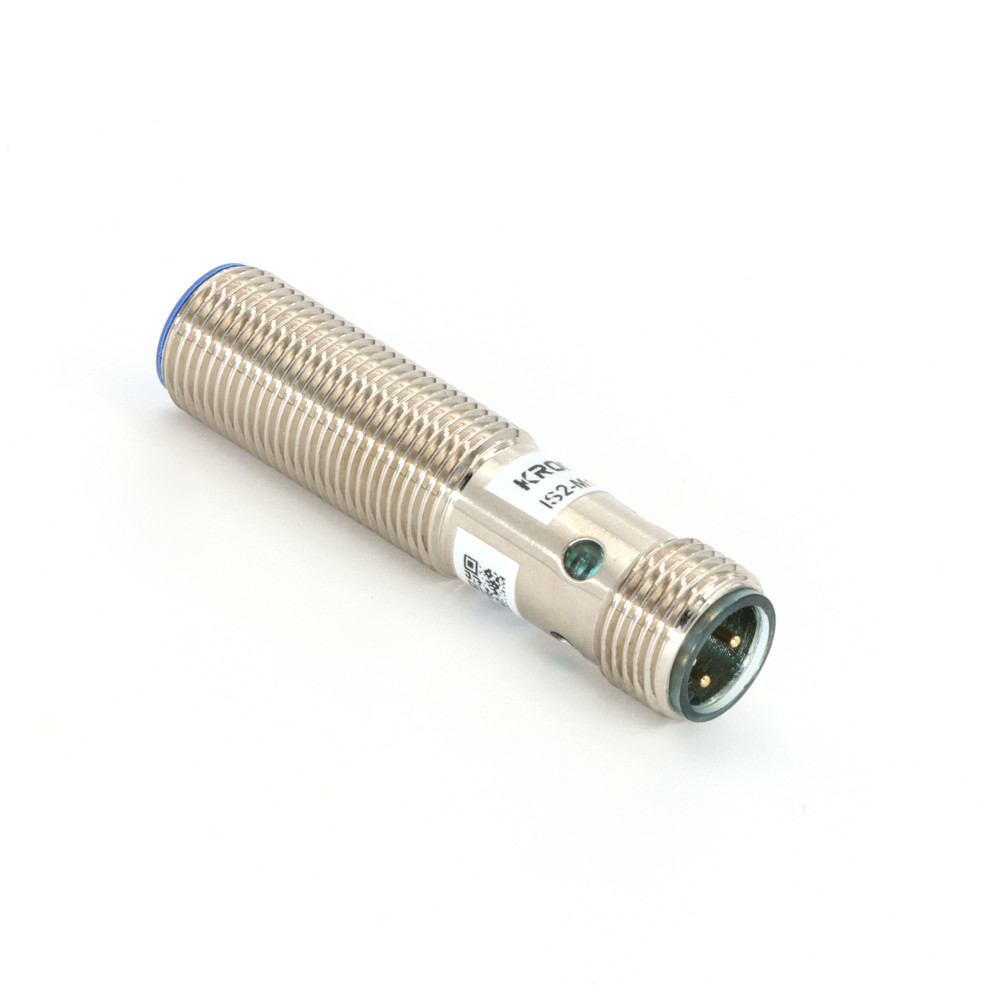

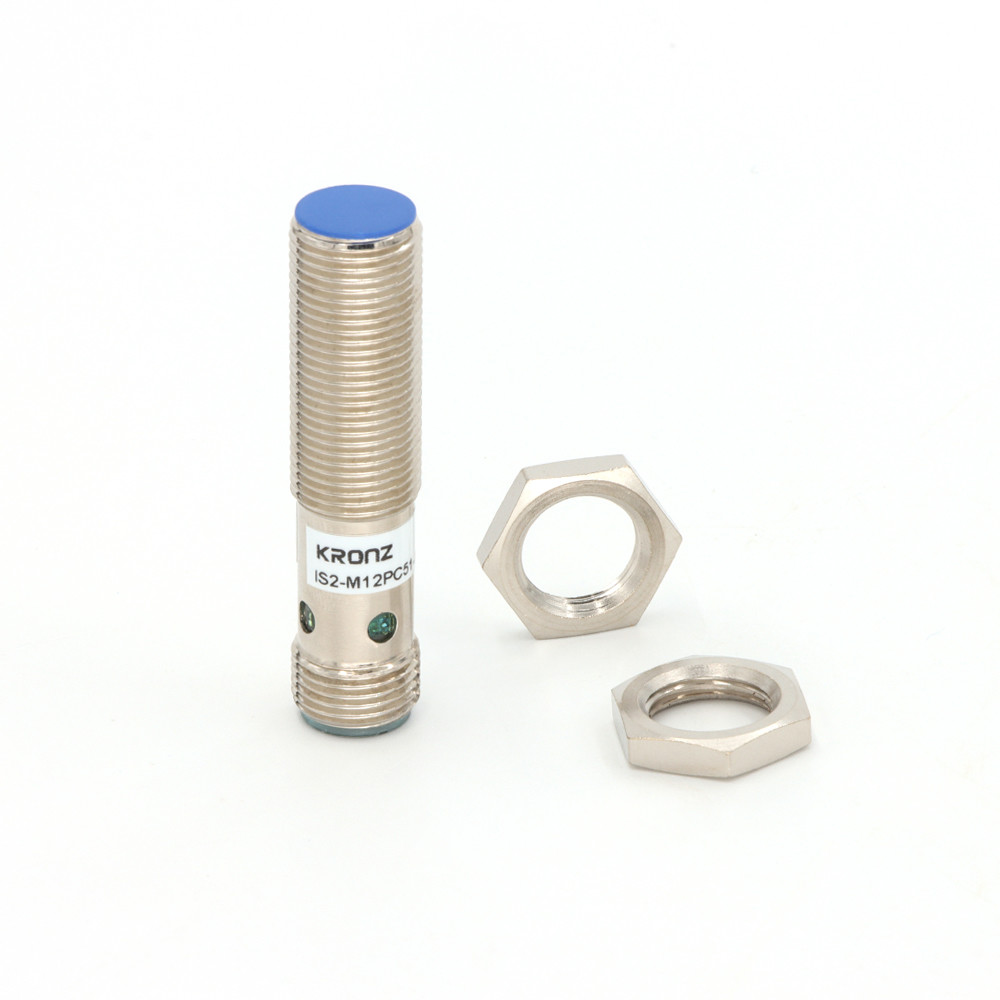

NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed 0 NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed 1
Technical Specifications
Installation Type Quasi-flush
Sensing Range (Sn) 2mm
Detected Object Magnetic metal
Standard Detection Object (iron) 12x12x1mm
Set Distance 0-1.6mm
Tolerance Distance Detection distance below 10%
Response Frequency 800Hz
Working Voltage 10-30VDC
Max. load Current 200mA
Voltage Drop <1V
LED Display Red
Protection circuit Surge protection, short circuit protection, polarity reversal protection
Ambient temperature -25 to +70°C (no freezing, no condensing)
Ambient humidity 35-95%RH (no condensing)
Effect of temperature ±10% detection distance change per 20°C
Effect of voltage ±1% detection distance change with ±15% voltage fluctuation
Insulation resistance >50MΩ
Withstand voltage AC1000V
Vibration resistance 10-55Hz, 1.5mm amplitude in X,Y,Z directions for 2 hours each
Impact resistance 500m/S², 10 times in X,Y,Z directions
Connection type M12 Connector
Sensing surface material PBT
Protection grade IP67
Technical Diagrams
NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed 2
Dimensional Drawing
NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed 3
Wiring Diagram
