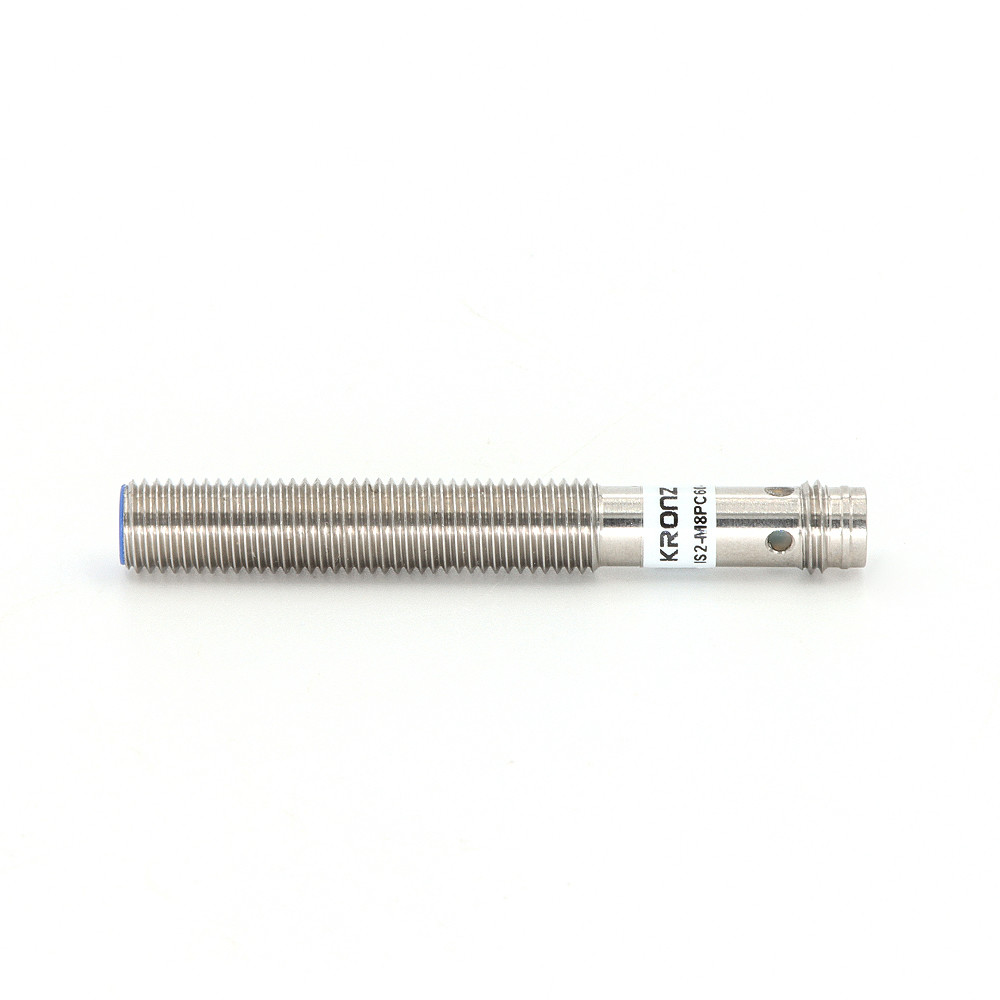

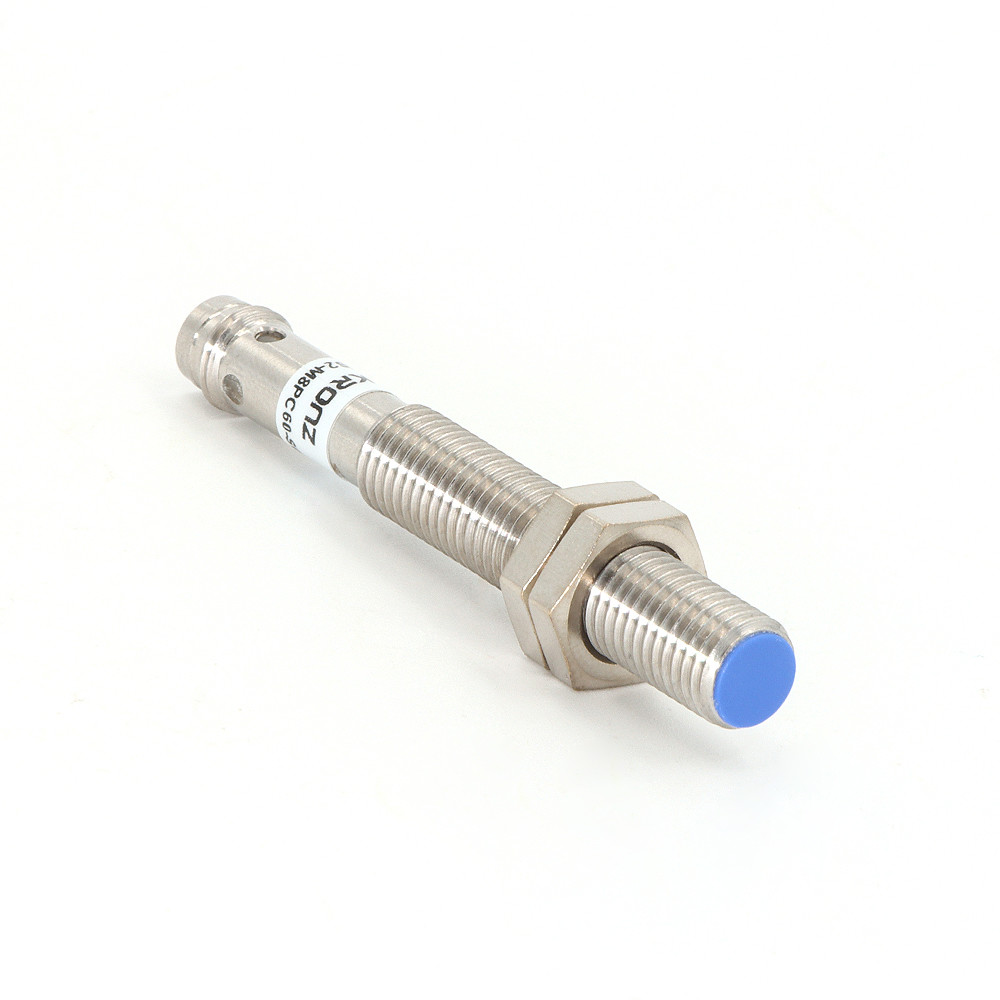

M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection
  • Name
  • Name

M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection

Brand Name: KRONZ
Model Number: IS2-M8PC60-S0B/D
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Detection Distance:
2mm
Detected Object:
Magnetic Metal
Output Function:
PNP NO
No Load Current:
<10mA（24V）
Max. Load Current:
100mA
Voltage Drop:
<2.0v
Connection Type:
M8 Connector
Switching Frequency:
3kHZ
Supply Ability:
100000 pieces per month
Highlight:

M8 Connector Inductive Sensors

,

M8 Connector Inductive Sensors 220mA

,

Overload Current Protection M8 Inductive Sensor

Product Description
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection
Key Specifications
Attribute Value
Detection Distance 2mm
Detected Object Magnetic metal
Output Function PNP NO
No Load Current <10mA（24V）
Max. load current 100mA
Voltage drop <2.0v
Connection type M8 Connector
Switching frequency 3kHZ
Product Overview

These M8 inductive sensors are designed for automation, industrial control, and mechanical manufacturing applications. They detect metal objects through inductive principles and feature compact size with M8 connector standard for space-constrained installations.

M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 0
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 1
Technical Specifications
Installation Type Quasi-flush
Detection Distance 2mm
LED Display Yes
Working Voltage 10-30VDC
No Load Current <10mA (24V)
Max. load current 100mA
Voltage drop <2.0v
Switching frequency 3kHZ
Tolerance(Sr) ＜10%
Leakage current ＜0.01mA
Response time 0.1ms
Temperature drift ＜10%sr
Switch hysteresis <15%sr
Repeatability <1.0%sr
Short-circuit protection/Reverse polarity protection Yes
Overload current protection 220mA
Protection grade IP67
Ambient temperature -25℃ to +70℃
Sensing surface material POM
Connection type M8 connector
Technical Documentation
Dimensional Drawing
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 2
Wiring Diagram
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 3
Manufacturer Information
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 4
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 5
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 6
M8 Connector Inductive Sensors PNP NO 220mA Overload Current Protection 7
