POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance
  • Name
  • Name

POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance

Brand Name: KRONZ
Model Number: IS2-M8PO60-S0B/D
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Installation Type:
Quasi-flush
LED Display:
Yes
Working Voltage:
10-30VDC
Max. Load Current:
100mA
Tolerance:
<10%
Response Time:
0.1ms
Sensing Surface Material:
POM
Overload Current Protection:
220mA
Supply Ability:
100000 pieces per month
Highlight:

POM Inductive Sensors

,

2mm Detection Distance Inductive Sensors

,

PNP NO Output Inductive Sensors

Product Description
POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance
Key Features
  • Compact M8 inductive sensor for metal object detection
  • Quasi-flush installation type with 2mm detection distance
  • PNP NO output configuration
  • Wide working voltage range: 10-30VDC
  • Stainless steel housing with POM sensing surface
  • High precision with fast 0.1ms response time
  • IP67 protection grade for industrial environments
Technical Specifications
Attribute Value
Installation Type Quasi-flush
LED Display Yes
Working Voltage 10-30VDC
Max. load current 100mA
Tolerance <10%
Response Time 0.1ms
Sensing Surface Material POM
Overload Current Protection 220mA
Detailed Technical Data
Detection Distance: 2mm
No Load Current: <10mA (24V)
Voltage drop: <2.0V
Switching frequency: 3kHz
Leakage current: <0.01mA
Temperature drift: <10%sr
Switch hysteresis: <15%sr
Repeatability: <1.0%sr
Protection grade: IP67
Ambient temperature: -25℃ to +70℃
Connection type: M8 connector
Product Description

The M8 inductive sensor is a compact, high-precision device designed for detecting the presence or position of metal objects in industrial automation and control systems. Its small size and quasi-flush installation make it ideal for space-constrained applications requiring reliable metal detection with a 2mm sensing range.

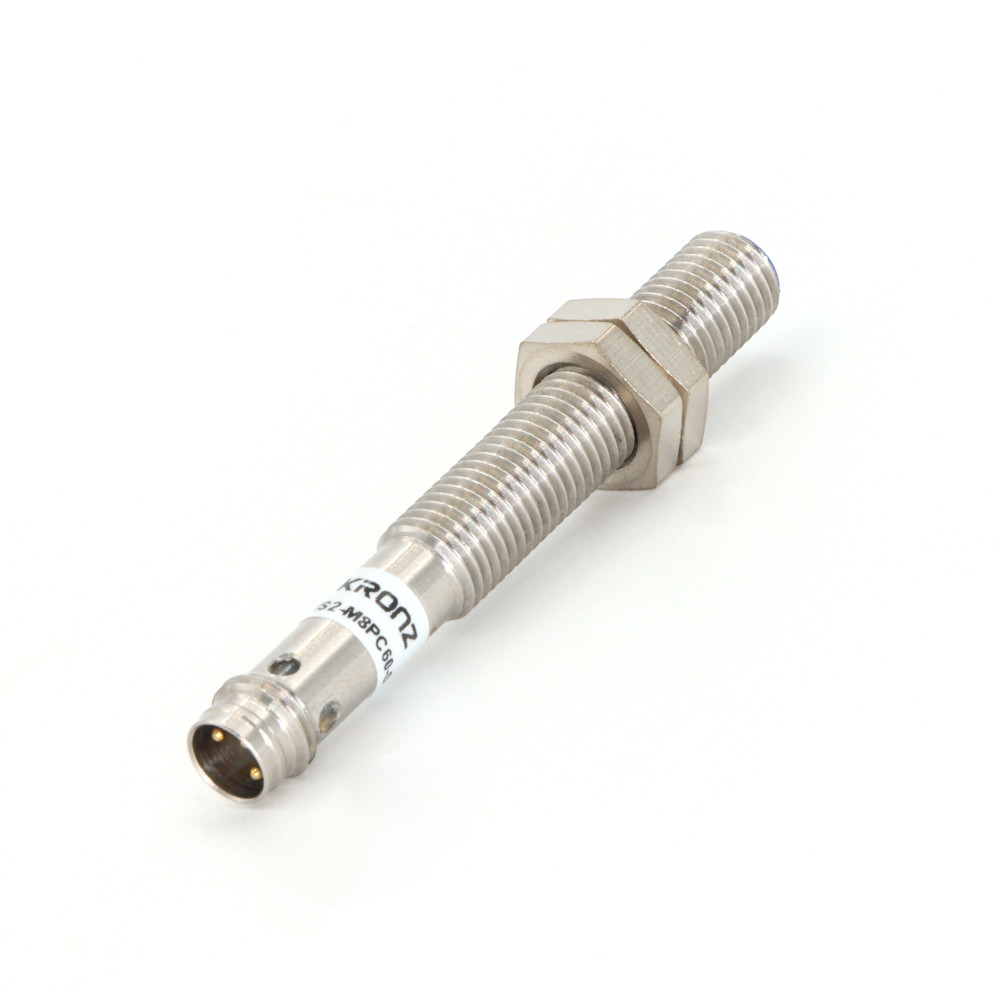

Product Image
POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 0

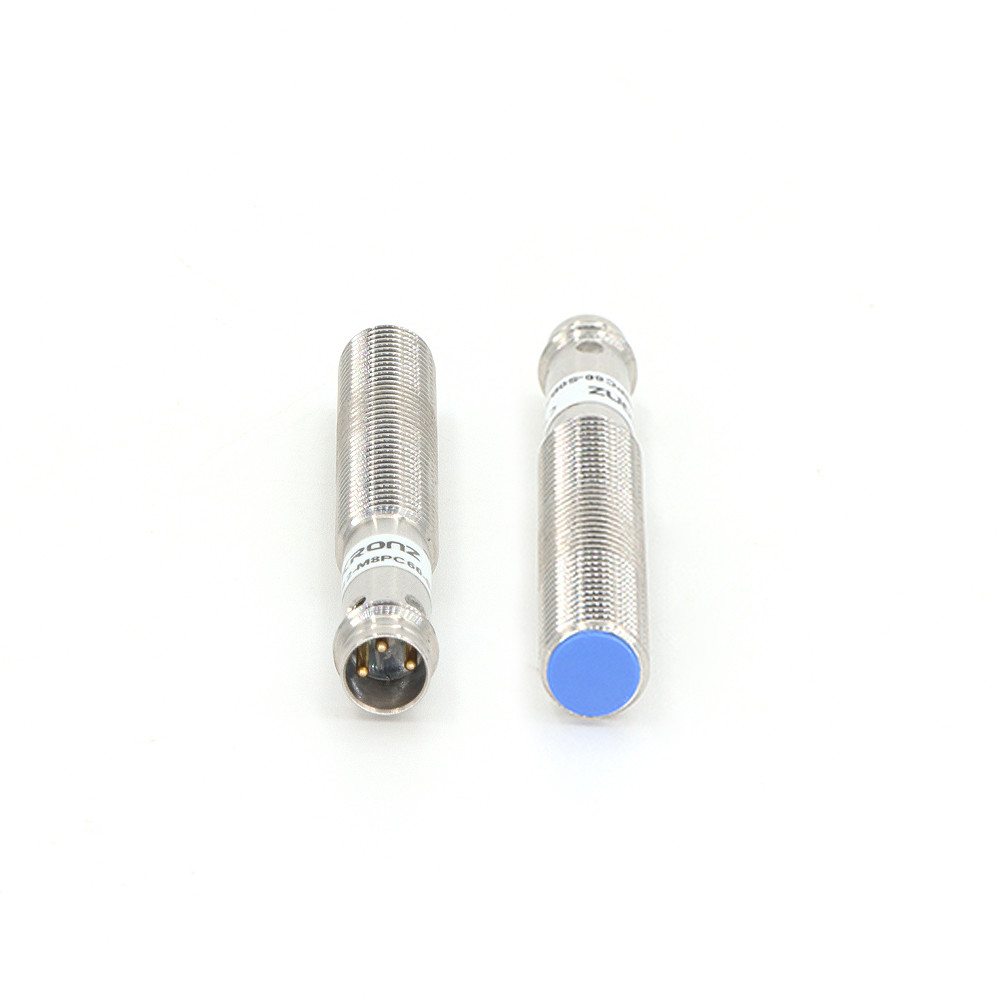

Side View
POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 1
Dimensional Drawing
POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 2
Wiring Diagram
POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 3
Company Information
POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 4 POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 5 POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 6 POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance 7
