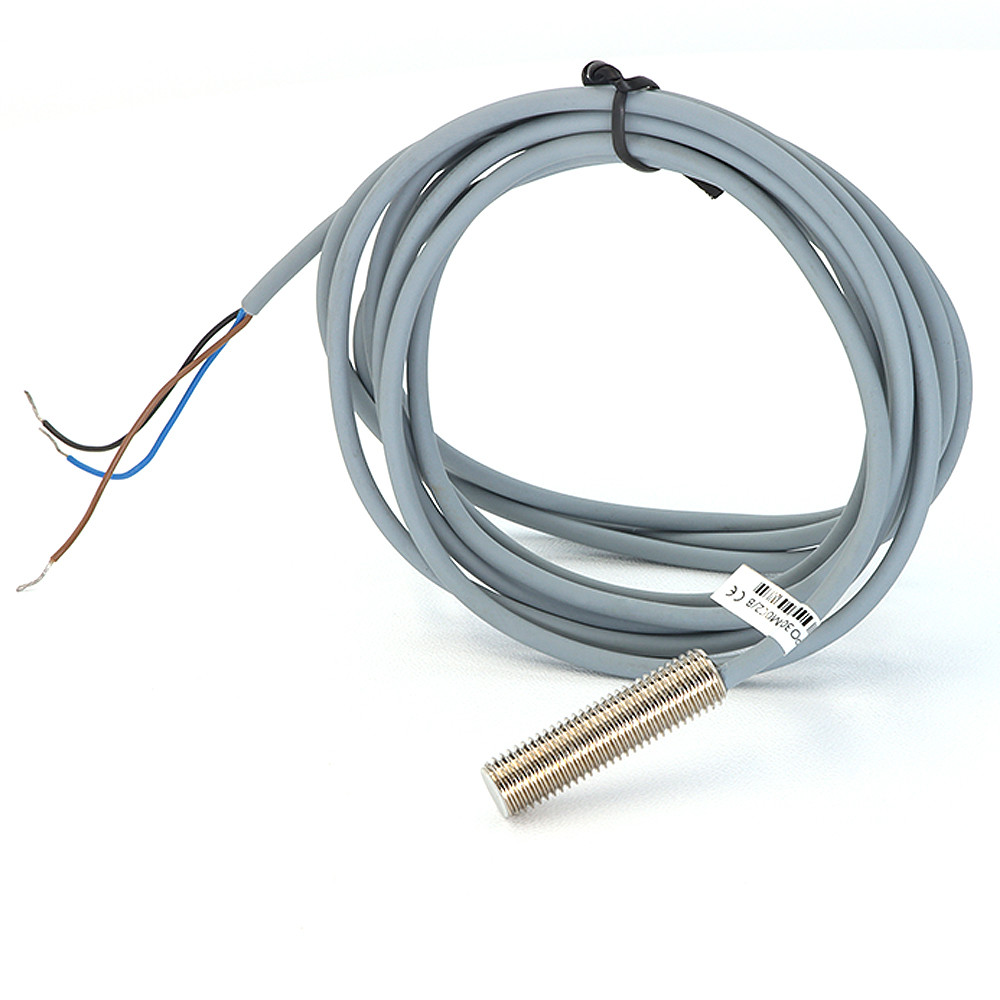

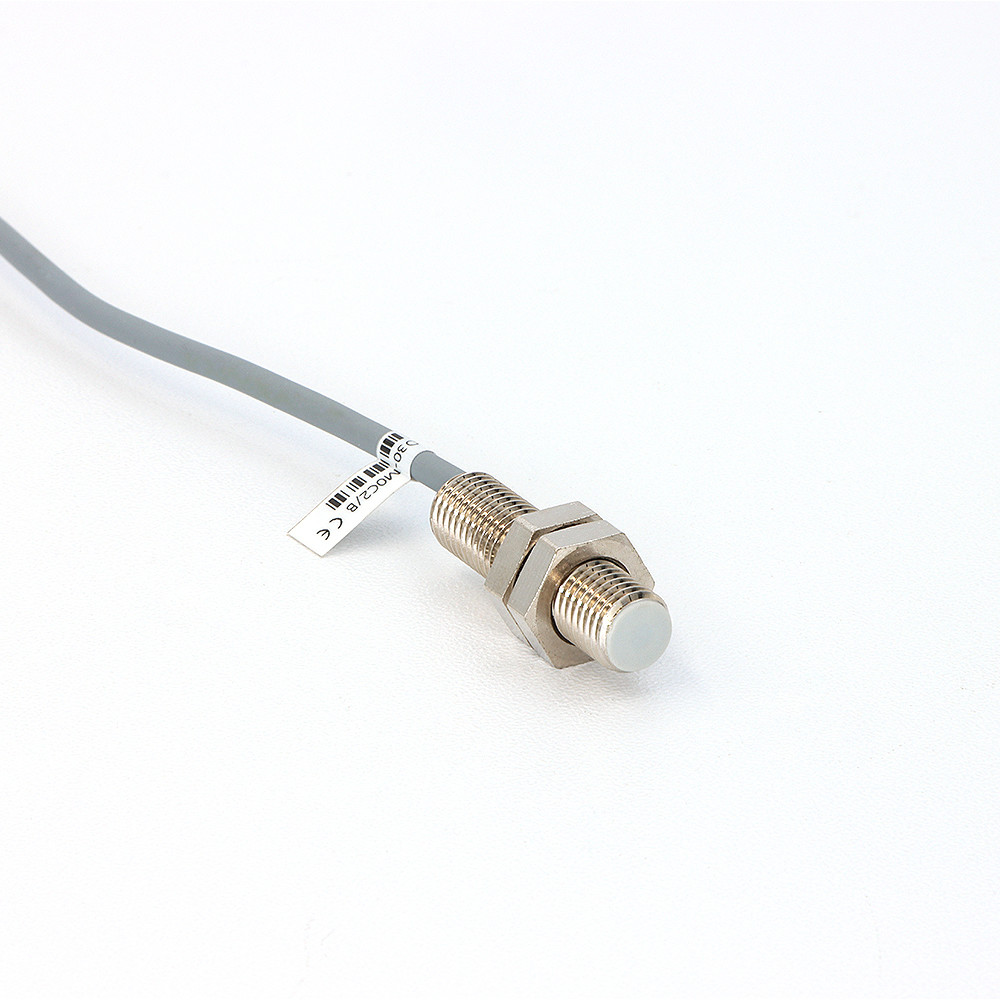

Cylindrical Inductive Proximity Sensors M8 With 2m Cable 3mm PNP NC

Brand Name: KRONZ
Model Number: IS3-M8PC30-S0C2
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Installation Type:
Quasi-flush
LED Display:
Yes
Working Voltage:
10-30VDC
No Load Current:
<10mA
Max. Load Current:
200mA
Switching Frequency:
1kHz
Supply Ability:
100000 pieces per month
Highlight:

Cylindrical Inductive Proximity Sensors

,

2m Cable Inductive Proximity Sensors

,

PNP Inductive Proximity Sensors

Product Description
Cylindrical Inductive Proximity Sensors M8 With 2m Cable 3mm PNP NC
Key Specifications
Attribute Value
Installation Type Quasi-flush
LED Display Yes
Working Voltage 10-30VDC
No Load Current <10mA
Max. Load Current 200mA
Switching Frequency 1kHz
Product Overview
The M8 cylindrical inductive proximity sensor is an essential component in modern industrial automation systems. With its stainless steel housing and reliable performance, it provides accurate position detection for various industrial applications.
Key Features
  • Quasi-flush installation type
  • 3mm sensing range
  • PNP, NC output function
  • 10-30VDC supply voltage
  • 2 meter cable connection
  • Stainless steel housing for durability
  • LED display for status indication
Technical Specifications
Parameter Value
Detection Distance 3mm
Allowable Ripple Voltage <10%
Voltage Drop <1.5V
Response Time 0.2ms
Switched Reluctance <15%sr
Repeat Accuracy <1.0%sr
Protection Grade IP67
Ambient Temperature -25℃ to +70℃
Short-circuit/Reverse Polarity Protection Yes
Overload Current Protection 220mA
Applications
These sensors are widely used in machinery manufacturing for position detection and motion control, including CNC machine tool positioning and automated assembly line operations.
Dimensional Drawing
Cylindrical Inductive Proximity Sensors M8 With 2m Cable 3mm PNP NC 0
Wiring Diagram
Cylindrical Inductive Proximity Sensors M8 With 2m Cable 3mm PNP NC 1
