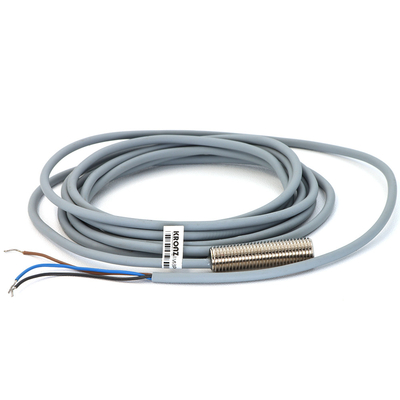

Cylindrical M8 Inductive Sensor NPN NC 10-30VDC 3mm Sensing Range LED Display

Brand Name: KRONZ
Model Number: IS3-M8NC30-S0C2
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
M8 Cylindrical Inductive Senors
Installation Type:
3mm
Repeat Accuracy:
<1.0%sr
Temperature Drift:
<10%sr
Current Drop:
<0.01mA
Ambient Temperature:
-25℃ To +70℃
Supply Ability:
100000 pieces per month
Highlight:

Cylindrical M8 Inductive Sensor NPN

,

NC M8 Inductive Sensor

,

M8 Inductive Sensor 10VDC

Product Description
Cylindrical M8 Inductive Sensor NPN NC 10-30VDC 3mm Sensing Range LED Display
Key Specifications
Attribute Value
Description M8 Cylindrical Inductive Sensors
Installation Type 3mm
Repeat Accuracy <1.0%sr
Temperature Drift <10%sr
Current Drop <0.01mA
Ambient Temperature -25℃ to +70℃
Product Overview

The M8 Cylindrical Inductive Sensor with NPN NC configuration operates at 10-30VDC with a 3mm sensing range and LED display. Ideal for industrial automation applications requiring precise position detection.

Applications
  • Logistics and warehousing: Detects position and movement speed of goods for precise control in transportation systems
  • Identifies presence of goods on shelves to enhance warehousing management efficiency and accuracy
Key Features
  • Installation type: Quasi-flush
  • Sensing range Sn: 3mm
  • Output function: NPN, NC
  • Supply voltage: 10-30VDC
  • Connection type: 2 meter cable
  • Housing material: Stainless steel
Technical Specifications
Installation Type Quasi-flush
Detection Distance 3mm
LED Display Yes
Connection Method 2 meter cable
Shell Material Stainless steel
Working Voltage 10-30VDC
Allowable Ripple Voltage <10%
No Load Current <10mA
Max. load current 200mA
Voltage drop <1.5v
Switching frequency 1kHZ
Response time 0.2ms
Switched Reluctance <15%sr
Repeat Accuracy <1.0%sr
Protection Grade IP67
Ambient temperature -25℃ to +70℃
Temperature Drift <10%sr
Short-circuit Protection/Reverse Polarity Protection Yes
Overload Current Protection 220mA
Sensing Surface Material PBT
Dimensional Drawing
Cylindrical M8 Inductive Sensor NPN NC 10-30VDC 3mm Sensing Range LED Display 0
Detailed dimensional specifications of the M8 sensor
Wiring Diagram
Cylindrical M8 Inductive Sensor NPN NC 10-30VDC 3mm Sensing Range LED Display 1
Proper wiring configuration for installation
