Distributed I/O Module 8 Channels Digital Input Module PNP Input Signal IP20

5 pieces
MOQ
Negotiable
Price

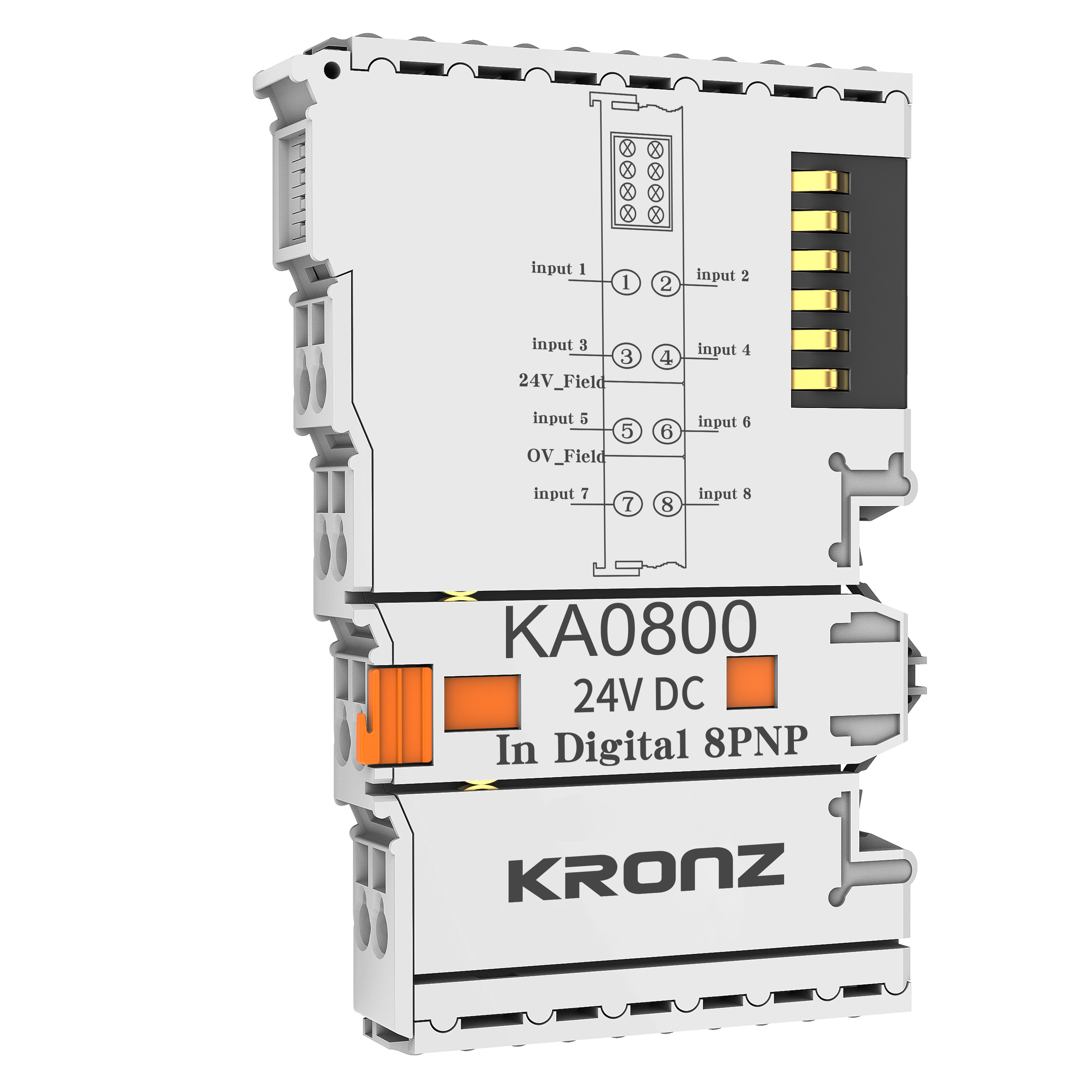

Distributed I/O Module 8 Channels Digital Input Module PNP Input Signal IP20
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Distributes I/O Module
Name: 8 Channels Digital Input Module
Number Of Input Channel: 8
Input Voltage: 24VDC
Input Signal Type: PNP
Input Logic 1 Signal: 10-30V
Debounce Time: 1-10ms
Highlight:

8 Channels Digital Input Module

,

I/O Digital Input Module IP20

,

PNP I/O Digital Input Module
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: KRONZ
Certification: CE
Model Number: KA0800
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Distributed I/O Module 8 Channels Digital Input Module PNP Input Signal IP20
Product Specifications
Attribute Value
Product name Distributes I/O module
Name 8 channels digital input module
Number of input Channel 8
Input Voltage 24VDC
Input Signal Type PNP
Input Logic 1 Signal 10-30V
Debounce Time 1-10ms
Key Features
  • High flexibility: Can be arranged in different locations without distance restrictions
  • Strong scalability: Easy system expansion by adding new modules
  • Accurate data collection: High precision real-time data acquisition
  • Strong anti-interference: Stable operation in harsh industrial environments
Technical Specifications
Product model KA0800
Product Name 8 channels digital input module
Power Specification
Current Consumption 25mA
Input Voltage 24VDC
Allowed Range 24VDC(±25%)
Output Characteristics
Number of Output Channels 8
Input Single Type PNP
Input Rated Voltage 24VDC(±20%)
Input logic 1 signal 15~30V
Input logic 0 signal -3~3V
Debounce time Configurable:1~10ms, Default value 3ms
Typical value of input current 3mA
Isolation and withstand voltage 500V
Isolation method Optocoupler isolation
Physical Property
Dimension 100mm x 68mm x 12mm
Operation Temperature 0~55℃
Storage temperature -25~85℃
Protection Grade IP20
Module Diagrams
Distributed I/O Module 8 Channels Digital Input Module PNP Input Signal IP20 0
Module installation diagram
Distributed I/O Module 8 Channels Digital Input Module PNP Input Signal IP20 1
Module disassembly diagram
Application Scenarios
Distributed I/O Module 8 Channels Digital Input Module PNP Input Signal IP20 2

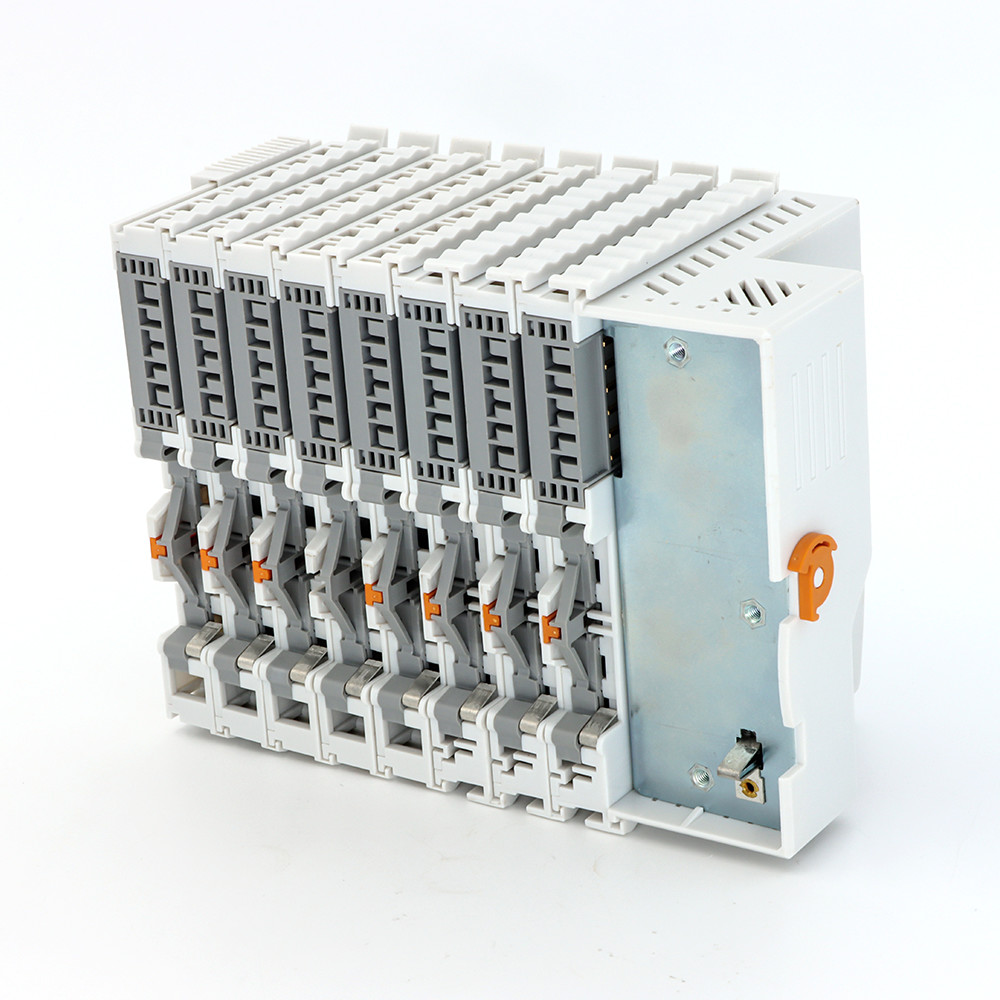

Adapter Connection
Distributed I/O Module 8 Channels Digital Input Module PNP Input Signal IP20 3
