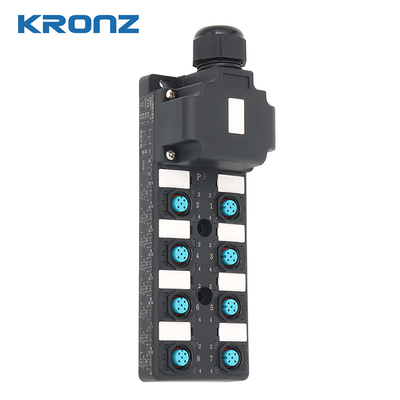

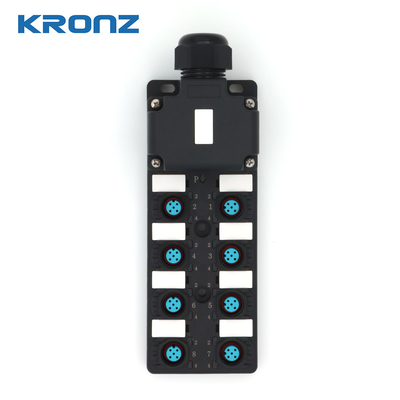

Industrial Distribution Box 8 Port Dual Channel NPN Junction Box M12 Connector

Brand Name: KRONZ
Model Number: MB1208-2N-PCB1
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Paper box packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
8 Position Junction Box
Output:
NPN
Termination:
M12 Connectors
Connector Usage:
Sensor Distributer Box
Voltage - Rated:
24V DC/AC
Current Rating (Amps):
4 A
Supply Ability:
100000 pieces per month
Highlight:

Dual Channel Industrial Distribution Box

,

8 Port Industrial Distribution Box

,

M12 Connector Industrial Distribution Box

Product Description
Industrial Distribution Box 8 Port Dual Channel NPN Junction Box M12 Connector
Product Specifications
Attribute Value
Product name 8 position junction box
Output NPN
Termination M12 connectors
Connector Usage Sensor Distributer Box
Voltage - Rated 24V DC/AC
Current Rating (Amps) 4 A
Product Description

This industrial-grade 8-port distribution box features NPN output and M12 waterproof connectors for reliable performance in demanding environments.


Key Features
  • Easy installation with M12 waterproof connectors
  • Nut fixed terminals for simple, fast connections
  • Crimped terminals suitable for batch connections
  • IP67 protection when connected correctly
  • Green LED power indicator
  • Dual channel operation with clear pin definitions
Technical Specifications
Order Model MB1208-2N-PCB1
Type NPN
M12 Socket Industrial Distribution Box 8 Port Dual Channel NPN Junction Box M12 Connector 0
Rated Power Ue 24V DC/AC
Rated Working Voltage Ub 18...30 V DC
Current load capacity(A) 4 A
Total current(A) 6 A
Power on indicator light Green LED indicator light
Shell protection grade IP67 (when connected correctly)
Dual Channel Configuration
Industrial Distribution Box 8 Port Dual Channel NPN Junction Box M12 Connector 1
Pin Definition LED Display
Pin 1: (+)
Pin 2: (S2)
Pin 3: (-)
Pin 4: (S1)
Pin 5: (PE)		 Power (green)
Signal S1 (yellow)
Signal S2 (white)
Applications

Ideal for industrial equipment requiring waterproof and dustproof connections, including:

  • LED street lights
  • Robotic arms
  • Water level recorders
  • Remote water meters
  • Water quality monitoring systems
  • Navigation equipment
  • Industrial machinery
