Home /Products/Distribution Box/Industrial Distribution Box Dual Channel 8 Position PNP M12 Connector Junction Box

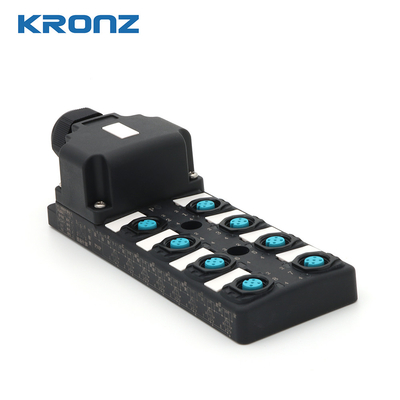

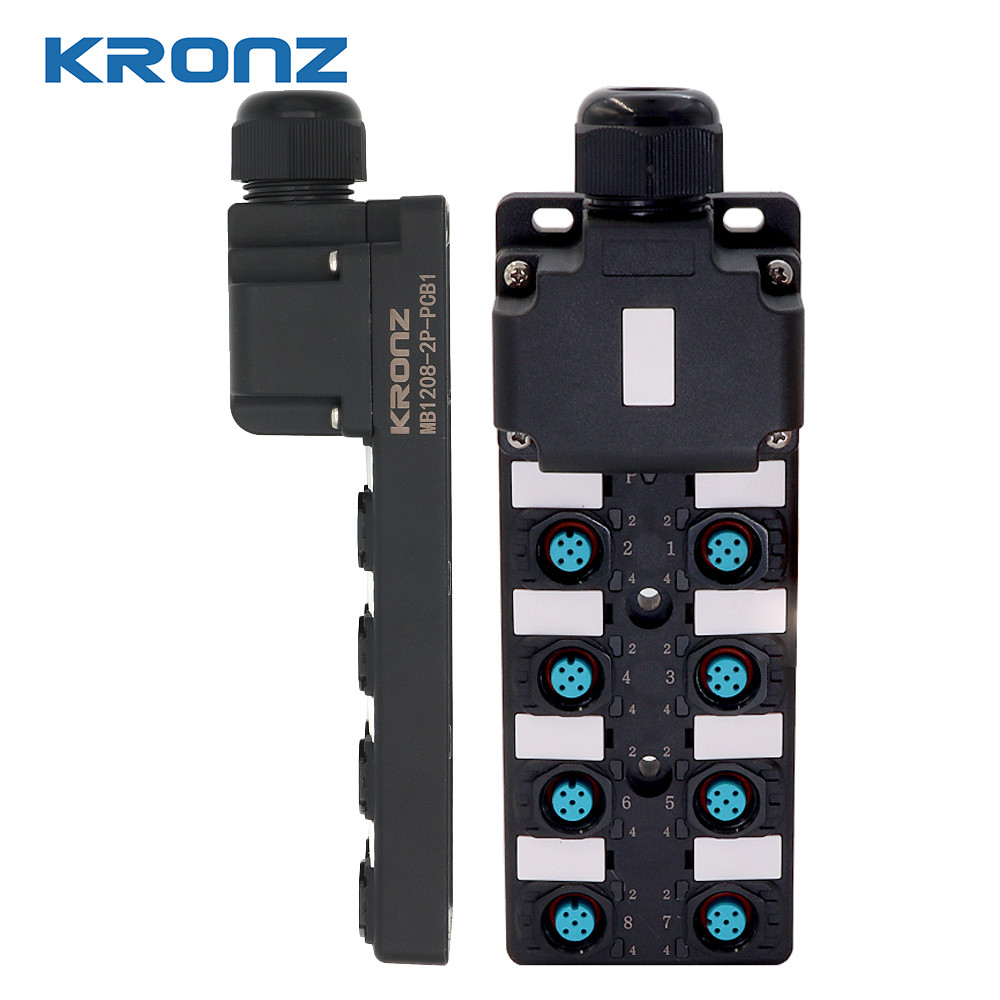

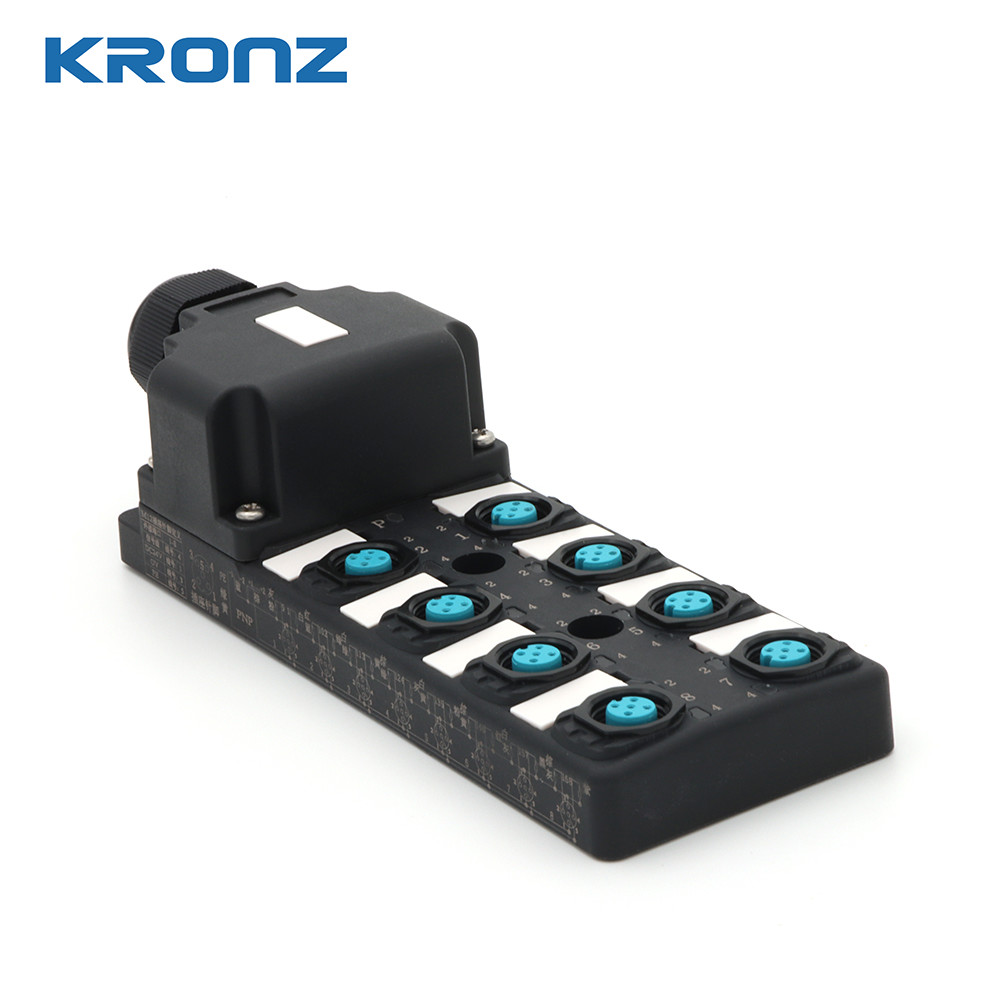

Industrial Distribution Box Dual Channel 8 Position PNP M12 Connector Junction Box

10 pieces
MOQ
Negotiable
Price
Industrial Distribution Box Dual Channel 8 Position PNP M12 Connector Junction Box
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Junction Box
Output: PNP
Termination: M12 Connectors
Type: LED
Voltage - Rated: 24V DC/AC
Connector: PCB
Highlight:

Dual Channel Industrial Distribution Box

,

M12 Industrial Distribution Box

,

8 Position Industrial Distribution Box
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: MB1208-2P-PCB1
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Industrial Distribution Box Dual Channel 8 Position PNP M12 Connector Junction Box
Product Specifications
Attribute Value
Product name Junction box
Output PNP
Termination M12 connectors
Type LED
Voltage - Rated 24V DC/AC
Connector PCB
Product Description

This industrial-grade distribution box features dual channel 8-position PNP configuration with M12 connectors, designed for reliable performance in demanding environments.

The M12 waterproof connectors offer convenient installation with nut-fixed terminals for simple, fast connections and crimped terminals for efficient batch connections. The waterproof connector series is ideal for applications requiring protection against water and dust.

Key Features
  • Wide application range including LED street lights, robotic arms, water level recorders, and industrial equipment
  • Provides safe, reliable connections in harsh environments
  • Dual channel configuration with clear LED indicators
  • IP67 protection rating when connected correctly
Technical Specifications
Order Model MB1208-2P-PCB1
Type PNP
M12 Socket Industrial Distribution Box Dual Channel 8 Position PNP M12 Connector Junction Box 0
Rated Power Ue 24V DC/AC
Rated Working Voltage Ub 18...30 V DC
Current load capacity(A) 4 A
Total current(A) 6 A
Power on indicator light Green LED indicator light
Shell protection grade IP67 (when connected correctly)
Dual Channel Configuration
Industrial Distribution Box Dual Channel 8 Position PNP M12 Connector Junction Box 1
Pin Definition: Pin 1: (+), Pin 2: (S2), Pin 3: (-), Pin 4: (S1), Pin 5: (PE)
LED Display: Power (green), Signal S1 (yellow), Signal S2 (white)
