Brand Name:	KRONZ
Model Number:	CN10-Q20NC-P0C2/D
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Decription:

Capacitive Sensors

Sensing Range:

10mm (non Flush)

Cunstruction Size:

50.5 X 20 X 5.5mm

Shell:

ABS

Switching Frequency:

100Hz

IP Rating:

IP65

Supply Ability:

100000 pieces per month

Highlight:

10mm Sensing Capacitive Sensors

IP65 Capacitive Sensors

Cubic Capacitive Sensors

Product Description

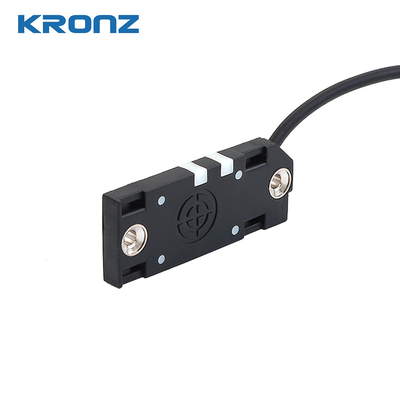

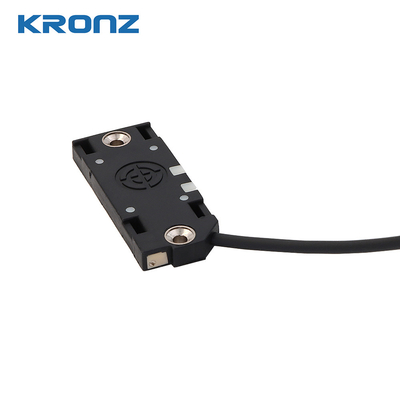

Capacitive Sensors Cubic NPN N.C 10-30VDC Non Flush IP65 10mm Sensing 2m PVC Cable

Product Attributes

Attribute	Value
Description	Capacitive Sensors
Sensing Range	10mm (non flush)
Construction Size	50.5 x 20 x 5.5mm
Shell	ABS
Switching Frequency	100Hz
IP Rating	IP65

Product Description

Sensing range Sn: 10mm (non-flush)
Output function: NPN, N.C
Supply voltage: 10-30VDC
Connection type: 2 meter cable
Housing material: ABS

Technical Specifications

Model: NPN N.C

Construction Size: 10mm (non-flush)

Switching frequency: 100Hz

Operating voltage: 10~30VDC (±10%)

Voltage drop: ≤2VDC

Operating current: ≤200mA

No-load current: ≤20mA (24V)

Hysteresis: <15% (Sr)

Repeat accuracy: <5.0% (Sr)

Protection: Reverse-polarity protection, Power-up pulse protection

Indication: Permanently on: Switching output active

Operating temperature: -10...60°C

IP rating: IP65

Housing material: ABS

Sensing face material: ABS

Connection: Cable connection, 2m PVC, 3*0.35mm²

Dimensional Drawing
