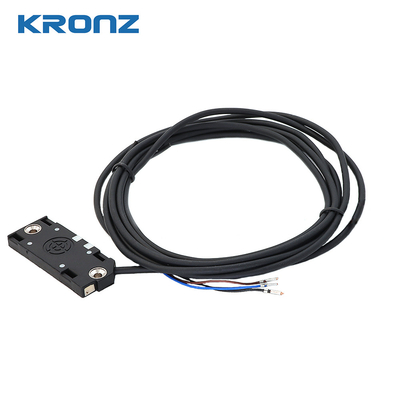

Capacitive Proximity Sensors PNP N.O Cubic 10mm Non Flush IP65 2m PVC Cable IP65

Brand Name:	KRONZ
Model Number:	CN10-Q20PO-P0C2/D
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Name:

Capacitive Proximity Sensors

Sensing Range:

10mm (non Flush)

Operating Current:

≤200mA

No-load Current:

≤20mA(24V)

Operating Temperature:

-10...60°C

Connection:

Cable Connection,2m PVC, 3*0.35mm²

Supply Ability:

100000 pieces per month

Highlight:

PNP Capacitive Proximity Sensors

,

10mm Capacitive Proximity Sensors

,

IP65 Capacitive Proximity Sensors

Product Description

Capacitive Proximity Sensors PNP N.O Cubic 10mm Non Flush IP65 2m PVC Cable IP65

Product Attributes

Attribute	Value
Name	Capacitive Proximity Sensors
Sensing Range	10mm (non flush)
Operating Current	≤200mA
No-load current	≤20mA(24V)
Operating Temperature	-10...60°C
Connection	Cable connection,2m PVC, 3*0.35mm²

Product Description

Sensing range Sn: 10mm (non-flush)
Output function: PNP, N.O
Supply voltage: 10-30VDC
Connection type: 2 m PVC cable, 3*0.35mm²
Housing material: ABS

Technical Data

Model	PNP N.O
Construction Size	10mm(non-flush)
Switching frequency	100Hz
Operating voltage	10~30VDC(±10%)
Voltage drop	≤2VDC
Operating current	≤200mA
No-load current	≤20mA(24V)
Hysteresis	<15%(Sr)
Repeat accuracy	<5.0%(Sr)
Protection	Reverse-polarity protection, Power-up pulse protection
Indication	Permanently on: Switching output active
Operating temperature	-10...60°C
IP rating	IP65
Housing material	ABS
Sensing face material	ABS
Connection	Cable connection,2m PVC, 3*0.35mm²

Dimensional Drawing

Capacitive Proximity Sensors PNP N.O Cubic 10mm Non Flush IP65 2m PVC Cable IP65 0
