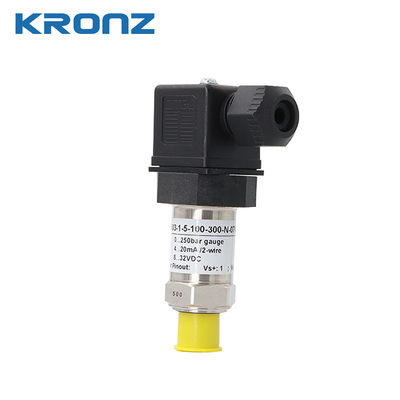

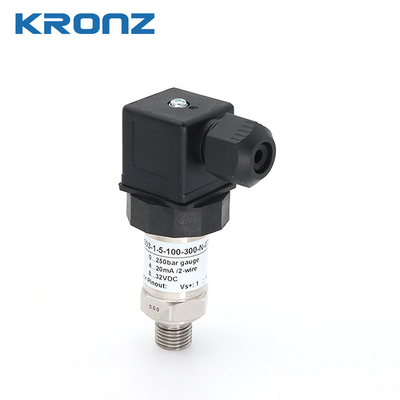

Heavy Load Pressure Transmitter KP30 2wire 4-20mA Welded Stainless Steel Pressure Sensor

Brand Name:	KRONZ
Model Number:	KP30-2503-1-5-100-300-N-070-DB037
MOQ:	5 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Gauge Pressure [bar]:

10/16/20/25/40/60/100/160/250/400/600

Max. Overvoltage(static) [bar]:

20/32/40/50/80/120/200/320/500/800/1200

Bursting Pressure≥ [bar]:

50/80/100/125/200/300/500/800/1400/2000/3000

Vacuum Resistance:

Unlimited

Standard:

2 Wire: 4 ... 20 MA / VS = 8 ... 32 VDC

Response Time:

2 Wire: ≤ 10 Ms

Supply Ability:

100000 pieces per month

Highlight:

20mA Pressure Transmitter

,

2wire Pressure Transmitter

,

Welded Stainless Steel Pressure Transmitter

Product Description

Heavy Load Pressure Transmitter KP30 2wire 4-20mA Welded Stainless Steel Pressure Sensor

Key Specifications

Attribute	Value
Gauge pressure [bar]	10/16/20/25/40/60/100/160/250/400/600
Max. overvoltage(static) [bar]	20/32/40/50/80/120/200/320/500/800/1200
Bursting pressure≥ [bar]	50/80/100/125/200/300/500/800/1400/2000/3000
Vacuum resistance	Unlimited
Standard	2 wire: 4 ... 20 mA / VS = 8 ... 32 VDC
Response time	2 wire: ≤ 10 ms

Applications

Mobile hydraulic station monitoring
Die casting
Various machinery manufacturing
Oxygen environment applications

Technical Data

Parameter	Values [bar]
Gauge Pressure	10 \| 16 \| 20 \| 25 \| 40 \| 60 \| 100 \| 160 \| 250 \| 400 \| 600
Max. Overvoltage (static)	20 \| 32 \| 40 \| 50 \| 80 \| 120 \| 200 \| 320 \| 500 \| 800 \| 1200
Bursting Pressure ≥	50 \| 80 \| 100 \| 125 \| 200 \| 300 \| 500 \| 800 \| 1400 \| 2000 \| 3000
Vacuum Resistance	Unlimited

Heavy Load Pressure Transmitter KP30 2wire 4-20mA Welded Stainless Steel Pressure Sensor 0

Heavy Load Pressure Transmitter KP30 2wire 4-20mA Welded Stainless Steel Pressure Sensor 1

Heavy Load Pressure Transmitter KP30 2wire 4-20mA Welded Stainless Steel Pressure Sensor 2
